vs2019配置点云库PCL1.12.1

news 来源：原创 2025/4/23 6:27:16

首先是下载pcl1.12.1，PCL-1.12.1-AllInOne-msvc2019-win64.exe


链接：https://pan.quark.cn/s/7761e1831616

下载完后，进行安装

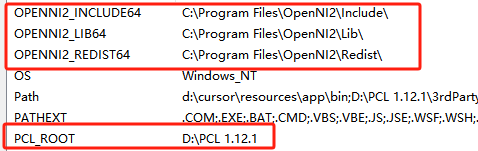

安装完后，路径会自动配置好路径，不需要单独动手去配，安装的时候会配置到路径下的

再在path配置上加上如下路径：

D:\PCL 1.12.1\3rdParty\FLANN\bin

D:\PCL 1.12.1\3rdParty\VTK\bin

二、VS2019配置。

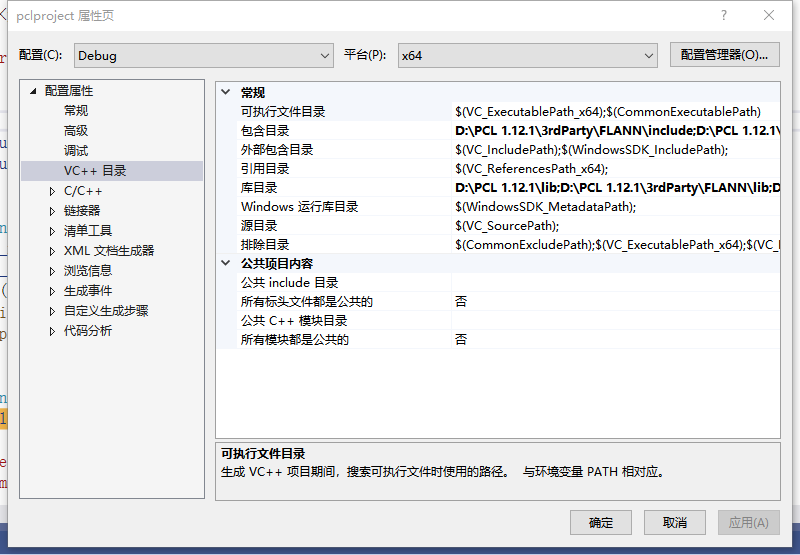

在包含目录进行配置：

D:\PCL 1.12.1\3rdParty\Eigen\eigen3
D:\PCL 1.12.1\3rdParty\FLANN\include
D:\PCL 1.12.1\3rdParty\VTK\include\vtk-9.1
D:\PCL 1.12.1\3rdParty\Qhull\include
D:\PCL 1.12.1\include\pcl-1.12
D:\PCL 1.12.1\3rdParty\Boost\include\boost-1_78
D:\PCL 1.12.1\3rdParty\OpenNI2\Include

在库路径下进行配置：

D:\PCL 1.12.1\3rdParty\Boost\lib
D:\PCL 1.12.1\3rdParty\FLANN\lib
D:\PCL 1.12.1\3rdParty\OpenNI2\Lib
D:\PCL 1.12.1\3rdParty\Qhull\lib
D:\PCL 1.12.1\3rdParty\VTK\lib
D:\PCL 1.12.1\lib

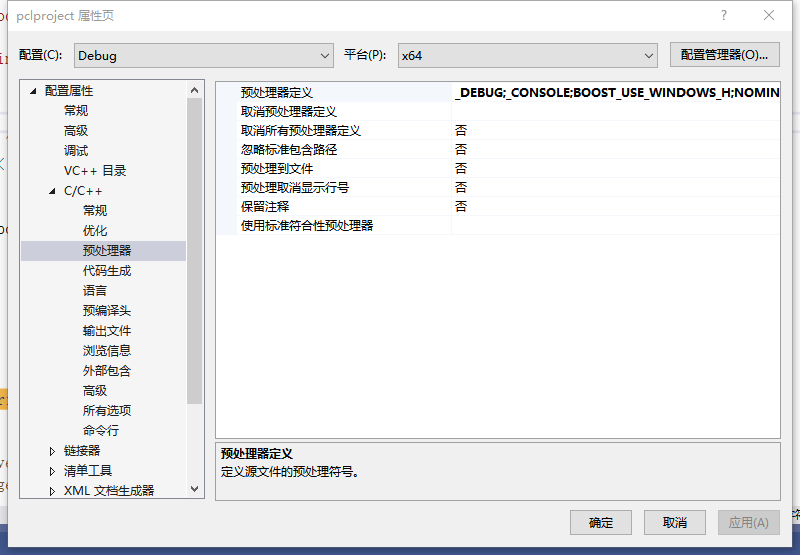

添加预处理器：

_DEBUG
_CONSOLE
BOOST_USE_WINDOWS_H
NOMINMAX
_CRT_SECURE_NO_DEPERCATE

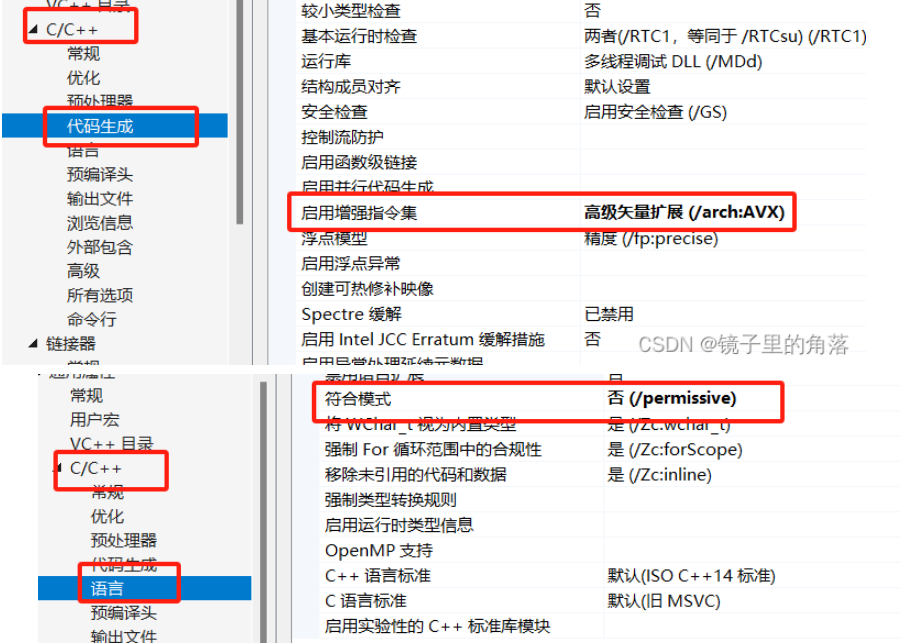

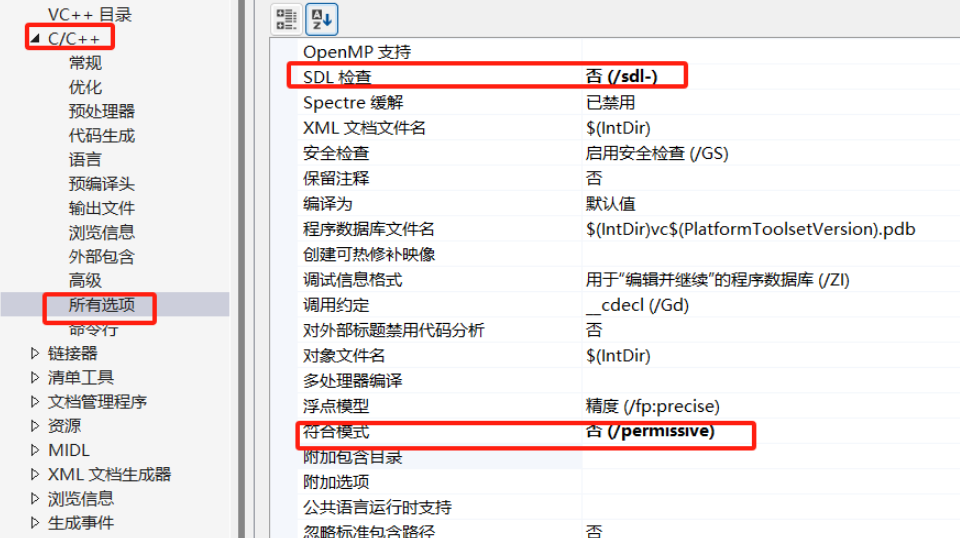

 接着如下进行设置：

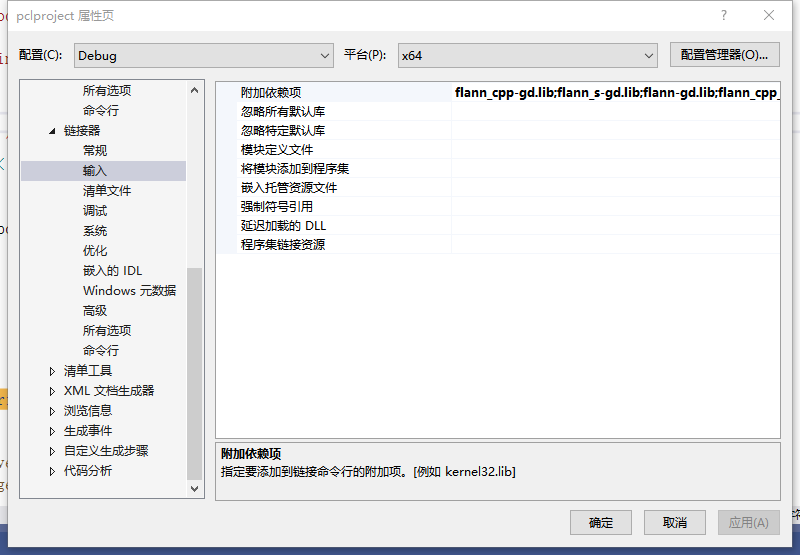

接着链接器的配置



flann-gd.lib
flann_cpp-gd.lib
flann_cpp_s-gd.lib
flann_s-gd.lib
pcl_commond.lib
pcl_featuresd.lib
pcl_filtersd.lib
pcl_iod.lib
pcl_io_plyd.lib
pcl_kdtreed.lib
pcl_keypointsd.lib
pcl_mld.lib
pcl_octreed.lib
pcl_outofcored.lib
pcl_peopled.lib
pcl_recognitiond.lib
pcl_registrationd.lib
pcl_sample_consensusd.lib
pcl_searchd.lib
pcl_segmentationd.lib
pcl_stereod.lib
pcl_surfaced.lib
pcl_trackingd.lib
pcl_visualizationd.lib
libboost_atomic-vc142-mt-gd-x64-1_78.lib
libboost_bzip2-vc142-mt-gd-x64-1_78.lib
libboost_chrono-vc142-mt-gd-x64-1_78.lib
libboost_container-vc142-mt-gd-x64-1_78.lib
libboost_context-vc142-mt-gd-x64-1_78.lib
libboost_contract-vc142-mt-gd-x64-1_78.lib
libboost_coroutine-vc142-mt-gd-x64-1_78.lib
libboost_date_time-vc142-mt-gd-x64-1_78.lib
libboost_exception-vc142-mt-gd-x64-1_78.lib
libboost_filesystem-vc142-mt-gd-x64-1_78.lib
libboost_graph-vc142-mt-gd-x64-1_78.lib
libboost_graph_parallel-vc142-mt-gd-x64-1_78.lib
libboost_iostreams-vc142-mt-gd-x64-1_78.lib
libboost_json-vc142-mt-gd-x64-1_78.lib
libboost_locale-vc142-mt-gd-x64-1_78.lib
libboost_log-vc142-mt-gd-x64-1_78.lib
libboost_log_setup-vc142-mt-gd-x64-1_78.lib
libboost_math_c99-vc142-mt-gd-x64-1_78.lib
libboost_math_c99f-vc142-mt-gd-x64-1_78.lib
libboost_math_c99l-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1f-vc142-mt-gd-x64-1_78.lib
libboost_math_tr1l-vc142-mt-gd-x64-1_78.lib
libboost_mpi-vc142-mt-gd-x64-1_78.lib
libboost_nowide-vc142-mt-gd-x64-1_78.lib
libboost_numpy38-vc142-mt-gd-x64-1_78.lib
libboost_prg_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_program_options-vc142-mt-gd-x64-1_78.lib
libboost_python38-vc142-mt-gd-x64-1_78.lib
libboost_random-vc142-mt-gd-x64-1_78.lib
libboost_regex-vc142-mt-gd-x64-1_78.lib
libboost_serialization-vc142-mt-gd-x64-1_78.lib
libboost_system-vc142-mt-gd-x64-1_78.lib
libboost_test_exec_monitor-vc142-mt-gd-x64-1_78.lib
libboost_thread-vc142-mt-gd-x64-1_78.lib
libboost_timer-vc142-mt-gd-x64-1_78.lib
libboost_type_erasure-vc142-mt-gd-x64-1_78.lib
libboost_unit_test_framework-vc142-mt-gd-x64-1_78.lib
libboost_wave-vc142-mt-gd-x64-1_78.lib
libboost_wserialization-vc142-mt-gd-x64-1_78.lib
libboost_zlib-vc142-mt-gd-x64-1_78.lib
OpenNI2.lib
qhullcpp_d.lib
qhullstatic_d.lib
qhullstatic_rd.lib
qhull_rd.lib
vtkcgns-9.1d.lib
vtkChartsCore-9.1d.lib
vtkCommonColor-9.1d.lib
vtkCommonComputationalGeometry-9.1d.lib
vtkCommonCore-9.1d.lib
vtkCommonDataModel-9.1d.lib
vtkCommonExecutionModel-9.1d.lib
vtkCommonMath-9.1d.lib
vtkCommonMisc-9.1d.lib
vtkCommonSystem-9.1d.lib
vtkCommonTransforms-9.1d.lib
vtkDICOMParser-9.1d.lib
vtkDomainsChemistry-9.1d.lib
vtkDomainsChemistryOpenGL2-9.1d.lib
vtkdoubleconversion-9.1d.lib
vtkexodusII-9.1d.lib
vtkexpat-9.1d.lib
vtkFiltersAMR-9.1d.lib
vtkFiltersCore-9.1d.lib
vtkFiltersExtraction-9.1d.lib
vtkFiltersFlowPaths-9.1d.lib
vtkFiltersGeneral-9.1d.lib
vtkFiltersGeneric-9.1d.lib
vtkFiltersGeometry-9.1d.lib
vtkFiltersHybrid-9.1d.lib
vtkFiltersHyperTree-9.1d.lib
vtkFiltersImaging-9.1d.lib
vtkFiltersModeling-9.1d.lib
vtkFiltersParallel-9.1d.lib
vtkFiltersParallelImaging-9.1d.lib
vtkFiltersPoints-9.1d.lib
vtkFiltersProgrammable-9.1d.lib
vtkFiltersSelection-9.1d.lib
vtkFiltersSMP-9.1d.lib
vtkFiltersSources-9.1d.lib
vtkFiltersStatistics-9.1d.lib
vtkFiltersTexture-9.1d.lib
vtkFiltersTopology-9.1d.lib
vtkFiltersVerdict-9.1d.lib
vtkfmt-9.1d.lib
vtkfreetype-9.1d.lib
vtkGeovisCore-9.1d.lib
vtkgl2ps-9.1d.lib
vtkglew-9.1d.lib
vtkhdf5-9.1d.lib
vtkhdf5_hl-9.1d.lib
vtkImagingColor-9.1d.lib
vtkImagingCore-9.1d.lib
vtkImagingFourier-9.1d.lib
vtkImagingGeneral-9.1d.lib
vtkImagingHybrid-9.1d.lib
vtkImagingMath-9.1d.lib
vtkImagingMorphological-9.1d.lib
vtkImagingSources-9.1d.lib
vtkImagingStatistics-9.1d.lib
vtkImagingStencil-9.1d.lib
vtkInfovisCore-9.1d.lib
vtkInfovisLayout-9.1d.lib
vtkInteractionImage-9.1d.lib
vtkInteractionStyle-9.1d.lib
vtkInteractionWidgets-9.1d.lib
vtkIOAMR-9.1d.lib
vtkIOAsynchronous-9.1d.lib
vtkIOCGNSReader-9.1d.lib
vtkIOChemistry-9.1d.lib
vtkIOCityGML-9.1d.lib
vtkIOCONVERGECFD-9.1d.lib
vtkIOCore-9.1d.lib
vtkIOEnSight-9.1d.lib
vtkIOExodus-9.1d.lib
vtkIOExport-9.1d.lib
vtkIOExportGL2PS-9.1d.lib
vtkIOExportPDF-9.1d.lib
vtkIOGeometry-9.1d.lib
vtkIOHDF-9.1d.lib
vtkIOImage-9.1d.lib
vtkIOImport-9.1d.lib
vtkIOInfovis-9.1d.lib
vtkIOIOSS-9.1d.lib
vtkIOLegacy-9.1d.lib
vtkIOLSDyna-9.1d.lib
vtkIOMINC-9.1d.lib
vtkIOMotionFX-9.1d.lib
vtkIOMovie-9.1d.lib
vtkIONetCDF-9.1d.lib
vtkIOOggTheora-9.1d.lib
vtkIOParallel-9.1d.lib
vtkIOParallelXML-9.1d.lib
vtkIOPLY-9.1d.lib
vtkIOSegY-9.1d.lib
vtkIOSQL-9.1d.lib
vtkioss-9.1d.lib
vtkIOTecplotTable-9.1d.lib
vtkIOVeraOut-9.1d.lib
vtkIOVideo-9.1d.lib
vtkIOXML-9.1d.lib
vtkIOXMLParser-9.1d.lib
vtkjpeg-9.1d.lib
vtkjsoncpp-9.1d.lib
vtkkissfft-9.1d.lib
vtklibharu-9.1d.lib
vtklibproj-9.1d.lib
vtklibxml2-9.1d.lib
vtkloguru-9.1d.lib
vtklz4-9.1d.lib
vtklzma-9.1d.lib
vtkmetaio-9.1d.lib
vtknetcdf-9.1d.lib
vtkogg-9.1d.lib
vtkParallelCore-9.1d.lib
vtkParallelDIY-9.1d.lib
vtkpng-9.1d.lib
vtkpugixml-9.1d.lib
vtkRenderingAnnotation-9.1d.lib
vtkRenderingContext2D-9.1d.lib
vtkRenderingContextOpenGL2-9.1d.lib
vtkRenderingCore-9.1d.lib
vtkRenderingFreeType-9.1d.lib
vtkRenderingGL2PSOpenGL2-9.1d.lib
vtkRenderingImage-9.1d.lib
vtkRenderingLabel-9.1d.lib
vtkRenderingLOD-9.1d.lib
vtkRenderingOpenGL2-9.1d.lib
vtkRenderingSceneGraph-9.1d.lib
vtkRenderingUI-9.1d.lib
vtkRenderingVolume-9.1d.lib
vtkRenderingVolumeOpenGL2-9.1d.lib
vtkRenderingVtkJS-9.1d.lib
vtksqlite-9.1d.lib
vtksys-9.1d.lib
vtkTestingRendering-9.1d.lib
vtktheora-9.1d.lib
vtktiff-9.1d.lib
vtkverdict-9.1d.lib
vtkViewsContext2D-9.1d.lib
vtkViewsCore-9.1d.lib
vtkViewsInfovis-9.1d.lib
vtkWrappingTools-9.1d.lib
vtkzlib-9.1d.lib

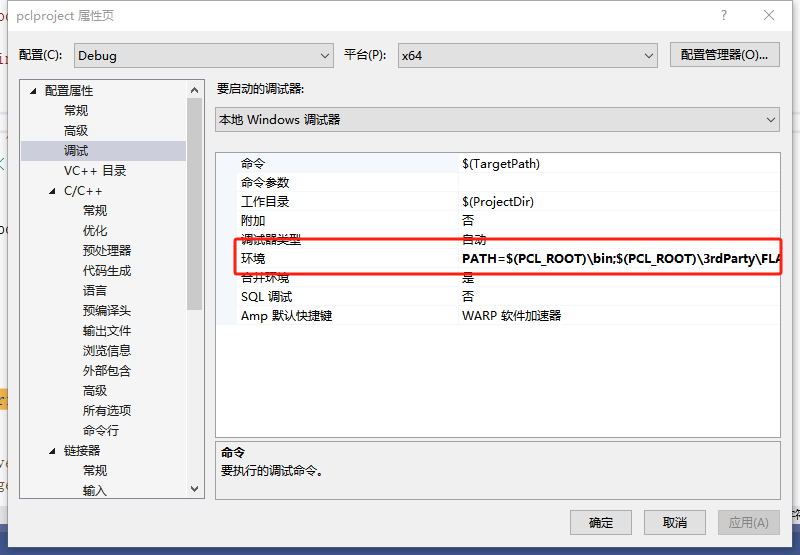

调试（重点）

PATH=$(PCL_ROOT)\bin;$(PCL_ROOT)\3rdParty\FLANN\bin;$(PCL_ROOT)\3rdParty\VTK\bin;$(PCL_ROOT)\Qhull\bin;$(PCL_ROOT)\3rdParty\OpenNI2\Tools;$(PATH)

均配置完就可以正常使用了，

注意flann的库最好往前放。
