实操基于MCP驱动的 Agentic RAG:智能调度向量召回或者网络检索

news 来源：原创 2025/4/21 6:24:49

我们展示了一个由 MCP 驱动的 Agentic RAG，它会搜索向量数据库，当然如果有需要他会自行进行网络搜索。

为了构建这个系统，我们将使用以下工具：

博查搜索 用于大规模抓取网络数据。
作为Faiss向量数据库。
Cursor 作为 MCP 客户端。

以下是工作流程：

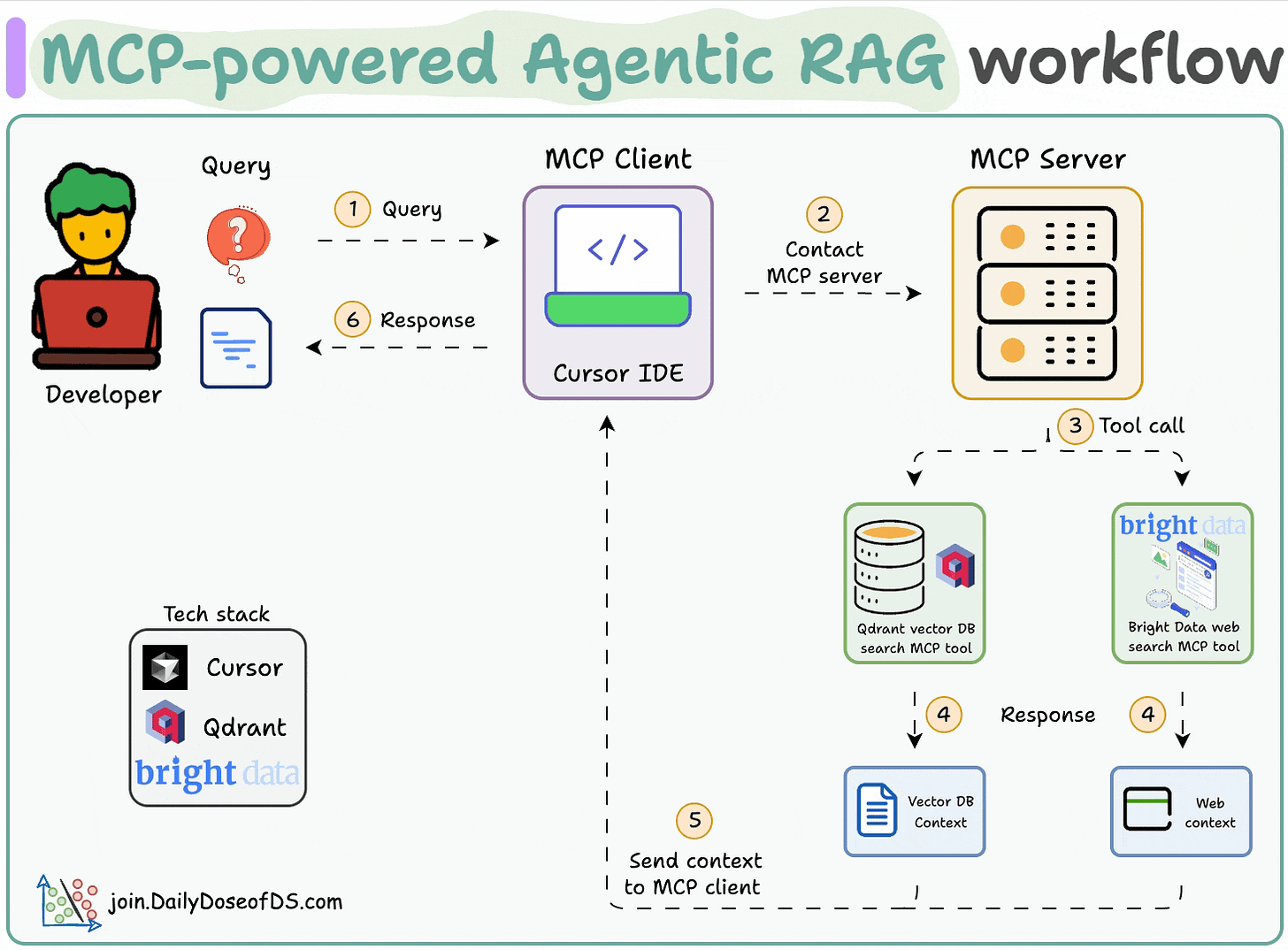

工作流程图
工作流程：

1. 用户通过 MCP 客户端（Cursor）输入查询。
2-3客户端联系 MCP 服务器以选择相关工具。
4-6工具输出返回到客户端以生成响应。

环境准备

设置与安装

获取 BrightData API 密钥：

访问 Bright Data 并注册一个账户。
选择“代理与抓取”并创建一个新的“搜索引擎结果页面 (SERP) API”。
选择“原生代理访问”。
您将在那里找到您的用户名和密码。
将其存储在 .env 文件中。
- 国内最好还是利用国内的搜索引擎比如博查搜索

BRIGHDATA_USERNAME="..."
BRIGHDATA_PASSWORD="..."

安装依赖项：
确保您已安装 Python 3.11 或更高版本。

pip install mcp qdrant-client

运行项目

首先，按如下方式启动一个 Qdrant Docker 容器（确保您已下载 Docker）：

 docker run -p 6333:6333 -p 6334:6334 \-v $(pwd)/qdrant_storage:/qdrant/storage:z \qdrant/qdrant

接下来，运行代码在向量数据库中创建一个集合。

配置MCP服务

最后，按如下方式设置您的本地 MCP 服务器：

转到 Cursor 设置。
选择 MCP。
添加新的全局 MCP 服务器。

在 JSON 文件中添加以下内容：

{"mcpServers": {"mcp-rag-app": {"command": "python","args": ["/absolute/path/to/server.py"],"host": "127.0.0.1","port": 8080,"timeout": 30000}}
}

完成！您现在可以与向量数据库进行交互，并在需要时使用网络搜索作为后备方案。
本文将提供的完整的源代码工大家参考练习。

让我们开始实现吧！

1.启动一个 MCP 服务器

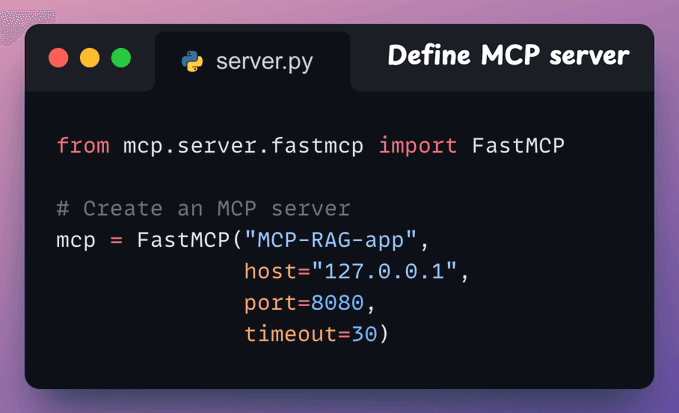

首先，我们定义一个带有主机 URL 和端口的 MCP 服务器。

MCP 服务器代码

2.向量数据库 MCP 工具

通过 MCP 服务器暴露的工具有两个要求：

工具要求代码

必须使用“tool”装饰器进行装饰。
必须有清晰的文档字符串。

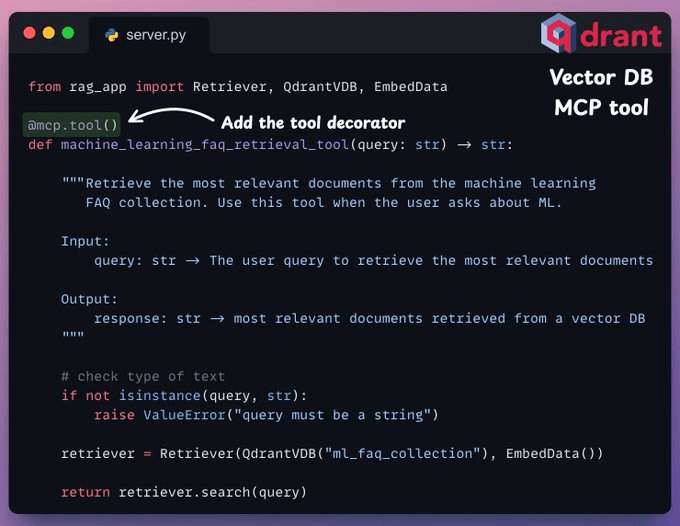

在下面的代码中，我们有一个用于查询向量数据库的 MCP 工具。它存储了与机器学习相关的常见问题解答。

3.网络搜索 MCP 工具

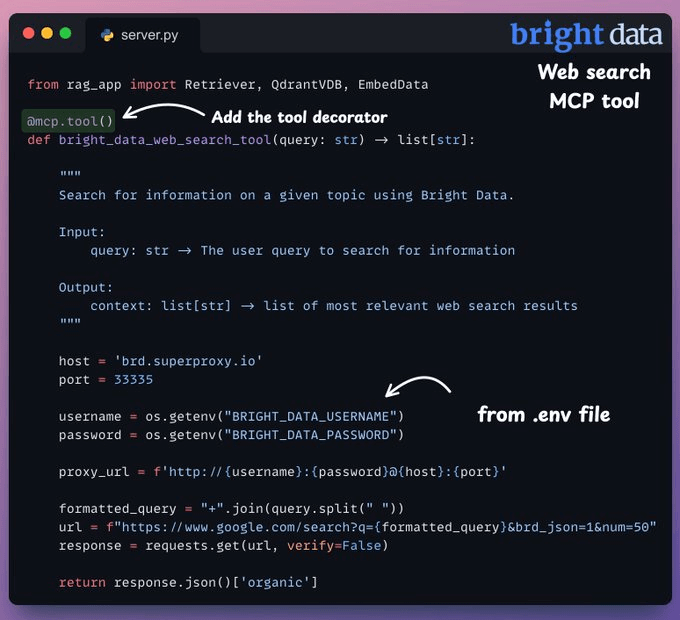

网络搜索工具代码

如果查询与机器学习无关，我们需要一个回退机制。

因此，我们使用 Bright Data 的 SERP API 进行网络搜索，以从多个来源抓取数据，获取相关上下文。

4.将 MCP 服务器与 Cursor 集成

在我们的设置中，Cursor 是一个使用 MCP 服务器暴露的工具的 MCP 客户端。

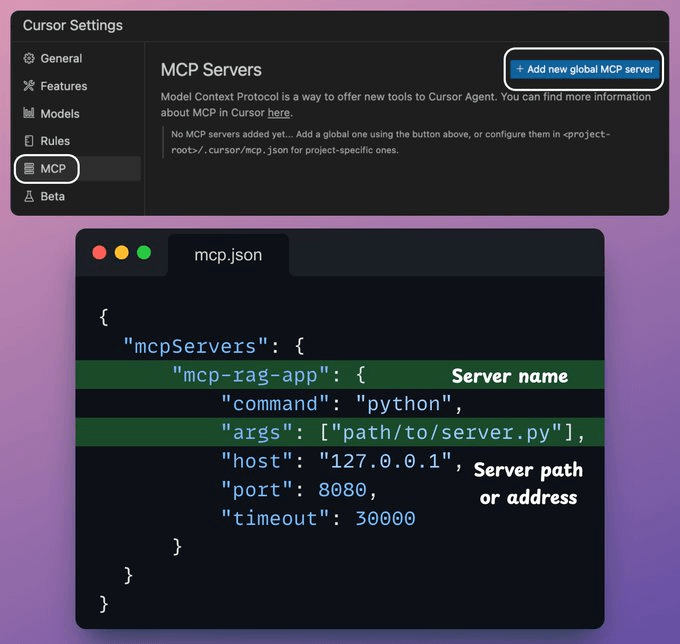

要集成 MCP 服务器，请转到设置 → MCP → 添加新的全局 MCP 服务器。

在 JSON 文件中，添加如下内容👇

JSON 文件内容

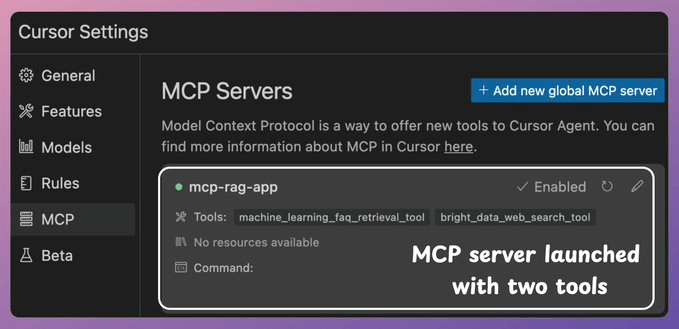

搞定啦！你的本地 MCP 服务器已经启动并且与 Cursor 连接成功🚀！

它有两个 MCP 工具：

工具列表

Bright Data 网络搜索工具，用于大规模抓取数据。
向量数据库搜索工具，用于查询相关文档。

接下来，我们与 MCP 服务器进行交互。
视频截图

当我们提出与机器学习相关的查询时，它会调用向量数据库工具。这是一个标准RAG召回。
但是当我们提出一个通用查询时，它会调用博查搜索网络搜索工具，从多个来源收集网络数据。

当代理使用工具时，它们会遇到诸如 IP 封锁、机器人流量、验证码破解等问题。这些问题会阻碍代理的执行。

为了解决这个问题，我们在这个演示中使用了博查搜索。

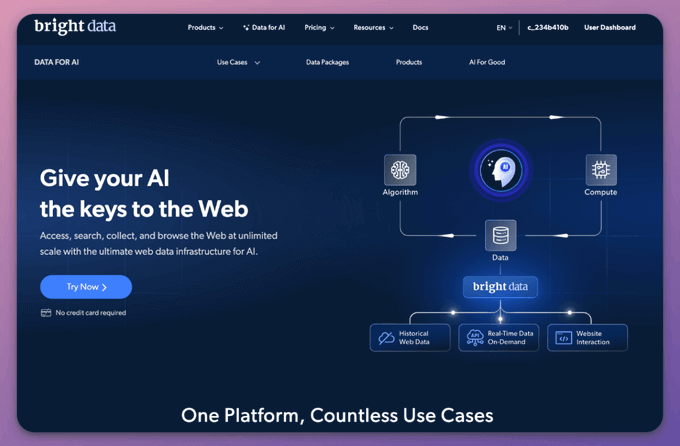

它可以让您：

Bright Data 功能

在不被封锁的情况下为代理大规模抓取数据。
使用高级浏览器工具模拟用户行为。
使用实时和历史网络数据构建代理应用程序。

详细代码

server.py

# server.py
from mcp.server.fastmcp import FastMCP
from rag_code import *# Create an MCP server
mcp = FastMCP("MCP-RAG-app",host="127.0.0.1",port=8080,timeout=30)@mcp.tool()
def machine_learning_faq_retrieval_tool(query: str) -> str:"""Retrieve the most relevant documents from the machine learningFAQ collection. Use this tool when the user asks about ML.Input:query: str -> The user query to retrieve the most relevant documentsOutput:context: str -> most relevant documents retrieved from a vector DB"""# check type of textif not isinstance(query, str):raise ValueError("query must be a string")retriever = Retriever(QdrantVDB("ml_faq_collection"), EmbedData())response = retriever.search(query)return response@mcp.tool()
def bright_data_web_search_tool(query: str) -> list[str]:"""Search for information on a given topic using Bright Data.Use this tool when the user asks about a specific topic or question that is not related to general machine learning.Input:query: str -> The user query to search for informationOutput:context: list[str] -> list of most relevant web search results"""# check type of textif not isinstance(query, str):raise ValueError("query must be a string")import osimport requestsimport jsonfrom dotenv import load_dotenv# Load environment variablesload_dotenv()# 博查搜索 API 配置url = "https://api.bochaai.com/v1/web-search"api_key = os.getenv("BOCHAAI_API_KEY")if not api_key:raise ValueError("请在 .env 文件中设置 BOCHAAI_API_KEY")payload = json.dumps({"query": query,"summary": True,"count": 10,"page": 1})headers = {'Authorization': f'Bearer {api_key}','Content-Type': 'application/json'}response = requests.request("POST", url, headers=headers, data=payload)# Return organic search resultsreturn response.json()['organic']if __name__ == "__main__":print("Starting MCP server at http://127.0.0.1:8080 on port 8080")mcp.run()

rag.py

from llama_index.embeddings.huggingface import HuggingFaceEmbedding
from tqdm import tqdm
from fasiimcp import FasiClient, FasiConfigfaq_text = """Question 1: What is the first step before building a machine learning model?
Answer 1: Understand the problem, define the objective, and identify the right metrics for evaluation.Question 2: How important is data cleaning in ML?
Answer 2: Extremely important. Clean data improves model performance and reduces the chance of misleading results.Question 3: Should I normalize or standardize my data?
Answer 3: Yes, especially for models sensitive to feature scales like SVMs, KNN, and neural networks.Question 4: When should I use feature engineering?
Answer 4: Always consider it. Well-crafted features often yield better results than complex models.Question 5: How to handle missing values?
Answer 5: Use imputation techniques like mean/median imputation, or model-based imputation depending on the context.Question 6: Should I balance my dataset for classification tasks?
Answer 6: Yes, especially if the classes are imbalanced. Techniques include resampling, SMOTE, and class-weighting.Question 7: How do I select features for my model?
Answer 7: Use domain knowledge, correlation analysis, or techniques like Recursive Feature Elimination or SHAP values.Question 8: Is it good to use all features available?
Answer 8: Not always. Irrelevant or redundant features can reduce performance and increase overfitting.Question 9: How do I avoid overfitting?
Answer 9: Use techniques like cross-validation, regularization, pruning (for trees), and dropout (for neural nets).Question 10: Why is cross-validation important?
Answer 10: It provides a more reliable estimate of model performance by reducing bias from a single train-test split.Question 11: What’s a good train-test split ratio?
Answer 11: Common ratios are 80/20 or 70/30, but use cross-validation for more robust evaluation.Question 12: Should I tune hyperparameters?
Answer 12: Yes. Use grid search, random search, or Bayesian optimization to improve model performance.Question 13: What’s the difference between training and validation sets?
Answer 13: Training set trains the model, validation set tunes hyperparameters, and test set evaluates final performance.Question 14: How do I know if my model is underfitting?
Answer 14: It performs poorly on both training and test sets, indicating it hasn’t learned patterns well.Question 15: What are signs of overfitting?
Answer 15: High accuracy on training data but poor generalization to test or validation data.Question 16: Is ensemble modeling useful?
Answer 16: Yes. Ensembles like Random Forests or Gradient Boosting often outperform individual models.Question 17: When should I use deep learning?
Answer 17: Use it when you have large datasets, complex patterns, or tasks like image and text processing.Question 18: What is data leakage and how to avoid it?
Answer 18: Data leakage is using future or target-related information during training. Avoid by carefully splitting and preprocessing.Question 19: How do I measure model performance?
Answer 19: Choose appropriate metrics: accuracy, precision, recall, F1, ROC-AUC for classification; RMSE, MAE for regression.Question 20: Why is model interpretability important?
Answer 20: It builds trust, helps debug, and ensures compliance—especially important in high-stakes domains like healthcare.
"""new_faq_text = [i.replace("\n", " ") for i in faq_text.split("\n\n")]
def batch_iterate(lst, batch_size):for i in range(0, len(lst), batch_size):yield lst[i : i + batch_size]class EmbedData:def __init__(self, embed_model_name="nomic-ai/nomic-embed-text-v1.5",batch_size=32):self.embed_model_name = embed_model_nameself.embed_model = self._load_embed_model()self.batch_size = batch_sizeself.embeddings = []def _load_embed_model(self):embed_model = HuggingFaceEmbedding(model_name=self.embed_model_name,trust_remote_code=True,cache_folder='./hf_cache')return embed_modeldef generate_embedding(self, context):return self.embed_model.get_text_embedding_batch(context)def embed(self, contexts):self.contexts = contextsfor batch_context in tqdm(batch_iterate(contexts, self.batch_size),total=len(contexts)//self.batch_size,desc="Embedding data in batches"):batch_embeddings = self.generate_embedding(batch_context)self.embeddings.extend(batch_embeddings)class FasiiVDB:def __init__(self, collection_name, vector_dim=768, batch_size=512):self.collection_name = collection_nameself.batch_size = batch_sizeself.vector_dim = vector_dimself.config = FasiConfig(url="http://localhost:6333")self.client = FasiClient(self.config)def create_collection(self):if not self.client.collection_exists(self.collection_name):self.client.create_collection(self.collection_name, self.vector_dim)def ingest_data(self, embeddata):for batch_context, batch_embeddings in tqdm(zip(batch_iterate(embeddata.contexts, self.batch_size), batch_iterate(embeddata.embeddings, self.batch_size)), total=len(embeddata.contexts)//self.batch_size, desc="Ingesting in batches"):self.client.upload_vectors(self.collection_name, batch_embeddings, [{"context": context} for context in batch_context])class Retriever:def __init__(self, vector_db, embeddata):self.vector_db = vector_dbself.embeddata = embeddatadef search(self, query):query_embedding = self.embeddata.embed_model.get_query_embedding(query)# select the top 3 resultsresult = self.vector_db.client.search(collection_name=self.vector_db.collection_name,query_vector=query_embedding,limit=3)combined_prompt = [item["payload"]["context"] for item in result]final_output = "\n\n---\n\n".join(combined_prompt)return final_output
