Sentinel源码—6.熔断降级和数据统计的实现一

news 来源：原创 2025/4/21 14:18:15

大纲

1.DegradeSlot实现熔断降级的原理与源码

2.Sentinel数据指标统计的滑动窗口算法

1.DegradeSlot实现熔断降级的原理与源码

(1)熔断降级规则DegradeRule的配置Demo

(2)注册熔断降级监听器和加载熔断降级规则

(3)DegradeSlot根据熔断降级规则对请求进行验证

(1)熔断降级规则DegradeRule的配置Demo

首先熔断降级规则的应用场景有如下两种：

场景一：在微服务架构中，当一个服务出现问题时，可以通过配置熔断降级规则，防止故障扩散，保护整个系统的稳定性。

场景二：在调用第三方API时，可以配置熔断降级规则，避免因第三方API不稳定导致自身系统不稳定。

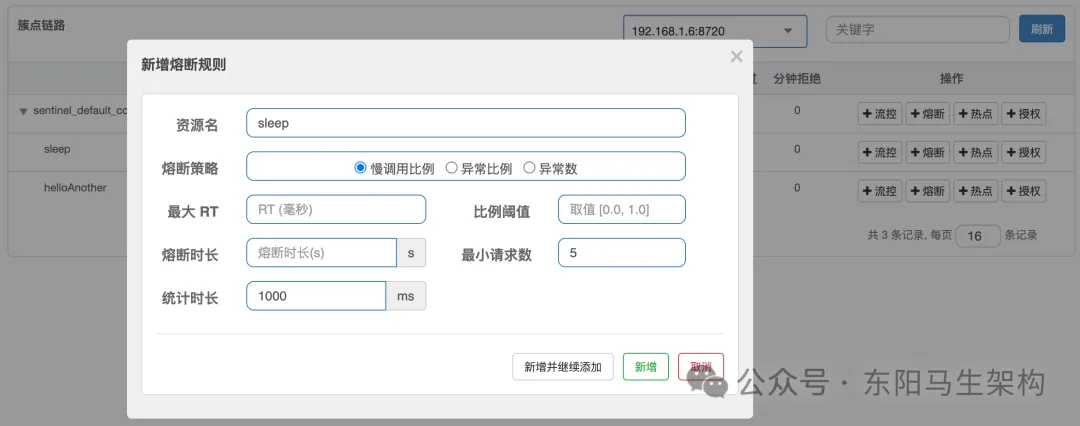

然后从下图可知，熔断降级规则包含以下属性：

属性一：熔断策略(grade)

这表示的是熔断降级规则的类型，取值范围分别是：

RuleConstant.DEGRADE_GRADE_RT(慢调用比例)
RuleConstant.DEGRADE_GRADE_EXCEPTION_RATIO(异常比例)
RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT(异常数)

其中，默认下的熔断降级规则是基于慢调用比例策略的，也就是默认值为：

RuleConstant.DEGRADE_GRADE_RT

属性二：熔断降级的阈值(count)

DegradeRule.count属性的具体含义取决于DegradeRule.grade属性的值。

如果grade为慢调用比例，则count表示慢调用比例阈值。
如果grade为异常比例，则count表示异常比例阈值。
如果grade为异常数，则count表示异常数阈值。

属性三：熔断时长(timeWindow)

这表示的是熔断降级发生后的降级持续时间，在这段时间内对应的资源将被降级。

属性四：最小请求数(minRequestAmount)

这表示的是熔断降级统计周期内的最小请求总数。仅当周期内的请求总数达到此值时，才会根据grade和count进行熔断降级。默认值为：

RuleConstant.DEGRADE_DEFAULT_MIN_REQUEST_AMOUNT

属性五：慢调用比例阈值(slowRatioThreshold)

该属性当grade为慢调用比例时生效，取值范围为0到1之间的小数，表示慢调用请求占总请求的比例。

属性六：统计时长(statIntervalMs)

这表示的是熔断降级统计周期(单位：毫秒)，默认值为1000毫秒(1秒)。在这个周期内，Sentinel会对请求进行统计，以判断是否要进行熔断降级。

public class DegradeRule extends AbstractRule {//熔断策略，表示的是熔断降级规则的类型private int grade = RuleConstant.DEGRADE_GRADE_RT;//熔断降级的阈值，具体含义取决于DegradeRule.grade属性的值//如果grade为慢调用比例，则count表示慢调用比例阈值//如果grade为异常比例，则count表示异常比例阈值//如果grade为异常数，则count表示异常数阈值private double count;//熔断时长，即熔断降级发生后的降级持续时间，在这段时间内对应的资源将被降级private int timeWindow;//最小请求数，仅当周期内的请求总数达到此值时，才会根据grade和count进行熔断降级private int minRequestAmount = RuleConstant.DEGRADE_DEFAULT_MIN_REQUEST_AMOUNT;//慢调用比例阈值，仅当grade为慢调用比例时生效private double slowRatioThreshold = 1.0d;//统计时长，熔断降级统计周期，在这个周期内，Sentinel会对请求进行统计，以判断是否要进行熔断降级private int statIntervalMs = 1000;...
}

接着如下便是DegradeRule的配置Demo：

//Run this demo, and the output will be like:
//1529399827825,total:0, pass:0, block:0
//1529399828825,total:4263, pass:100, block:4164
//1529399829825,total:19179, pass:4, block:19176 // circuit breaker opens
//1529399830824,total:19806, pass:0, block:19806
//1529399831825,total:19198, pass:0, block:19198
//1529399832824,total:19481, pass:0, block:19481
//1529399833826,total:19241, pass:0, block:19241
//1529399834826,total:17276, pass:0, block:17276
//1529399835826,total:18722, pass:0, block:18722
//1529399836826,total:19490, pass:0, block:19492
//1529399837828,total:19355, pass:0, block:19355
//1529399838827,total:11388, pass:0, block:11388
//1529399839829,total:14494, pass:104, block:14390 // After 10 seconds, the system restored
//1529399840854,total:18505, pass:0, block:18505
//1529399841854,total:19673, pass:0, block:19676
public class SlowRatioCircuitBreakerDemo {private static final String KEY = "some_method";private static volatile boolean stop = false;private static int seconds = 120;private static AtomicInteger total = new AtomicInteger();private static AtomicInteger pass = new AtomicInteger();private static AtomicInteger block = new AtomicInteger();public static void main(String[] args) throws Exception {initDegradeRule();registerStateChangeObserver();startTick();int concurrency = 8;for (int i = 0; i < concurrency; i++) {Thread entryThread = new Thread(() -> {while (true) {Entry entry = null;try {entry = SphU.entry(KEY);pass.incrementAndGet();//RT: [40ms, 60ms)sleep(ThreadLocalRandom.current().nextInt(40, 60));} catch (BlockException e) {block.incrementAndGet();sleep(ThreadLocalRandom.current().nextInt(5, 10));} finally {total.incrementAndGet();if (entry != null) {entry.exit();}}}});entryThread.setName("sentinel-simulate-traffic-task-" + i);entryThread.start();}}private static void registerStateChangeObserver() {EventObserverRegistry.getInstance().addStateChangeObserver("logging",(prevState, newState, rule, snapshotValue) -> {if (newState == State.OPEN) {System.err.println(String.format("%s -> OPEN at %d, snapshotValue=%.2f", prevState.name(), TimeUtil.currentTimeMillis(), snapshotValue));} else {System.err.println(String.format("%s -> %s at %d", prevState.name(), newState.name(), TimeUtil.currentTimeMillis()));}});}private static void initDegradeRule() {List<DegradeRule> rules = new ArrayList<>();DegradeRule rule = new DegradeRule(KEY).setGrade(CircuitBreakerStrategy.SLOW_REQUEST_RATIO.getType())//Max allowed response time.setCount(50).setTimeWindow(10)//Retry timeout (in second).setSlowRatioThreshold(0.6)//Circuit breaker opens when slow request ratio > 60%.setMinRequestAmount(100).setStatIntervalMs(20000);rules.add(rule);DegradeRuleManager.loadRules(rules);System.out.println("Degrade rule loaded: " + rules);}private static void sleep(int timeMs) {try {TimeUnit.MILLISECONDS.sleep(timeMs);} catch (InterruptedException e) {// ignore}}private static void startTick() {Thread timer = new Thread(new TimerTask());timer.setName("sentinel-timer-tick-task");timer.start();}static class TimerTask implements Runnable {@Overridepublic void run() {long start = System.currentTimeMillis();System.out.println("Begin to run! Go go go!");System.out.println("See corresponding metrics.log for accurate statistic data");long oldTotal = 0;long oldPass = 0;long oldBlock = 0;while (!stop) {sleep(1000);long globalTotal = total.get();long oneSecondTotal = globalTotal - oldTotal;oldTotal = globalTotal;long globalPass = pass.get();long oneSecondPass = globalPass - oldPass;oldPass = globalPass;long globalBlock = block.get();long oneSecondBlock = globalBlock - oldBlock;oldBlock = globalBlock;System.out.println(TimeUtil.currentTimeMillis() + ", total:" + oneSecondTotal + ", pass:" + oneSecondPass + ", block:" + oneSecondBlock);if (seconds-- <= 0) {stop = true;}}long cost = System.currentTimeMillis() - start;System.out.println("time cost: " + cost + " ms");System.out.println("total: " + total.get() + ", pass:" + pass.get() + ", block:" + block.get());System.exit(0);}}
}

(2)注册熔断降级监听器和加载熔断降级规则

一.Sentinel监听器模式的核心代码回顾

二.注册熔断降级监听器和加载熔断降级规则

三.用于实现Sentinel熔断降级功能的熔断器接口

一.Sentinel监听器模式的核心代码回顾

Sentinel监听器模式会包含三大角色：

角色一：监听器PropertyListener

角色二：监听器管理器SentinelProperty

角色三：规则管理器RuleManager

首先，规则管理器RuleManager在初始化时，会调用监听器管理器SentinelProperty的addListener()方法将监听器PropertyListener注册到监听器管理器SentinelProperty上。

然后，使用方使用具体的规则时，可以通过调用规则管理器RuleManager的loadRules()方法加载规则。加载规则时会调用监听器管理器SentinelProperty的updateValue()方法通知每一个监听器PropertyListener，即通过监听器PropertyListener的configUpdate()方法把规则加载到规则管理器的本地中。

二.注册熔断降级监听器和加载熔断降级规则

DegradeRuleManager中有两个全局的HashMap：一个是用于存放资源和熔断器的对应关系的HashMap—circuitBreakers，另一个是用于存放资源和熔断规则的对应关系的HashMap—ruleMap。

其中熔断器是由熔断策略DegradeRule.grade来决定的。如果熔断策略是慢调用比例，则熔断器是ResponseTimeCircuitBreaker。如果熔断策略是异常比例和异常数，则熔断器是ExceptionCircuitBreaker。

public class DynamicSentinelProperty<T> implements SentinelProperty<T> {protected Set<PropertyListener<T>> listeners = new CopyOnWriteArraySet<>();private T value = null;...//添加监听器到集合@Overridepublic void addListener(PropertyListener<T> listener) {listeners.add(listener);//回调监听器的configLoad()方法初始化规则配置listener.configLoad(value);}//更新值@Overridepublic boolean updateValue(T newValue) {//如果值没变化，直接返回if (isEqual(value, newValue)) {return false;}RecordLog.info("[DynamicSentinelProperty] Config will be updated to: {}", newValue);//如果值发生了变化，则遍历监听器，回调监听器的configUpdate()方法更新对应的值value = newValue;for (PropertyListener<T> listener : listeners) {listener.configUpdate(newValue);}return true;}...
}public final class DegradeRuleManager {//用于存放资源和熔断器的对应关系的HashMap，其中熔断器是由熔断策略DegradeRule.grade来决定的private static volatile Map<String, List<CircuitBreaker>> circuitBreakers = new HashMap<>();//用于存放资源和熔断规则的对应关系的HashMapprivate static volatile Map<String, Set<DegradeRule>> ruleMap = new HashMap<>();private static final RulePropertyListener LISTENER = new RulePropertyListener();private static SentinelProperty<List<DegradeRule>> currentProperty = new DynamicSentinelProperty<>();static {currentProperty.addListener(LISTENER);}...private static class RulePropertyListener implements PropertyListener<List<DegradeRule>> {@Overridepublic void configUpdate(List<DegradeRule> conf) {reloadFrom(conf);RecordLog.info("[DegradeRuleManager] Degrade rules has been updated to: {}", ruleMap);}@Overridepublic void configLoad(List<DegradeRule> conf) {reloadFrom(conf);RecordLog.info("[DegradeRuleManager] Degrade rules loaded: {}", ruleMap);}private synchronized void reloadFrom(List<DegradeRule> list) {//构建熔断器Map<String, List<CircuitBreaker>> cbs = buildCircuitBreakers(list);Map<String, Set<DegradeRule>> rm = new HashMap<>(cbs.size());for (Map.Entry<String, List<CircuitBreaker>> e : cbs.entrySet()) {assert e.getValue() != null && !e.getValue().isEmpty();Set<DegradeRule> rules = new HashSet<>(e.getValue().size());for (CircuitBreaker cb : e.getValue()) {rules.add(cb.getRule());}rm.put(e.getKey(), rules);}DegradeRuleManager.circuitBreakers = cbs;DegradeRuleManager.ruleMap = rm;}private Map<String, List<CircuitBreaker>> buildCircuitBreakers(List<DegradeRule> list) {Map<String, List<CircuitBreaker>> cbMap = new HashMap<>(8);if (list == null || list.isEmpty()) {return cbMap;}for (DegradeRule rule : list) {if (!isValidRule(rule)) {RecordLog.warn("[DegradeRuleManager] Ignoring invalid rule when loading new rules: {}", rule);continue;}if (StringUtil.isBlank(rule.getLimitApp())) {rule.setLimitApp(RuleConstant.LIMIT_APP_DEFAULT);}CircuitBreaker cb = getExistingSameCbOrNew(rule);if (cb == null) {RecordLog.warn("[DegradeRuleManager] Unknown circuit breaking strategy, ignoring: {}", rule);continue;}String resourceName = rule.getResource();List<CircuitBreaker> cbList = cbMap.get(resourceName);if (cbList == null) {cbList = new ArrayList<>();cbMap.put(resourceName, cbList);}cbList.add(cb);}return cbMap;}}private static CircuitBreaker getExistingSameCbOrNew(DegradeRule rule) {List<CircuitBreaker> cbs = getCircuitBreakers(rule.getResource());if (cbs == null || cbs.isEmpty()) {return newCircuitBreakerFrom(rule);}for (CircuitBreaker cb : cbs) {if (rule.equals(cb.getRule())) {//Reuse the circuit breaker if the rule remains unchanged.return cb;}}return newCircuitBreakerFrom(rule);}static List<CircuitBreaker> getCircuitBreakers(String resourceName) {return circuitBreakers.get(resourceName);}//Create a circuit breaker instance from provided circuit breaking rule.private static CircuitBreaker newCircuitBreakerFrom(DegradeRule rule) {switch (rule.getGrade()) {case RuleConstant.DEGRADE_GRADE_RT:return new ResponseTimeCircuitBreaker(rule);case RuleConstant.DEGRADE_GRADE_EXCEPTION_RATIO:case RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT:return new ExceptionCircuitBreaker(rule);default:return null;}}
}

三.用于实现Sentinel熔断降级功能的熔断器接口

进行熔断降级规则验证时，就会根据熔断降级规则的熔断策略，选择对应的熔断器CircuitBreaker。再通过熔断器CircuitBreaker的tryPass()接口，尝试通过当前请求。

//熔断器接口，用于实现Sentinel的熔断降级功能
public interface CircuitBreaker {//Get the associated circuit breaking rule.//获取当前熔断器对应的熔断降级规则DegradeRule getRule();//Acquires permission of an invocation only if it is available at the time of invoking.//尝试通过熔断器//如果熔断器处于关闭状态(CLOSED)，则允许请求通过；//如果处于打开状态(OPEN)，则拒绝请求；//如果处于半开状态(HALF_OPEN)，则根据规则允许部分请求通过；boolean tryPass(Context context);//Get current state of the circuit breaker.//获取当前熔断器的状态(OPEN, HALF_OPEN, CLOSED)State currentState();//Record a completed request with the context and handle state transformation of the circuit breaker.//Called when a passed invocation finished.//在请求完成后调用此方法，用于更新熔断器的统计数据void onRequestComplete(Context context);//Circuit breaker state.enum State {//In OPEN state, all requests will be rejected until the next recovery time point.//表示熔断器处于打开状态，此时会拒绝所有请求OPEN,//In HALF_OPEN state, the circuit breaker will allow a "probe" invocation.//If the invocation is abnormal according to the strategy (e.g. it's slow), //the circuit breaker will re-transform to the OPEN state and wait for the next recovery time point;//otherwise the resource will be regarded as "recovered" and the circuit breaker will cease cutting off requests and transform to CLOSED state. //表示熔断器处于半开状态，此时允许部分请求通过，以检测系统是否已经恢复正常HALF_OPEN,//In CLOSED state, all requests are permitted. //When current metric value exceeds the threshold, the circuit breaker will transform to OPEN state.//表示熔断器处于关闭状态，此时允许所有请求通过CLOSED}
}public class ResponseTimeCircuitBreaker extends AbstractCircuitBreaker {......
}public class ExceptionCircuitBreaker extends AbstractCircuitBreaker {......
}

(3)DegradeSlot根据熔断降级规则对请求进行验证

一.entry()方法会对请求进行熔断降级的规则验证

二.exit()方法会触发改变熔断器的状态

开始对请求进行规则验证时，需要调用SphU的entry()方法。完成对请求的规则验证后，也需要调用Entry的exit()方法。

一.entry()方法会对请求进行熔断降级的规则验证

在DegradeSlot的entry()方法中，执行熔断降级规则验证的是DegradeSlot的performChecking()方法。该方法首先会根据资源名称从DegradeRuleManager中获取熔断器，然后调用每个熔断器的tryPass()方法判断熔断器开关是否已打开来验证。如果验证通过，则返回true表示放行请求。如果验证不通过，则返回false表示拦截请求。

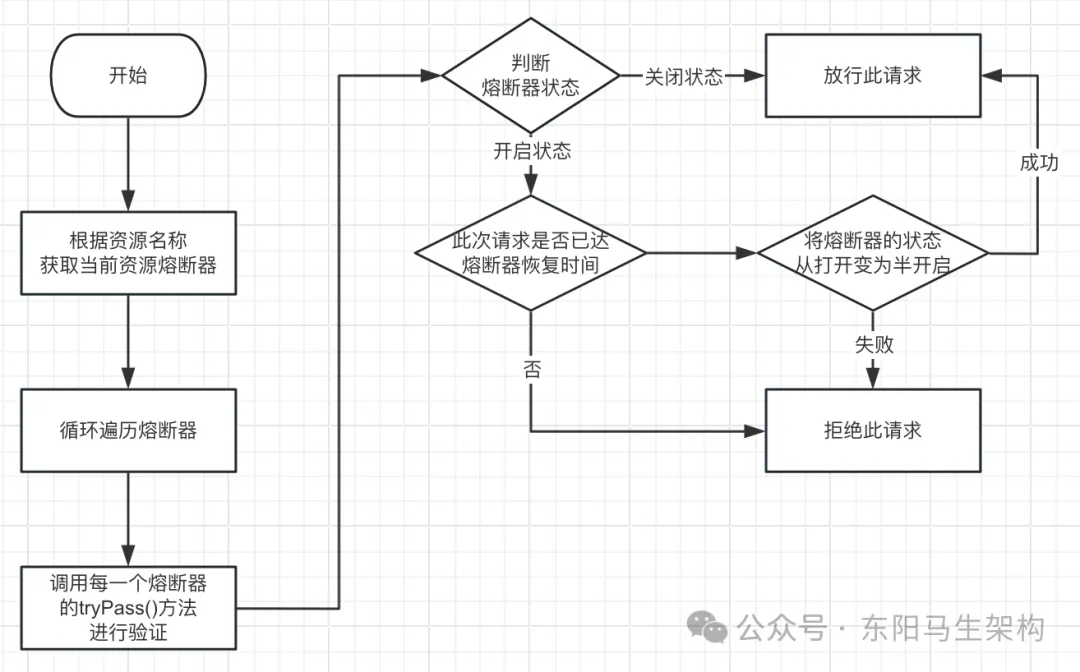

在判断熔断器开关是否已打开的AbstractCircuitBreaker的tryPass()方法中，首先会判断熔断器是否是关闭状态。如果是关闭状态，则代表没打开熔断器，于是会直接返回true放行请求。如果是打开状态，则要继续判断当前请求是否已达熔断器恢复时间。如果当前请求已达熔断器恢复时间，也就是当前时间大于下次尝试恢复的时间，且成功将熔断器状态从OPEN变为HALF_OPEN，则放行请求，否则拒绝。

@Spi(order = Constants.ORDER_DEGRADE_SLOT)
public class DegradeSlot extends AbstractLinkedProcessorSlot<DefaultNode> {@Overridepublic void entry(Context context, ResourceWrapper resourceWrapper, DefaultNode node, int count, boolean prioritized, Object... args) throws Throwable {//验证熔断规则的逻辑performChecking(context, resourceWrapper);fireEntry(context, resourceWrapper, node, count, prioritized, args);}void performChecking(Context context, ResourceWrapper r) throws BlockException {//先根据资源名称获取对应的熔断器，也就是从DegradeRuleManager中的Map<String, List<CircuitBreaker>>类型的circuitBreakers获取List<CircuitBreaker> circuitBreakers = DegradeRuleManager.getCircuitBreakers(r.getName());if (circuitBreakers == null || circuitBreakers.isEmpty()) {return;}//调用每个熔断器的tryPass()方法验证当前请求是否可以通过for (CircuitBreaker cb : circuitBreakers) {if (!cb.tryPass(context)) {throw new DegradeException(cb.getRule().getLimitApp(), cb.getRule());}}}...
}public abstract class AbstractCircuitBreaker implements CircuitBreaker {protected final DegradeRule rule;private final EventObserverRegistry observerRegistry;//熔断器当前的开关状态protected final AtomicReference<State> currentState = new AtomicReference<>(State.CLOSED);//下一次尝试恢复的时间protected volatile long nextRetryTimestamp;...@Overridepublic boolean tryPass(Context context) {//首先判断熔断器是否是关闭状态//如果是关闭状态则代表根本没打开熔断器，也就不涉及熔断了，因此直接返回true放行当前请求if (currentState.get() == State.CLOSED) {return true;}//如果熔断器是打开状态，那么就要进行如下逻辑判断if (currentState.get() == State.OPEN) {//如果当前系统时间大于等于下一次尝试恢复的时间，即已到达可尝试恢复的时间且成功设置当前熔断器状态为半开启，则可以放行当前请求//也就是如果此次请求已达到了熔断器恢复时间，并且将熔断器的状态从打开变为半开启，则放行，反之拒绝return retryTimeoutArrived() && fromOpenToHalfOpen(context);}return false;}protected boolean retryTimeoutArrived() {//当前时间是否大于下一次尝试恢复的时间return TimeUtil.currentTimeMillis() >= nextRetryTimestamp;}protected boolean fromOpenToHalfOpen(Context context) {//将当前熔断器的状态从OPEN变为HALF_OPENif (currentState.compareAndSet(State.OPEN, State.HALF_OPEN)) {//通过观察者模式通知各个观察者notifyObservers(State.OPEN, State.HALF_OPEN, null);...return true;}return false;}private void notifyObservers(CircuitBreaker.State prevState, CircuitBreaker.State newState, Double snapshotValue) {for (CircuitBreakerStateChangeObserver observer : observerRegistry.getStateChangeObservers()) {observer.onStateChange(prevState, newState, rule, snapshotValue);}}...
}

二.exit()方法会触发改变熔断器的状态

问题一：熔断器的tryPass()方法一开始就会判断熔断器的状态，那么熔断器何时打开、何时关闭？

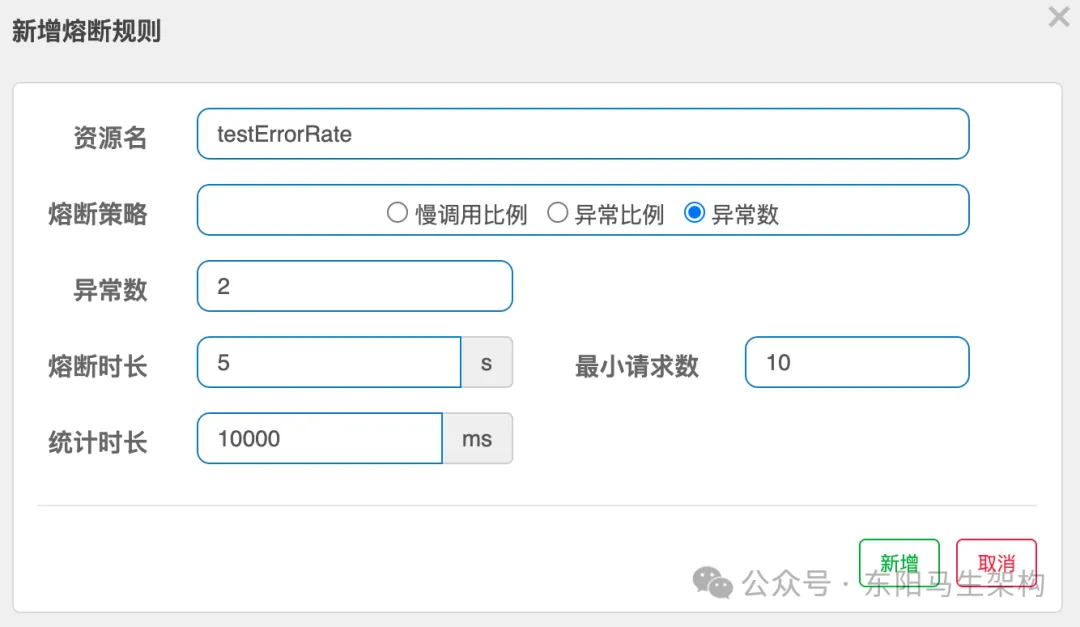

答：这个会在配置熔断降级规则DegradeRule时指定，如下图就指定了：如果最近10000ms内，10个请求中有2个是异常的，则触发熔断。

问题二：如果熔断器状态为打开，判断时会比较下一次尝试恢复时间和当前时间。如果当前时间大于下一次尝试恢复的时间，意味着请求已超过熔断时间，即当前请求不再处于熔断时间段内，因此可以放行。那么下一次尝试恢复的时间nextRetryTimestamp会在何时更新？

异常数据的采集和下次恢复时间的更新会由DegradeSlot的exit()方法触发。因为开始对请求进行规则验证时，会调用SphU的entry()方法。但完成对请求的规则验证后，则会调用Entry的exit()方法，而Entry的exit()方法最终就会执行到DegradeSlot的exit()方法。

在DegradeSlot的exit()方法中，就会调用熔断器的onRequestComplete()方法来进行计数，并改变熔断器的状态。

比如在执行ExceptionCircuitBreaker的onRequestComplete()方法中，会先统计异常数errorCount和总请求数totalCount，然后根据熔断降级的规则判断是否达到打开或关闭熔断器的阈值，最后执行比如AbstractCircuitBreaker的transformToOpen()方法打开熔断器。

AbstractCircuitBreaker.transformToOpen()方法的主要工作是：首先将当前熔断器状态变更为OPEN，然后更新下一次尝试恢复时间nextRetryTimestamp，最后通过观察者设计模式通知各个观察者。

@Spi(order = Constants.ORDER_DEGRADE_SLOT)
public class DegradeSlot extends AbstractLinkedProcessorSlot<DefaultNode> {...@Overridepublic void exit(Context context, ResourceWrapper r, int count, Object... args) {Entry curEntry = context.getCurEntry();if (curEntry.getBlockError() != null) {fireExit(context, r, count, args);return;}List<CircuitBreaker> circuitBreakers = DegradeRuleManager.getCircuitBreakers(r.getName());if (circuitBreakers == null || circuitBreakers.isEmpty()) {fireExit(context, r, count, args);return;}//如果没报错，那么就调用熔断器的onRequestComplete()方法来计数if (curEntry.getBlockError() == null) {// passed requestfor (CircuitBreaker circuitBreaker : circuitBreakers) {circuitBreaker.onRequestComplete(context);}}fireExit(context, r, count, args);}...
}public class ExceptionCircuitBreaker extends AbstractCircuitBreaker {...@Overridepublic void onRequestComplete(Context context) {Entry entry = context.getCurEntry();if (entry == null) {return;}Throwable error = entry.getError();//获取当前值SimpleErrorCounter counter = stat.currentWindow().value();//如果此次请求报错了，则将errorCount + 1if (error != null) {counter.getErrorCount().add(1);}//将totalCount总数 + 1，用于计算异常比例counter.getTotalCount().add(1);handleStateChangeWhenThresholdExceeded(error);}private void handleStateChangeWhenThresholdExceeded(Throwable error) {//如果当前熔断器已经打开了，则直接返回if (currentState.get() == State.OPEN) {return;}//如果当前熔断器是半开启状态if (currentState.get() == State.HALF_OPEN) {//如果本次请求没出现异常，则代表可以关闭熔断器了if (error == null) {//调用AbstractCircuitBreaker.fromHalfOpenToClose()关闭熔断器fromHalfOpenToClose();} else {//如果本次请求还是异常，就继续熔断//即调用AbstractCircuitBreaker.fromHalfOpenToOpen()方法打开熔断器fromHalfOpenToOpen(1.0d);}return;}List<SimpleErrorCounter> counters = stat.values();//异常数量long errCount = 0;//请求总数long totalCount = 0;for (SimpleErrorCounter counter : counters) {errCount += counter.errorCount.sum();totalCount += counter.totalCount.sum();}//如果请求总数没超过最小请求数，那直接放行if (totalCount < minRequestAmount) {return;}double curCount = errCount;//熔断策略为异常比例if (strategy == DEGRADE_GRADE_EXCEPTION_RATIO) {//计算百分比curCount = errCount * 1.0d / totalCount;}//当错误率或者错误数大于阈值，则打开熔断器if (curCount > threshold) {//调用AbstractCircuitBreaker.transformToOpen()方法打开熔断器transformToOpen(curCount);}}...
}public abstract class AbstractCircuitBreaker implements CircuitBreaker {private final EventObserverRegistry observerRegistry;//熔断器当前的开关状态protected final AtomicReference<State> currentState = new AtomicReference<>(State.CLOSED);//下一次尝试恢复的时间protected volatile long nextRetryTimestamp;...protected void transformToOpen(double triggerValue) {State cs = currentState.get();switch (cs) {case CLOSED:fromCloseToOpen(triggerValue);break;case HALF_OPEN:fromHalfOpenToOpen(triggerValue);break;default:break;}}protected boolean fromHalfOpenToClose() {if (currentState.compareAndSet(State.HALF_OPEN, State.CLOSED)) {resetStat();notifyObservers(State.HALF_OPEN, State.CLOSED, null);return true;}return false;}protected boolean fromHalfOpenToOpen(double snapshotValue) {if (currentState.compareAndSet(State.HALF_OPEN, State.OPEN)) {updateNextRetryTimestamp();notifyObservers(State.HALF_OPEN, State.OPEN, snapshotValue);return true;}return false;}private void notifyObservers(CircuitBreaker.State prevState, CircuitBreaker.State newState, Double snapshotValue) {for (CircuitBreakerStateChangeObserver observer : observerRegistry.getStateChangeObservers()) {observer.onStateChange(prevState, newState, rule, snapshotValue);}}...
}
