18.应用聚合、指标显示、应用状态，从Heimdall说起(二)

news 来源：原创 2025/4/25 14:35:37

文章目录

Heimdall配置
- 配置Traefik显示

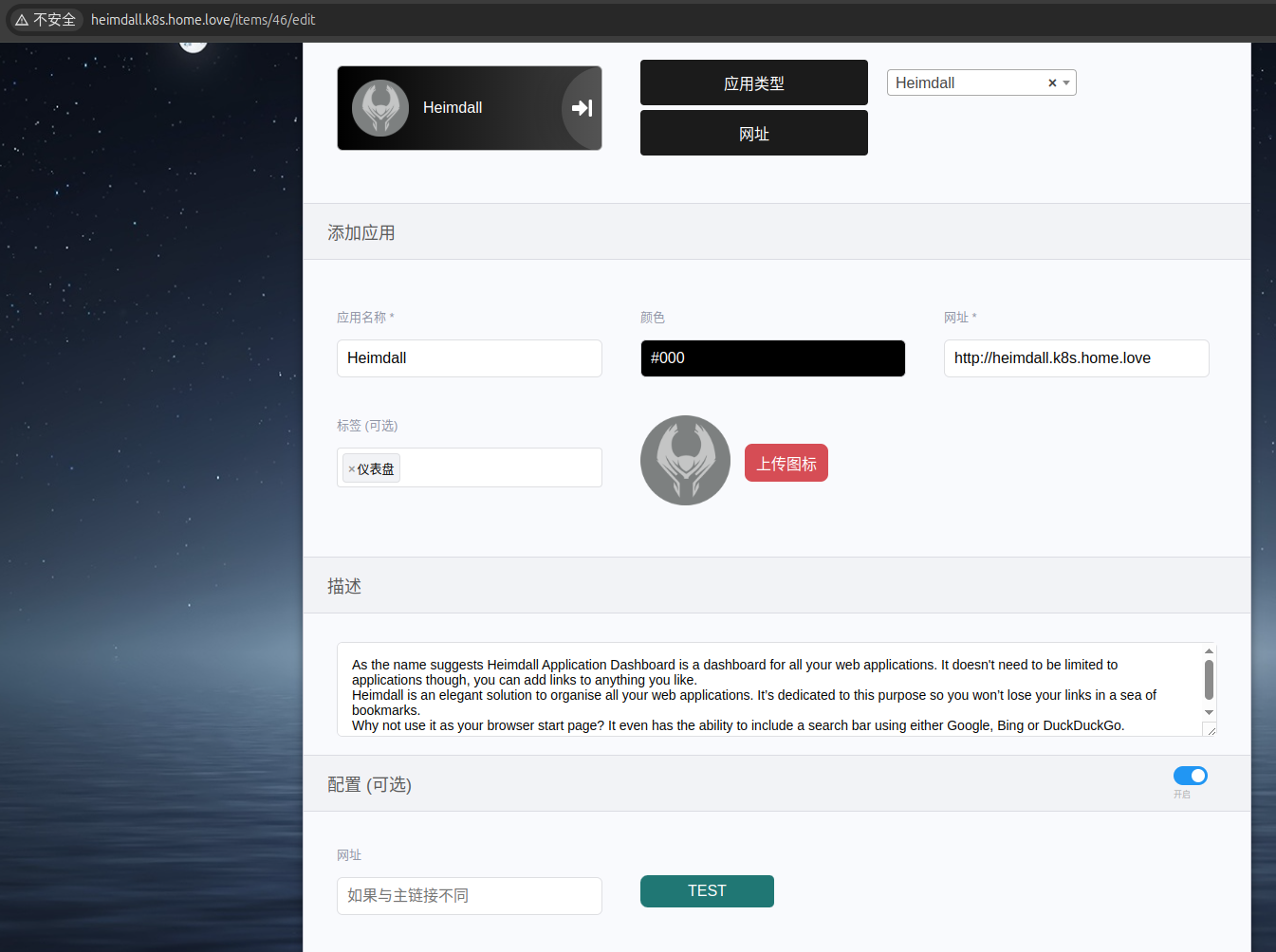

- 配置Heimdall显示

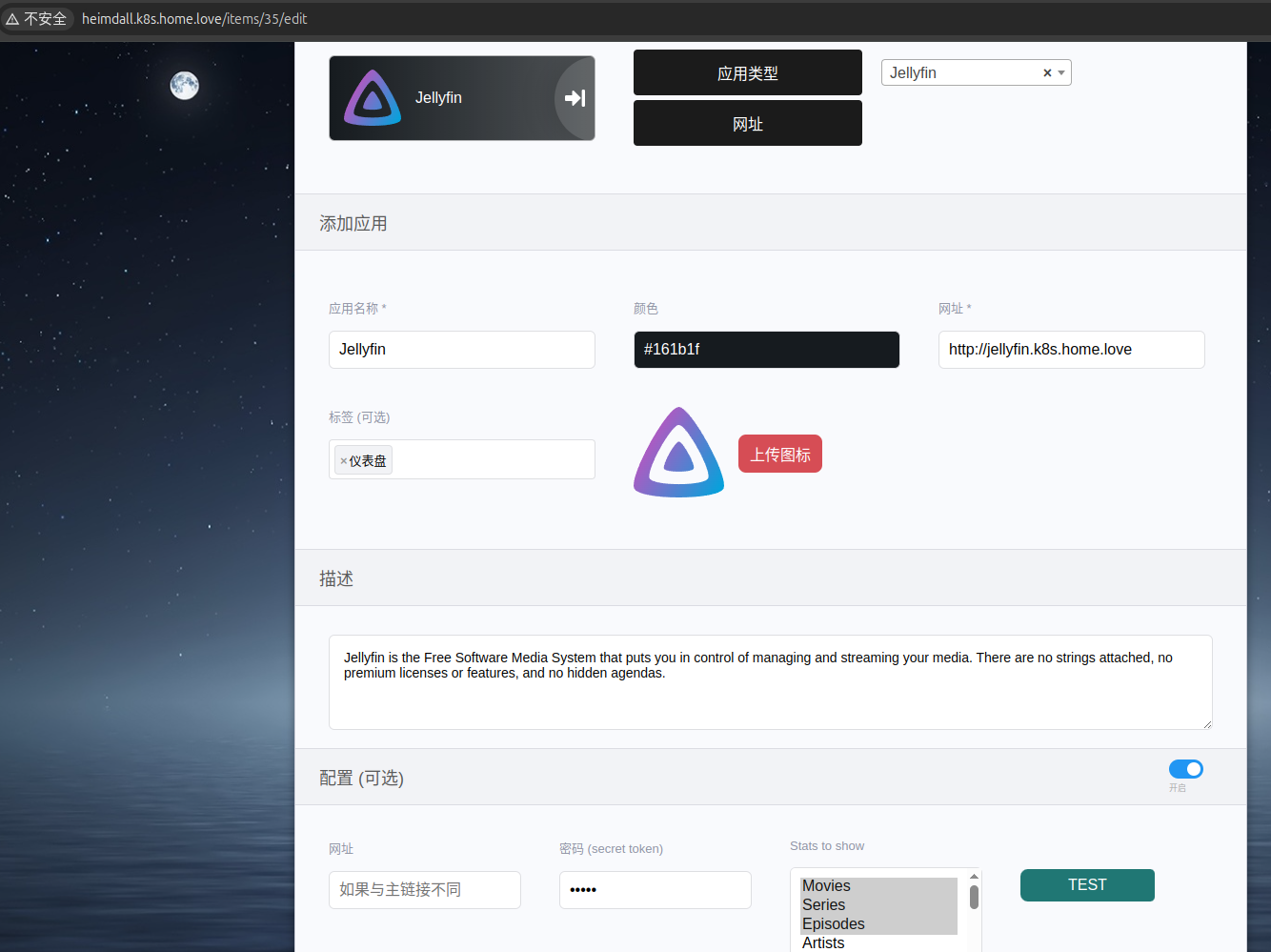

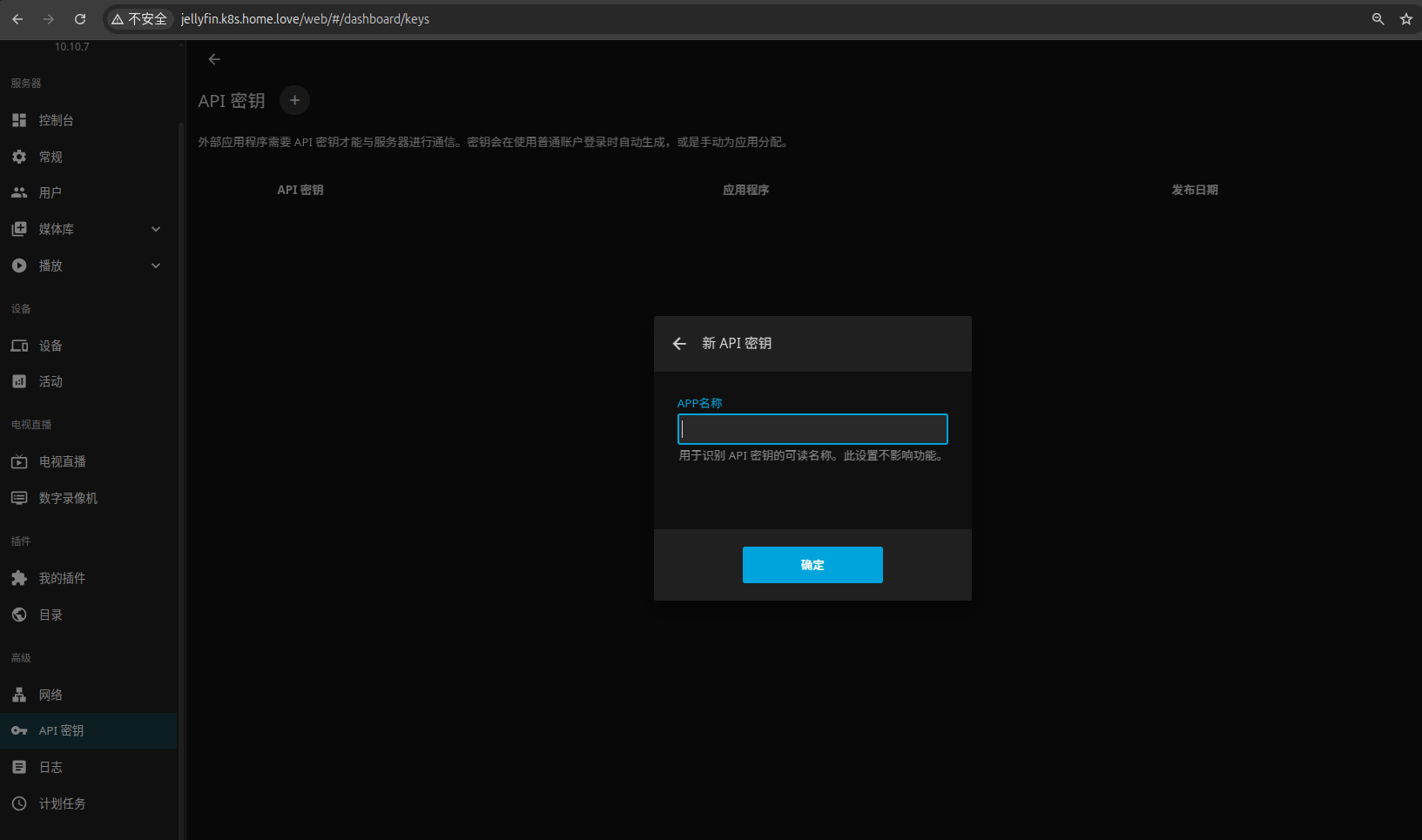

- 配置Jellyfin显示

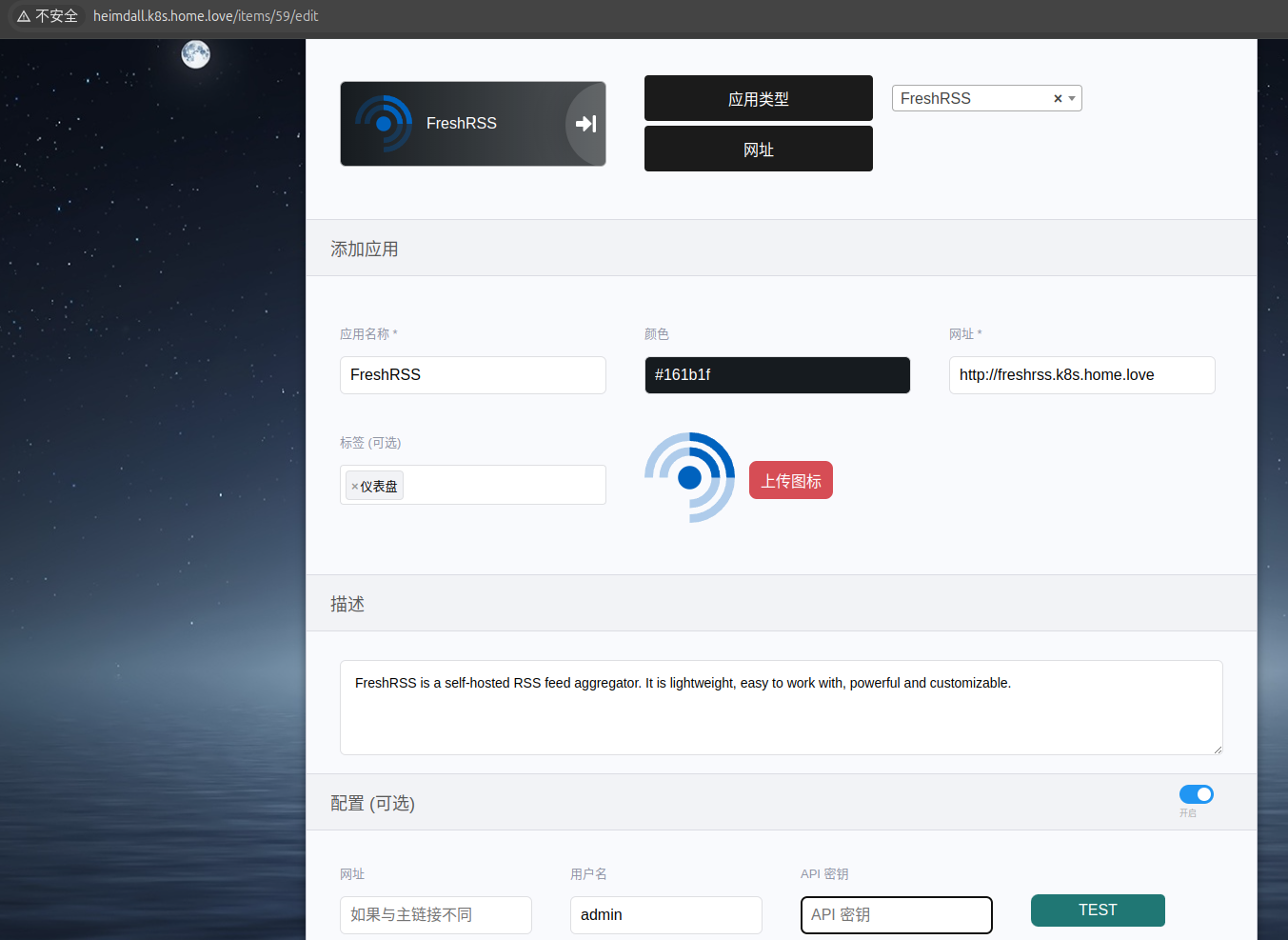

- 配置FreshRSS显示
- 配置Speedtest Tracker显示

本篇安装参见： 11.应用聚合、指标显示、应用状态，从Heimdall说起(一)，但需要各种配置，做稳扶好。

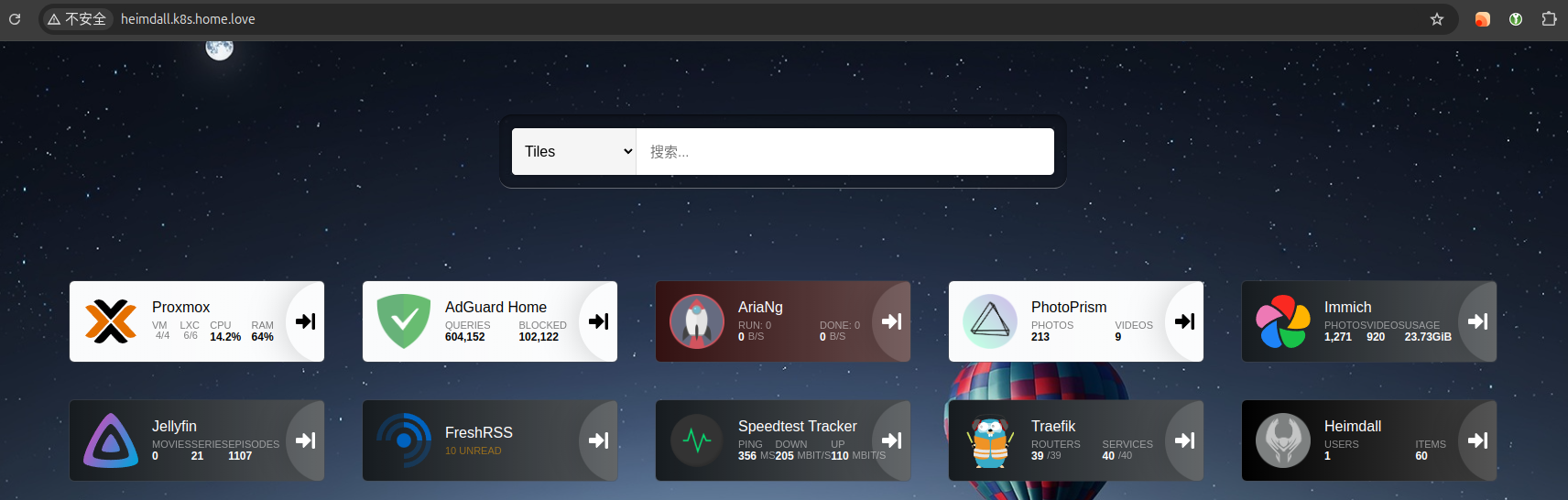

最终效果：
在这里插入图片描述

Heimdall配置

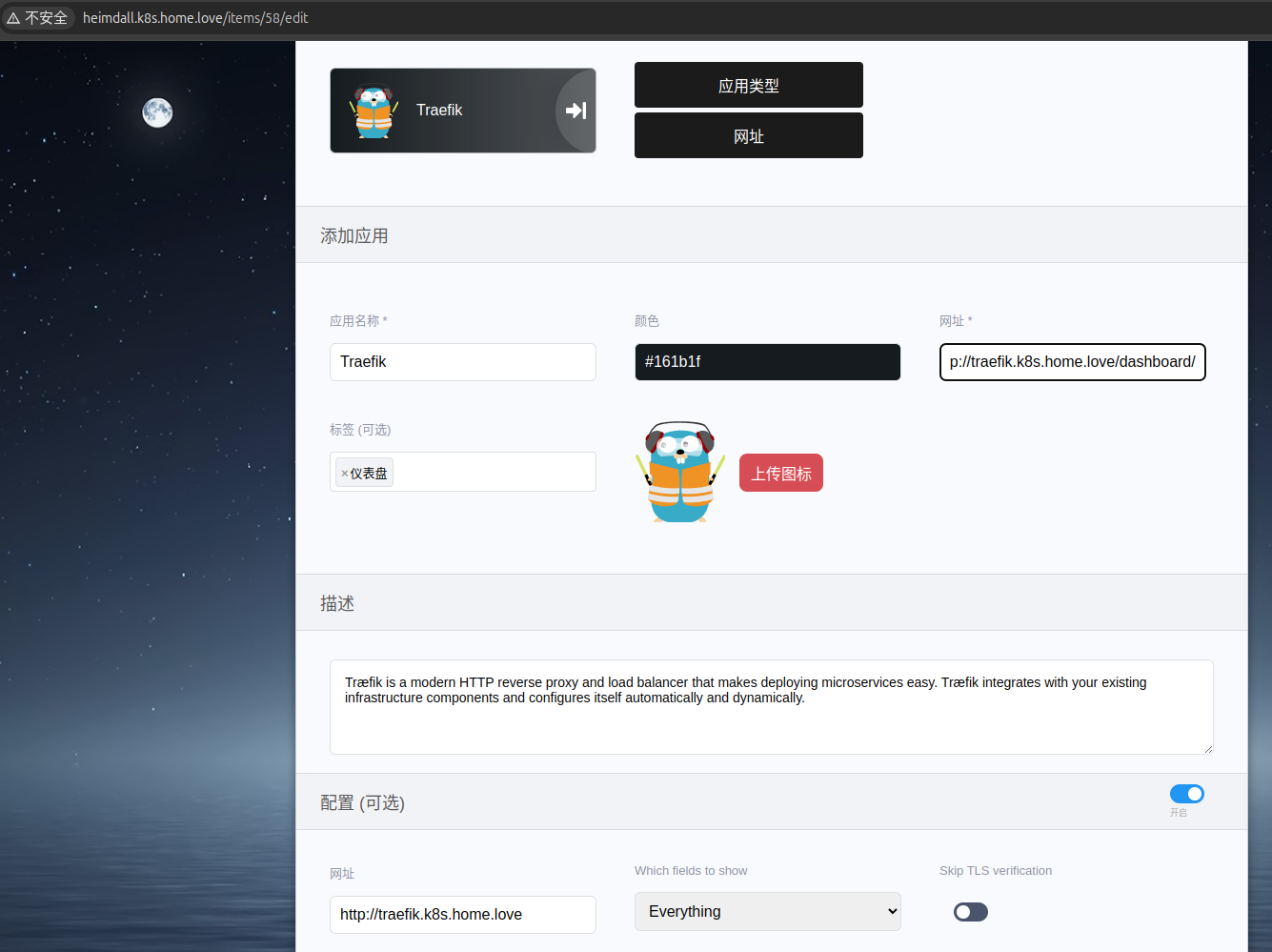

配置Traefik显示

Traefik的安装参见我的专栏：05.安装MetalLB和traefik
Helm方式安装需要在values.yaml配置

# https://artifacthub.io/packages/helm/traefik/traefik?modal=values
deployment:# -- Number of pods of the deployment (only applies when kind == Deployment)replicas: 3# 开启dashboard
ports:traefik:port: 8080expose:default: true
ingressRoute:dashboard:enabled: trueweb:## -- Enable this entrypoint as a default entrypoint. When a service doesn't explicitly set an entrypoint it will only use this entrypoint.# asDefault: trueport: 8000# -- Set transport settings for the entrypoint; see also# https://doc.traefik.io/traefik/routing/entrypoints/#transporttransport:respondingTimeouts:readTimeout: 3600swriteTimeout: 3600sidleTimeout: 3600s# 开启访问日志
logs:access:# -- To enable access logsenabled: true## Tracing
# -- https://doc.traefik.io/traefik/observability/tracing/overview/
tracing:  # @schema additionalProperties: false# -- Enables tracing for internal resources. Default: false.addInternals: true

安装参考: https://artifacthub.io/packages/helm/traefik/traefik

helm upgrade --install -n traefik --create-namespace traefik oci://ghcr.io/traefik/helm/traefik -f values.yaml

traefik域名配置

# https://doc.traefik.io/traefik/reference/routing-configuration/kubernetes/crd/http/ingressroute/
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:name: traefik-hostnamespace: traefik
spec:entryPoints:- webroutes:- match: Host(`traefik.k8s.home.love`) kind: Ruleservices:- name: traefikport: 8080
