guvcview源码记录

一、概述
二、项目结构
- 1. guvcview
- 2. gview_audio
- 3. gview_encoder
- 4. gview_render
- - 1. render.c
  - 2. render_sdl2.c
  - 3. render_osd_crosshair.c
  - 4. render_osd_vu_meter.c
  - 5. render_fx.c
- 3. gview_v4l2core
三、
四、
五、
六、

一、概述

项目地址：guvcview http://guvcview.sourceforge.net

git clone https://git.code.sf.net/p/guvcview/git-master guvcview-git-master

二、项目结构

项目主要有以下五个模块构成，其目录结构如下：
在这里插入图片描述

guvcview模块为完整的应用，包括主窗口的显示，参数配置窗口。
在这里插入图片描述

1. guvcview

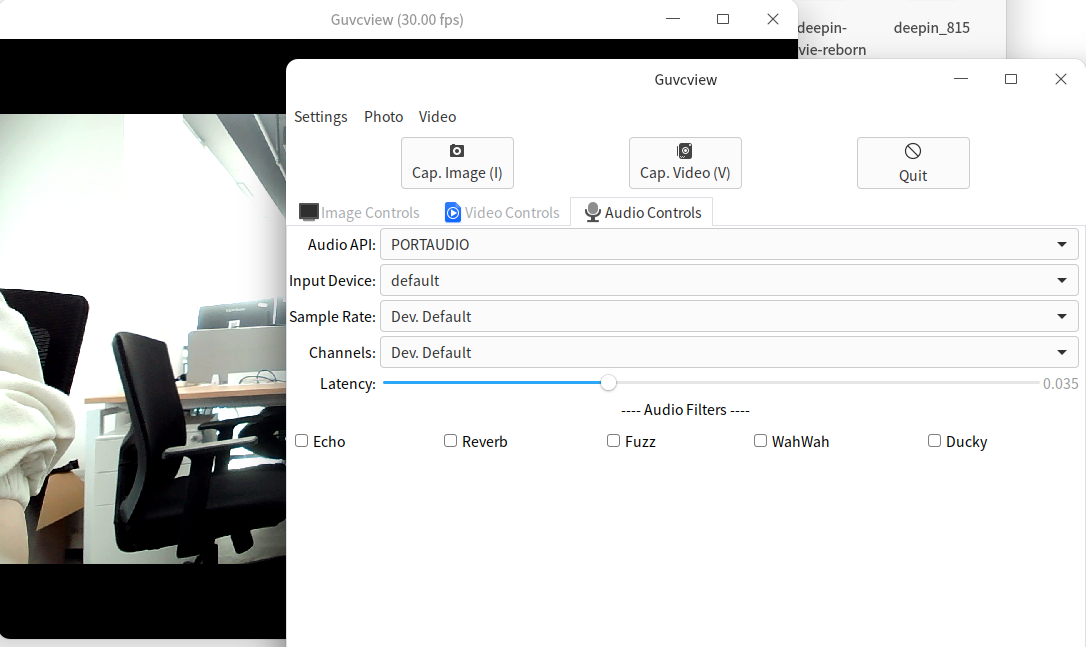

2. gview_audio

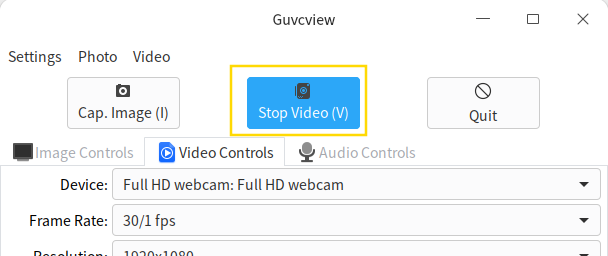

3. gview_encoder

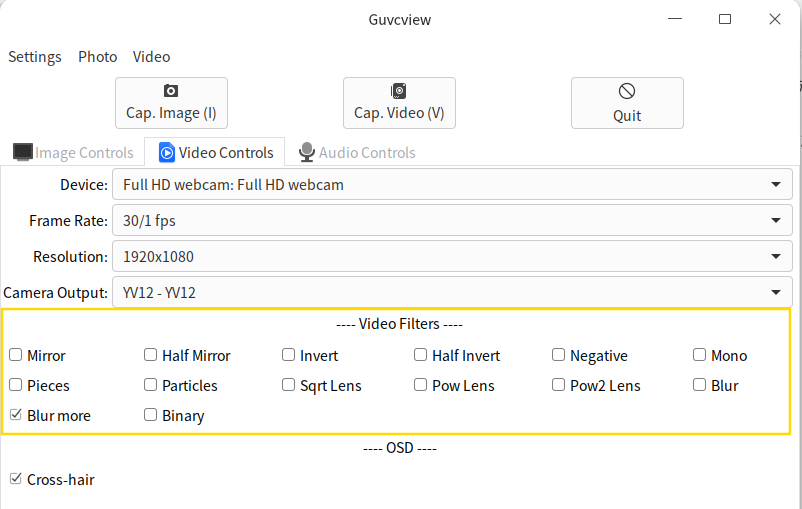

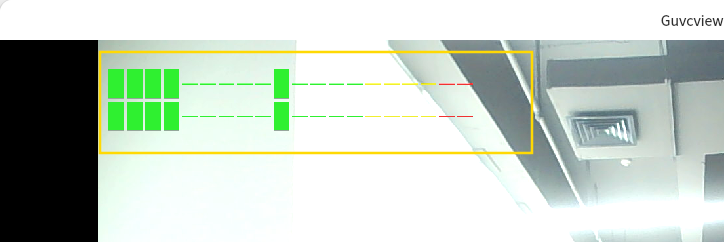

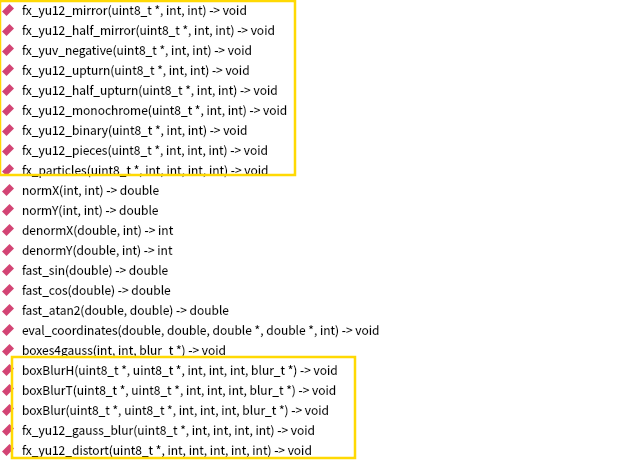

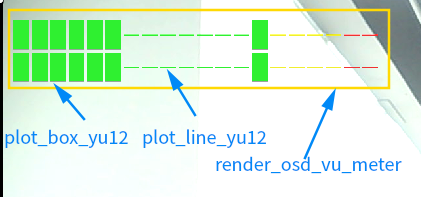

4. gview_render

这里记录一下渲染模块的逻辑
在这里插入图片描述

1. render.c

对外提供的渲染接口，具体实现接口可以选择SDL或者是SFML实现，这里优先记录SDL的内容

2. render_sdl2.c

使用SDL实现rander.c中的函数

3. render_osd_crosshair.c

这个函数是界面中OSD配置的功能

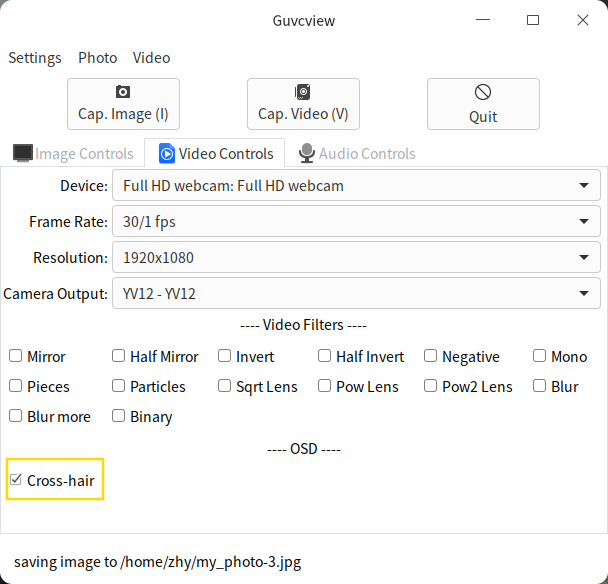

在这里插入图片描述
就是相机中的这个十字准星

函数解读：
render_osd_crosshair 调用 plot_crosshair_yu12函数，通过对传入的YUV图像进行绘制。

render_osd_crosshair 函数主要是处理一下十字准星的颜色，将RGB转为YUV格式，具体实现在plot_crosshair_yu12。

/** 渲染十字准星* args:*   frame - 传入 yuyv 数据的指针*   width - 图像宽度*   height - 图像高度** asserts:*   none** returns: none*/
void render_osd_crosshair(uint8_t *frame, int width, int height)
{yuv_color_t color;color.y = 0;color.u = 0;color.v = 0;uint32_t rgb_color = render_get_crosshair_color();int size = render_get_crosshair_size();uint8_t r = (uint8_t) ((rgb_color & 0x00FF0000) >> 16);uint8_t g = (uint8_t) ((rgb_color & 0x0000FF00) >> 8);uint8_t b = (uint8_t) (rgb_color & 0x000000FF);color.y = CLIP(0.299*(r-128) + 0.587*(g-128) + 0.114*(b-128) + 128) ;color.u = CLIP(-0.147*(r-128) - 0.289*(g-128) + 0.436*(b-128) + 128);color.v = CLIP(0.615*(r-128) - 0.515*(g-128) - 0.100*(b-128) + 128);plot_crosshair_yu12(frame, size, width, height, &color);
}

准星由四条线构成，需要对Y和UV分量单独覆盖

/** plot a crosshair in a yu12 frame (planar)* args:*   frame - pointer to yu12 frame data*   size  - frame line size in pixels (width)十字准星短线的长度*   width - width，图像宽度*   height - height，图像高度*   color - line color** asserts:*   none** returns: none*/
