ShaderToy学习笔记 04.绘制多个3D对象

news 来源：原创 2025/4/29 5:54:36

1. 绘制多个3D对象

1.1. 思路

position 距离第一个球体的距离 d1
position 距离第二个球体的距离 d2
d=min(d1,d2),只要d<=0,就表示需要绘制球体

1.2. 核心代码

float sdSphere(vec3 p, float r,vec3 offset)
{return length(p-offset)-r;
}float sdScene(vec3 p)
{float d=sdSphere(p,1.0,vec3(-5,0.5,0));d=min(d,sdSphere(p,1.0,vec3(5,0.5,0)));return d;
}

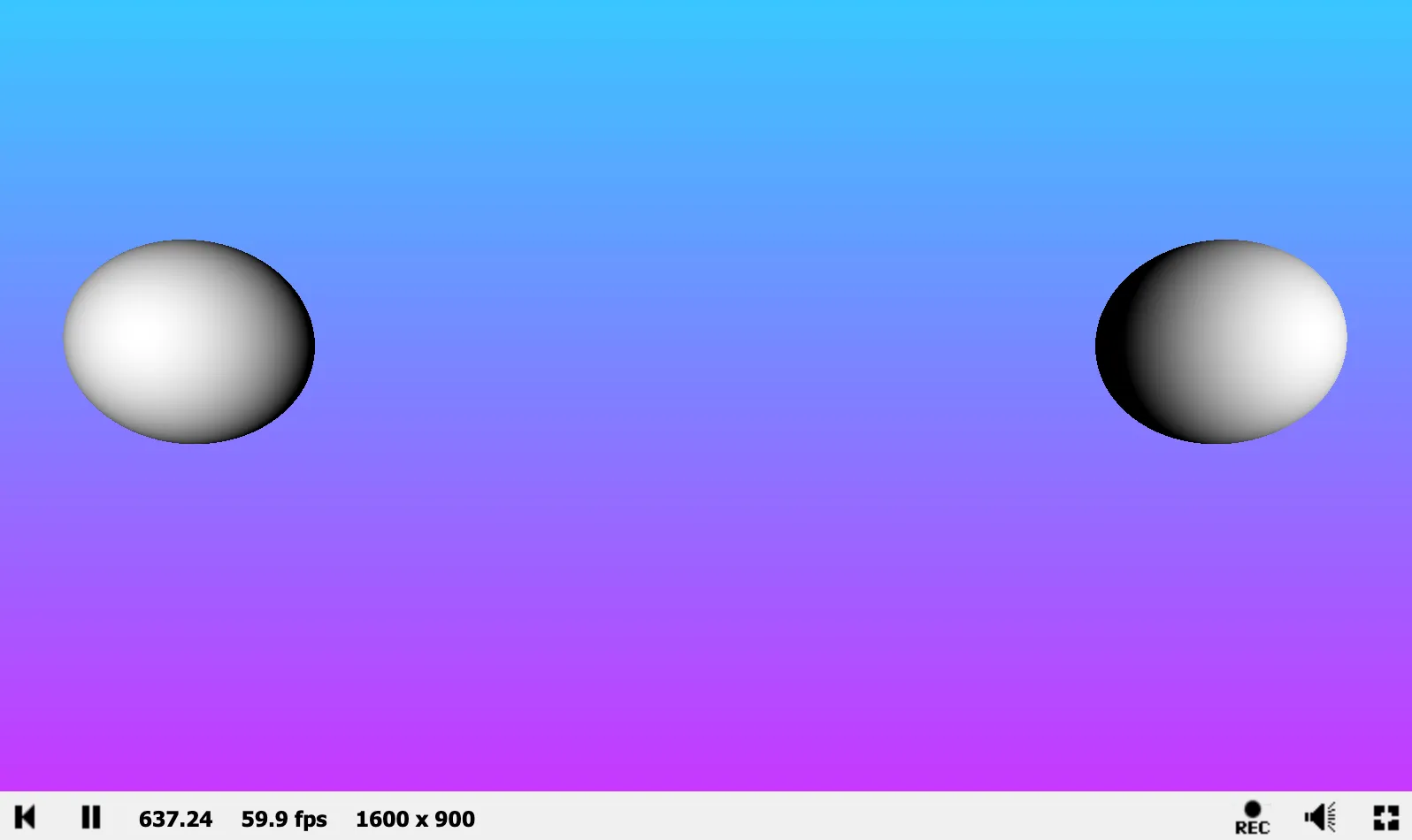

1.3. 完整代码

#define PIXW (1./iResolution.y)const int MAX_STEPS = 100;
const float START_DIST = 0.001;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;float sdSphere(vec3 p, float r,vec3 offset)
{return length(p-offset)-r;
}
vec3 getBackgroundColor(vec2 uv)
{
//uv.y [-1,1]
//y: [0,1] float y=(uv.y+1.)/2.; return mix(vec3(1,0,1),vec3(0,1,1),y);
}
float sdScene(vec3 p)
{float d=sdSphere(p,1.0,vec3(-5,0.5,0));d=min(d,sdSphere(p,1.0,vec3(5,0.5,0)));return d;
}
//法线计算
vec3 calcNormal(vec3 p) {vec2 e = vec2(1.0, -1.0) * 0.0005; // epsilonfloat r = 1.; // radius of spherereturn normalize(e.xyy * sdScene(p + e.xyy) +e.yyx * sdScene(p + e.yyx) +e.yxy * sdScene(p + e.yxy) +e.xxx * sdScene(p + e.xxx));
}float rayMarch(vec3 ro, vec3 rd,float start,float end)
{float d=start;float r=1.0;for(int i=0;i<MAX_STEPS;i++){vec3 p=ro+rd*d;float d1=sdScene(p);if(d1<EPSILON){return d;}d+=d1;if(d>end){return end;}}return end;
}void mainImage( out vec4 fragColor, in vec2 fragCoord )
{// Normalized pixel coordinates (from -1 to 1)vec2 uv = (2.0*fragCoord-iResolution.xy)/iResolution.xx;float r=0.3;vec3 c=getBackgroundColor(uv);vec3 ro = vec3(0, 0, 7); // ray origin that represents camera positionvec3 rd = normalize(vec3(uv, -1)); // ray directionfloat d=rayMarch(ro,rd,START_DIST,MAX_DIST);if(d<MAX_DIST){//平行光源的漫反射计算vec3 p=ro+rd*d;vec3 n=calcNormal(p);vec3 light_direction=normalize(vec3(1,0,5));vec3 light_color=vec3(1,1,1);float diffuse=max(0.0,dot(n,light_direction));c=light_color*diffuse;}// Output to screenfragColor = vec4(vec3(c),1.0);
}

1.4. 每个球体不同的颜色

如果运行结果是类似下图，该结果不尽人意，光照效果不明显，看起来不像一个球体，而是像一个圆形。请检查 rayMarch 函数，看看是否返回了正确的距离值。

1.4.1. 思路

以前的SDF返回值是距离，现在返回值是距离和颜色，这样每个球体的颜色就不一样了
可以用vec4来表示距离和颜色，vec4(x,y,z,w) x表示距离，y,z,w表示颜色(r,g,b) 或者 x,y,z表示颜色(r,g,b),w表示距离。但这种方式不直观，也不容易理解和扩展
用结构体来表示距离和颜色，结构体中包含距离和颜色

1.4.2. 结构体定义

struct SDFResult
{float d;vec3 color;
};

1.4.3. SDF函数返回值

SDFResult sdSphere(vec3 p, float r,vec3 offset,vec3 color)
{return SDFResult(length(p-offset)-r,color);
}SDFResult minWithColor(SDFResult a,SDFResult b)
{if (a.d<b.d){return a;}return b;
}
SDFResult sdScene(vec3 p)
{SDFResult result1=sdSphere(p,1.0,vec3(-2.5,0.5,-2),vec3(0.,0.8,0.8));SDFResult result2=sdSphere(p,1.0,vec3(2.5,0.5,-2),vec3(1.,0.58,0.29));SDFResult result=minWithColor(result1,result2);return result;
}

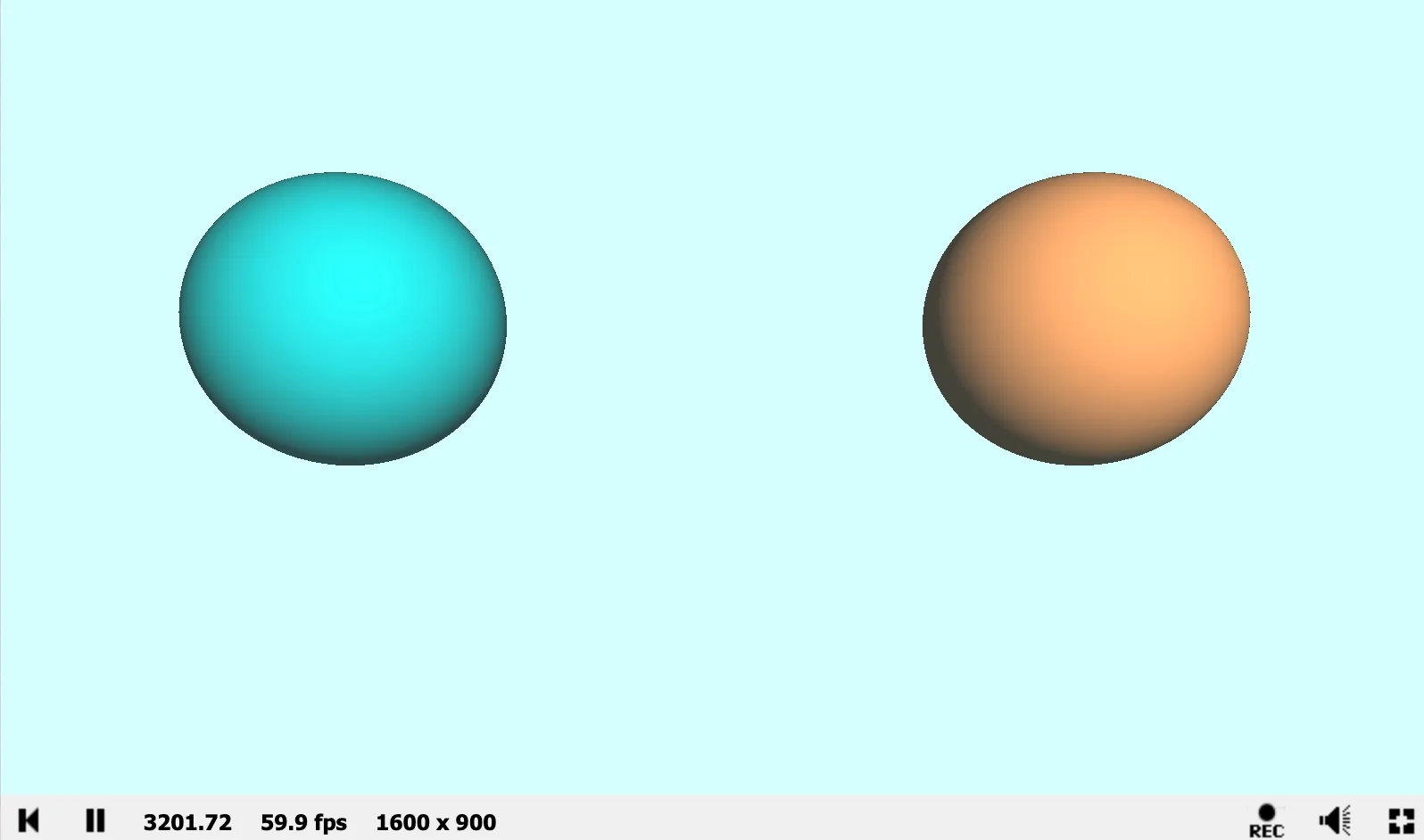

1.4.4. 完整代码

#define PIXW (1./iResolution.y)const int MAX_STEPS = 100;
const float START_DIST = 0.001;
const float MAX_DIST = 100.0;
const float EPSILON = 0.0001;struct SDFResult
{float d;vec3 color;
};vec3 getBackgroundColor(vec2 uv)
{
//uv.y [-1,1]
//y: [0,1] float y=(uv.y+1.)/2.; return mix(vec3(1,0,1),vec3(0,1,1),y);
}SDFResult sdSphere(vec3 p, float r,vec3 offset,vec3 color)
{return SDFResult(length(p-offset)-r,color);
}SDFResult minWithColor(SDFResult a,SDFResult b)
{if (a.d<b.d){return a;}return b;
}
SDFResult sdScene(vec3 p)
{SDFResult result1=sdSphere(p,1.0,vec3(-2.5,0.5,-2),vec3(0.,0.8,0.8));SDFResult result2=sdSphere(p,1.0,vec3(2.5,0.5,-2),vec3(1.,0.58,0.29));SDFResult result=minWithColor(result1,result2);return result;
}
//法线计算
vec3 calcNormal(vec3 p) {vec2 e = vec2(1.0, -1.0) * 0.0005; // epsilonfloat r = 1.; // radius of spherereturn normalize(e.xyy * sdScene(p + e.xyy).d +e.yyx * sdScene(p + e.yyx).d +e.yxy * sdScene(p + e.yxy).d +e.xxx * sdScene(p + e.xxx).d);
}SDFResult rayMarch(vec3 ro, vec3 rd,float start,float end)
{float d=start;float r=1.0;SDFResult result;for(int i=0;i<MAX_STEPS;i++){vec3 p=ro+rd*d;result=sdScene(p);d+=result.d;if(result.d<EPSILON || d>end) break;}result.d=d;return result;
}void mainImage( out vec4 fragColor, in vec2 fragCoord )
{// Normalized pixel coordinates (from -1 to 1)vec2 uv = (2.0*fragCoord-iResolution.xy)/iResolution.xx;float r=0.3;vec3 backgroundColor = vec3(0.835, 1, 1);//vec3 c=getBackgroundColor(uv);vec3 c=backgroundColor;vec3 ro = vec3(0, 0, 3); // ray origin that represents camera positionvec3 rd = normalize(vec3(uv, -1)); // ray directionSDFResult result=rayMarch(ro,rd,START_DIST,MAX_DIST);float d=result.d;if(d<MAX_DIST){//平行光源的漫反射计算vec3 p=ro+rd*d;vec3 n=calcNormal(p);vec3 lightPosition=vec3(2,2,7);//vec3 light_direction=normalize(vec3(1,0,5));vec3 light_direction=normalize(lightPosition-p);vec3 light_color=vec3(1,1,1);float diffuse=max(0.0,dot(n,light_direction));diffuse=clamp(diffuse,0.1,1.0);c=light_color*diffuse*result.color+backgroundColor*0.2;}// Output to screenfragColor = vec4(vec3(c),1.0);
}
