【PyTorch][chapter-39][MOE][Mixtral of experts -PyTorch】[4]

前言：

    这里面重点通过PyTorch 实现Transformer MoE的模型部分



主要有两种架构：

1 一个 Transformer 编码器内部有多个专家。

2  以整体 Transformer 编码器为专家

---

目录：

1：整个 transformer encoder  作为  expert

2：以整体 Transformer 编码器为expert

---

一： 一个 Transformer 编码器内部有多个专家。

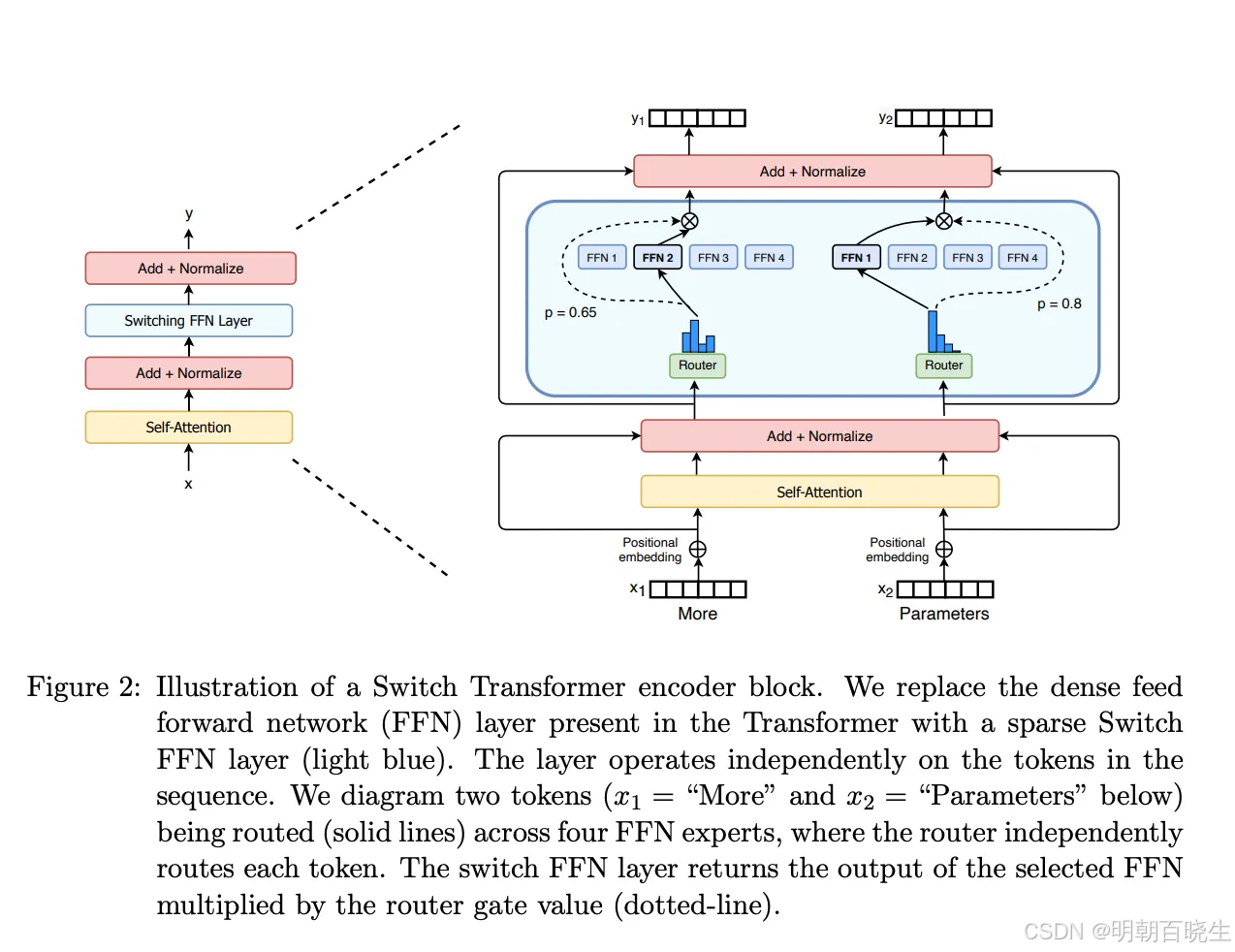

        把 Transformer  FFN 换成多个MoE

    里面的Expert采用了FFN 模型



# -*- coding: utf-8 -*-
"""
Created on Mon Mar 24 11:45:03 2025

@author: chengxf2
"""

import torch
import torch.nn as nn
import torch.nn.functional as F

class Expert(nn.Module):
    """与 Transformer Encoder Layers 中的 FFN 类似的 FFN 专家。"""
    def __init__(self, d_model=512, hidden_dim=1024):
        super(Expert, self).__init__()
        self.input_projection  = nn.Linear(d_model, hidden_dim)
        self.output_projection =  nn.Linear(hidden_dim, d_model)
        self.activation = nn.ReLU()

    def forward(self, x):
        x = self.input_projection(x)
        x = self.activation(x)
        output = self.output_projection(x)
        return output

class Router(nn.Module):
    """用于将 token 分发给专家的路由器。"""
    def __init__(self, d_model, num_experts):
        super(Router, self).__init__()
        self.layer = nn.Linear(d_model, num_experts)

    def  forward(self, x):
        z = self.layer(x)
        output = F.softmax(z,dim=-1)
        return output

class MoE(nn.Module):
    def __init__(self, d_model, num_experts, hidden_dim, top_k=2):
        super(MoE, self).__init__()
        self.experts = nn.ModuleList([Expert(d_model,hidden_dim) for i in range(num_experts)])
        self.router = Router(d_model, num_experts)
        self.top_k = top_k

    def forward(self, x):
       # 为路由器展平为 (token_num, d_model)
       #其中 token_num = batch_size*seq_len

       routing_weights = self.router(x)
       topk_vals, topk_indices = torch.topk(routing_weights, self.top_k, dim=1)
       topk_vals_normalized    = topk_vals / topk_vals.sum(dim=1, keepdim=True)

       outputs = torch.zeros_like(x)
       print("\n topk_vals.shape ",topk_vals.shape)

       for i , expert in enumerate(self.experts):
           #expert_mask.shape: [token_num, top_k]
           expert_mask = (topk_indices==i).float()
           if expert_mask.any():
               #token choice
               #input_to_expert = x.unsqueeze(1).repeat(1,self.top_k,1)*expert_mask
               #inputs_to_expert = x*expert_mask.unsqueeze(-1)
               expert_mask = expert_mask.unsqueeze(-1)
               #print("\n x",x.shape, "\t expert_mask",expert_mask.shape)
               inputs_to_expert = torch.mul(x.unsqueeze(1), expert_mask)

               expert_output = expert(inputs_to_expert)
               #print("\n expert_output: ",expert_output.shape, "\t topk_vals_normalized ", topk_vals_normalized.shape)
               weighted_expert_outputs = expert_output * topk_vals_normalized.unsqueeze(-1)
               outputs += weighted_expert_outputs.sum(dim=1)
       return outputs

class  TransformerEncoderLayerWithMoE (nn.Module):
     def __init__(self, d_model, nhead, num_experts, hidden_dim, dropout, top_k):
        super (TransformerEncoderLayerWithMoE, self).__init__()
        self.self_attn = nn.MultiheadAttention(d_model, nhead, dropout=dropout)
        self.moe = MoE(d_model, num_experts, hidden_dim,top_k)
        # 前馈模型的实现
        self.dropout = nn.Dropout(dropout)
        self.norm1 = nn.LayerNorm(d_model)
        self.norm2 = nn.LayerNorm(d_model)

     def forward(self, src=None, src_mask=None, src_key_padding_mask=None):
        src2 = self.self_attn(src, src, src, attn_mask=src_mask,
                              key_padding_mask=src_key_padding_mask)[ 0 ]
        src = src + self.dropout(src2)
        src = self.norm1(src)
        #print('\n src ',src.shape)
        # 利用专家混合
        batch_size, seq_len, d_model = src.shape
        src = src.view(-1,d_model)

        src2 = self.moe(src)
        src = src + self.dropout(src2)
        src = self.norm2(src)
        src = src.view(batch_size, seq_len,d_model)
        return src

    #Step 3: Initialize the model, the loss and optimizer
num_experts = 8
d_model = 512
nhead = 8
hidden_dim = 1024
dropout = 0.1
num_layers = 3
batch_size = 2
seq_len = 3
d_model = 512
top_k = 2
x = torch.randn(batch_size,seq_len, d_model)

input_dim= 512
# Flatten to (batch_size*seq_len, d_model) for the router
model = TransformerEncoderLayerWithMoE(d_model, nhead, num_experts, hidden_dim, dropout, top_k)
output = model(x)
print(output.shape)






---

二   整个 transformer encoder 作为 expert

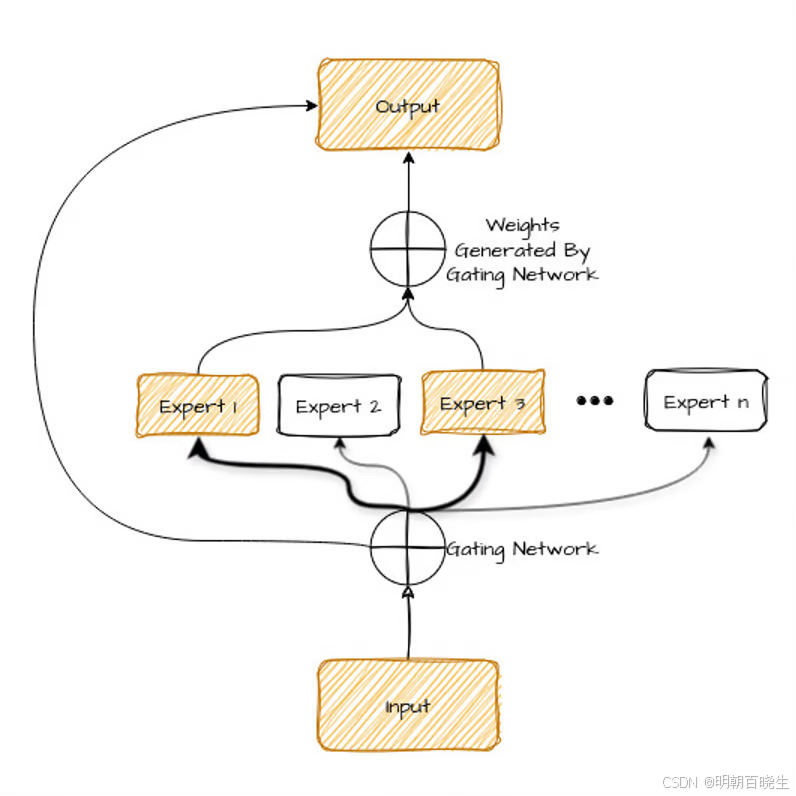

         在这种方法中，我们用多个 Transformer 编码器内部的前馈网络（FFN）作为专家，如下图

     Step 1: Build an Expert Network

     Step 2: Build the Mixture of Experts

     Step 3: Initialize the model, the loss and optimizer

      Step 4: Train the model

# -*- coding: utf-8 -*-
"""
Created on Fri Mar 21 15:58:13 2025

@author: chengxf2
"""
import torch
import torch.nn as nn
import torch.nn.functional as F

class Expert(nn.Module):
    def __init__(self, d_model, nhead, num_layers, input_dim, output_dim):
        super(Expert, self).__init__()
        encoder_layer = nn.TransformerEncoderLayer(d_model=d_model, nhead=nhead)
        self.transformer_encoder = nn.TransformerEncoder(encoder_layer, num_layers=num_layers)
        self.input_projection = nn.Linear(input_dim, d_model)
        self.output_projection = nn.Linear(d_model, output_dim)

    def forward(self, x):
        x = self.input_projection(x)
        x = self.transformer_encoder(x.unsqueeze(0)).squeeze(0)  # Transformer expects (S, N, E), adjusting for N=1
        output =  self.output_projection(x)
        return output

class MixtureOfExperts(nn.Module):
    def __init__(self, num_experts, d_model, nhead, num_layers, input_size, output_size):
        super(MixtureOfExperts, self).__init__()
        self.experts = nn.ModuleList([Expert(d_model, nhead, num_layers, input_size, output_size) for _ in range(num_experts)])
        self.gates = nn.Linear(input_size, num_experts)

    def forward(self, x):
        weights = F.softmax(self.gates(x), dim=1)
        outputs = torch.stack([expert(x) for expert in self.experts], dim=2)
        return (weights.unsqueeze(2) * outputs).sum(dim=2)


class Router(nn.Module):
    def __init__(self, input_dim=512, num_experts=8):
        super().__init__()
        self.layer = nn.Linear(input_dim, num_experts)

    def forward(self, x):

        z = self.layer(x)
        output =  F.softmax(z, dim=-1)
        #print("\n input.shape",x.shape,"\t output", output.shape)
        return output

class MoE(nn.Module):
    def __init__(self, input_dim, output_dim, num_experts, d_model, nhead, num_layers, top_k=2):
        super().__init__()
        self.experts = nn.ModuleList([Expert(d_model, nhead, num_layers, input_dim, output_dim) for _ in range(num_experts)])
        self.router = Router(input_dim, num_experts)
        self.output_dim = output_dim
        self.top_k = top_k

    def forward(self, x):
        token_num = x.size(0)
        #Flatten to (batch_size*seq_len, d_model) for the router
        routing_weights = self.router(x)
        topk_vals, topk_indices = torch.topk(routing_weights, self.top_k, dim=1)
        print("\n topk_vals ",topk_vals.shape, "\n topk_indices",topk_indices)
        topk_vals_normalized = topk_vals / topk_vals.sum(dim=1, keepdim=True)
        outputs = torch.zeros(token_num, self.output_dim, device=x.device)

        for i, expert in enumerate(self.experts):

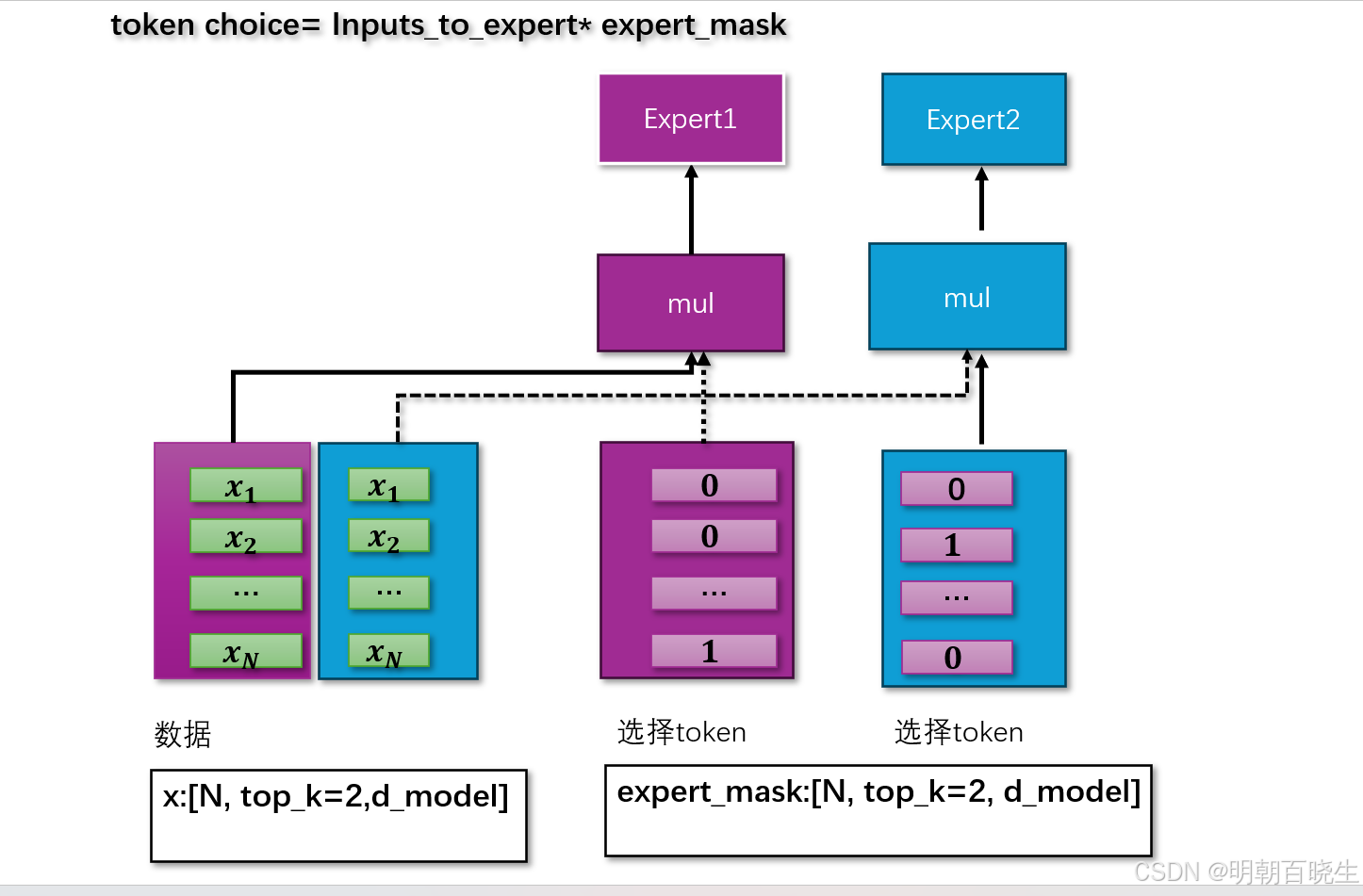

            #当前的expert: token choice
            token_choice = (topk_indices == i).float()
            #print("\n token_choice \n",i,token_choice)
            #print(f"expert{i} \n",expert_mask)
            if token_choice.any():
                #[token_num, k]
                d_model = x.size(1)
                #[token_num,top_k, d_model]
                expert_mask = token_choice.unsqueeze(-1)
                #print(expert_mask.shape)
                expert_mask= expert_mask.expand(-1, -1, d_model)
                inputs_to_expert = x.unsqueeze(1).repeat(1, self.top_k, 1) * expert_mask
                #稀疏
                inputs_to_expert = inputs_to_expert.view(-1, d_model)
                expert_outputs =   expert(inputs_to_expert).view(token_num, self.top_k, -1)
                # Weight outputs by normalized routing probability and sum across selected experts
                weighted_expert_outputs = expert_outputs * topk_vals_normalized.unsqueeze(-1)
                outputs += weighted_expert_outputs.sum(dim=1)
        return outputs

def train():

    #Step 3: Initialize the model, the loss and optimizer
    num_experts = 8
    d_model = 512
    nhead = 8
    num_layers = 3
    batch_size = 2
    seq_len = 3
    d_model = 512
    top_k = 2
    x = torch.randn(batch_size,seq_len, d_model)
    x = x.view(-1,d_model)
    input_dim= 512
    # Flatten to (batch_size*seq_len, d_model) for the router
    model = MoE(input_dim, num_experts, num_experts, d_model, nhead, num_layers, top_k)
    output = model(x)
    print(output.shape)

    '''
    criterion = nn.MSELoss()
    optimizer = torch.optim.Adam(model.parameters(), lr=0.001)

    # Training loop
    for epoch in range(100):
        for i, data in enumerate(dataloader):  # Assume dataloader is defined and provides input and target data
            inputs, targets = data
            optimizer.zero_grad()
            outputs = model(inputs)
            loss = criterion(outputs, targets)
            loss.backward()
            optimizer.step()

        print(f"Epoch {epoch + 1}, Loss: {loss.item()}")

    '''

train()


---
