【Android】Wallpaper学习

news 来源：原创 2025/4/21 12:47:01

从wallpaper的设置来了解相关内容：

一，静态壁纸

静态壁纸设置的原理是在WallpaperManagerService里监听/data/system/users/0/wallpaper_orig相关文件的变化来触发设置，通过相应的组件程序去进行绘制，

相应的组件如：

mWallpaperComponent=ComponentInfo{com.android.systemui/com.android.systemui.wallpapers.ImageWallpaper}

Wallpaper connection com.android.server.wallpaper.WallpaperManagerService$WallpaperConnection@739a4fa:

以下是一个简单的 Android 程序示例，展示如何设置设备的壁纸。程序会从资源文件中加载一张图片，并将其设置为设备的主屏幕壁纸。

1. 项目结构
(1) 添加权限
在 AndroidManifest.xml 中添加设置壁纸的权限：

Xml
深色版本
<uses-permission android:name="android.permission.SET_WALLPAPER" />
(2) 准备壁纸图片
将你想要设置为壁纸的图片放入 res/drawable 目录中，例如命名为 wallpaper_image.jpg。

2. 代码实现
(1) 主 Activity (MainActivity.java)
创建一个按钮，点击后设置壁纸。

Java
深色版本
package com.example.setwallpaper;

import android.app.WallpaperManager;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;

import java.io.IOException;

public class MainActivity extends AppCompatActivity {

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

// 获取按钮控件
Button setWallpaperButton = findViewById(R.id.set_wallpaper_button);

// 设置按钮点击事件
setWallpaperButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
setWallpaper();
}
});
}

private void setWallpaper() {
// 获取 WallpaperManager 实例
WallpaperManager wallpaperManager = WallpaperManager.getInstance(getApplicationContext());

try {
// 加载图片资源
Bitmap wallpaperBitmap = BitmapFactory.decodeResource(getResources(), R.drawable.wallpaper_image);

// 设置壁纸
wallpaperManager.setBitmap(wallpaperBitmap);

// 提示用户成功设置壁纸
Toast.makeText(MainActivity.this, "壁纸设置成功！", Toast.LENGTH_SHORT).show();
} catch (IOException e) {
// 捕获异常并提示用户失败
Toast.makeText(MainActivity.this, "壁纸设置失败！", Toast.LENGTH_SHORT).show();
e.printStackTrace();
}
}
}
(2) 布局文件 (activity_main.xml)
定义一个按钮，用于触发设置壁纸的操作。

Xml
深色版本
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:gravity="center">

</LinearLayout>
3. 运行效果
启动应用后，界面会显示一个按钮。
点击按钮后，应用会从资源文件中加载图片，并将其设置为主屏幕的壁纸。
如果设置成功，会弹出一个 Toast 提示 "壁纸设置成功！"；如果失败，则会提示 "壁纸设置失败！"。
4. 扩展功能
(1) 支持锁屏壁纸
如果你想同时设置主屏幕和锁屏壁纸，可以使用以下代码：

Java
深色版本
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.N) {
// 设置主屏幕壁纸
wallpaperManager.setBitmap(wallpaperBitmap, null, true, WallpaperManager.FLAG_SYSTEM);

// 设置锁屏壁纸
wallpaperManager.setBitmap(wallpaperBitmap, null, true, WallpaperManager.FLAG_LOCK);
} else {
// 对于低版本系统，只能设置主屏幕壁纸
wallpaperManager.setBitmap(wallpaperBitmap);
}
(2) 从相册选择图片
你可以通过 Intent 让用户从相册中选择一张图片作为壁纸：

Java
深色版本
private static final int PICK_IMAGE_REQUEST = 1;

private void openGallery() {
Intent intent = new Intent(Intent.ACTION_PICK);
intent.setType("image/*");
startActivityForResult(intent, PICK_IMAGE_REQUEST);
}

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);

if (requestCode == PICK_IMAGE_REQUEST && resultCode == RESULT_OK && data != null) {
try {
// 获取选中的图片 URI
Uri imageUri = data.getData();

// 将图片转换为 Bitmap
Bitmap wallpaperBitmap = MediaStore.Images.Media.getBitmap(getContentResolver(), imageUri);

// 设置壁纸
WallpaperManager wallpaperManager = WallpaperManager.getInstance(getApplicationContext());
wallpaperManager.setBitmap(wallpaperBitmap);

// 提示用户成功设置壁纸
Toast.makeText(this, "壁纸设置成功！", Toast.LENGTH_SHORT).show();
} catch (Exception e) {
e.printStackTrace();
Toast.makeText(this, "壁纸设置失败！", Toast.LENGTH_SHORT).show();
}
}
}
5. 注意事项
权限问题：
设置壁纸不需要动态申请权限，但如果你从相册选择图片，则需要处理运行时权限（如 READ_EXTERNAL_STORAGE）。

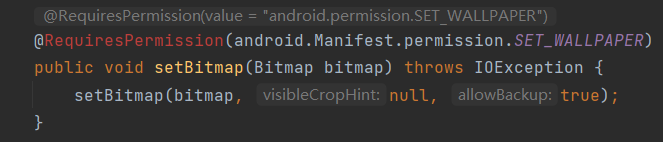

setBitmap的调用，可以查看WallpaperManager.java

    public int setBitmap(Bitmap fullImage, Rect visibleCropHint,boolean allowBackup, @SetWallpaperFlags int which, int userId)throws IOException {validateRect(visibleCropHint);if (sGlobals.mService == null) {Log.w(TAG, "WallpaperService not running");throw new RuntimeException(new DeadSystemException());}final Bundle result = new Bundle();final WallpaperSetCompletion completion = new WallpaperSetCompletion();try {ParcelFileDescriptor fd = sGlobals.mService.setWallpaper(null,mContext.getOpPackageName(), visibleCropHint, allowBackup,result, which, completion, userId);if (fd != null) {FileOutputStream fos = null;try {fos = new ParcelFileDescriptor.AutoCloseOutputStream(fd);fullImage.compress(Bitmap.CompressFormat.PNG, 90, fos);fos.close();completion.waitForCompletion();} finally {IoUtils.closeQuietly(fos);}}} catch (RemoteException e) {throw e.rethrowFromSystemServer();}return result.getInt(EXTRA_NEW_WALLPAPER_ID, 0);}

调用到setWallpaper方法

   @Override
3009      public ParcelFileDescriptor setWallpaper(String name, String callingPackage,
3010              Rect cropHint, boolean allowBackup, Bundle extras, int which,
3011              IWallpaperManagerCallback completion, int userId) {
3012          userId = ActivityManager.handleIncomingUser(getCallingPid(), getCallingUid(), userId,
3013                  false /* all */, true /* full */, "changing wallpaper", null /* pkg */);
3014          checkPermission(android.Manifest.permission.SET_WALLPAPER);
3015
3016          if ((which & (FLAG_LOCK|FLAG_SYSTEM)) == 0) {
3017              final String msg = "Must specify a valid wallpaper category to set";
3018              Slog.e(TAG, msg);
3019              throw new IllegalArgumentException(msg);
3020          }
3021
3022          if (!isWallpaperSupported(callingPackage) || !isSetWallpaperAllowed(callingPackage)) {
3023              return null;
3024          }
3025
3026          // "null" means the no-op crop, preserving the full input image
3027          if (cropHint == null) {
3028              cropHint = new Rect(0, 0, 0, 0);
3029          } else {
3030              if (cropHint.width() < 0 || cropHint.height() < 0
3031                      || cropHint.left < 0
3032                      || cropHint.top < 0) {
3033                  throw new IllegalArgumentException("Invalid crop rect supplied: " + cropHint);
3034              }
3035          }
3036
3037          synchronized (mLock) {
3038              if (DEBUG) Slog.v(TAG, "setWallpaper which=0x" + Integer.toHexString(which));
3039              WallpaperData wallpaper;
3040              final WallpaperData originalSystemWallpaper = mWallpaperMap.get(userId);
3041              final boolean systemIsStatic =
3042                      originalSystemWallpaper != null && mImageWallpaper.equals(
3043                              originalSystemWallpaper.wallpaperComponent);
3044              final boolean systemIsBoth = mLockWallpaperMap.get(userId) == null;
3045
3046              /* If we're setting system but not lock, and lock is currently sharing the system
3047               * wallpaper, we need to migrate that image over to being lock-only before
3048               * the caller here writes new bitmap data.
3049               */
3050              if (which == FLAG_SYSTEM && systemIsStatic && systemIsBoth) {
3051                  Slog.i(TAG, "Migrating current wallpaper to be lock-only before"
3052                          + " updating system wallpaper");
3053                  if (!migrateStaticSystemToLockWallpaperLocked(userId)
3054                          && !isLockscreenLiveWallpaperEnabled()) {
3055                      which |= FLAG_LOCK;
3056                  }
3057              }
3058
3059              wallpaper = getWallpaperSafeLocked(userId, which);
3060              if (mPendingMigrationViaStatic != null) {
3061                  Slog.w(TAG, "Starting new static wp migration before previous migration finished");
3062              }
3063              mPendingMigrationViaStatic = new WallpaperDestinationChangeHandler(wallpaper);
3064              final long ident = Binder.clearCallingIdentity();
3065              try {
3066                  ParcelFileDescriptor pfd = updateWallpaperBitmapLocked(name, wallpaper, extras);
3067                  if (pfd != null) {
3068                      wallpaper.imageWallpaperPending = true;
3069                      wallpaper.mSystemWasBoth = systemIsBoth;
3070                      wallpaper.mWhich = which;
3071                      wallpaper.setComplete = completion;
3072                      wallpaper.fromForegroundApp = isFromForegroundApp(callingPackage);
3073                      wallpaper.cropHint.set(cropHint);
3074                      wallpaper.allowBackup = allowBackup;
3075                      wallpaper.mWallpaperDimAmount = getWallpaperDimAmount();
3076                  }
3077                  return pfd;
3078              } finally {
3079                  Binder.restoreCallingIdentity(ident);
3080              }
3081          }
3082      }

又调用到

updateWallpaperBitmapLocked


3121      ParcelFileDescriptor updateWallpaperBitmapLocked(String name, WallpaperData wallpaper,
3122              Bundle extras) {
3123          if (name == null) name = "";
3124          try {
3125              File dir = getWallpaperDir(wallpaper.userId);
3126              if (!dir.exists()) {
3127                  dir.mkdir();
3128                  FileUtils.setPermissions(
3129                          dir.getPath(),
3130                          FileUtils.S_IRWXU|FileUtils.S_IRWXG|FileUtils.S_IXOTH,
3131                          -1, -1);
3132              }
3133              ParcelFileDescriptor fd = ParcelFileDescriptor.open(wallpaper.wallpaperFile,
3134                      MODE_CREATE|MODE_READ_WRITE|MODE_TRUNCATE);
3135              if (!SELinux.restorecon(wallpaper.wallpaperFile)) {
3136                  Slog.w(TAG, "restorecon failed for wallpaper file: " +
3137                          wallpaper.wallpaperFile.getPath());
3138                  return null;
3139              }
3140              wallpaper.name = name;
3141              wallpaper.wallpaperId = makeWallpaperIdLocked();
3142              if (extras != null) {
3143                  extras.putInt(WallpaperManager.EXTRA_NEW_WALLPAPER_ID, wallpaper.wallpaperId);
3144              }
3145              // Nullify field to require new computation
3146              wallpaper.primaryColors = null;
3147              Slog.v(TAG, "updateWallpaperBitmapLocked() : id=" + wallpaper.wallpaperId
3148                      + " name=" + name + " file=" + wallpaper.wallpaperFile.getName());
3149              return fd;
3150          } catch (FileNotFoundException e) {
3151              Slog.w(TAG, "Error setting wallpaper", e);
3152          }
3153          return null;
3154      }

二，动态壁纸

在 Android 中开发动态壁纸需要使用 WallpaperService 和 Engine 类。动态壁纸本质上是一个服务，它运行在后台并持续渲染内容到用户的主屏幕或锁屏上。

以下是开发一个简单动态壁纸的步骤和示例代码：

1. 创建动态壁纸项目
(1) 添加权限
在 AndroidManifest.xml 中声明动态壁纸服务，并添加必要的权限。

Xml
深色版本
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.example.dynamicwallpaper">

<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:theme="@style/Theme.AppCompat.Light.NoActionBar">


<service
android:name=".MyWallpaperService"
android:label="@string/wallpaper_label"

android:exported="true"

android:permission="android.permission.BIND_WALLPAPER">

<intent-filter>
<action android:name="android.service.wallpaper.WallpaperService" />
</intent-filter>

<meta-data
android:name="android.service.wallpaper"
android:resource="@xml/wallpaper_info" />
</service>
</application>
</manifest>
(2) 创建动态壁纸元数据文件
在 res/xml 目录下创建一个 XML 文件（例如 wallpaper_info.xml），用于描述动态壁纸的元信息。

Xml
深色版本
<wallpaper
xmlns:android="http://schemas.android.com/apk/res/android"
android:thumbnail="@drawable/thumbnail_image"
android:description="@string/wallpaper_description"
android:settingsActivity="com.example.dynamicwallpaper.SettingsActivity" />
android:thumbnail：动态壁纸的缩略图。
android:description：动态壁纸的描述。
android:settingsActivity（可选）：设置界面的 Activity。
2. 实现动态壁纸服务
(1) 继承 WallpaperService
创建一个类继承 WallpaperService，并实现其抽象方法。

package com.example.dynamicwallpaper;

import android.service.wallpaper.WallpaperService;
import android.view.SurfaceHolder;

public class MyWallpaperService extends WallpaperService {

@Override
public Engine onCreateEngine() {
return new MyWallpaperEngine();
}

private class MyWallpaperEngine extends Engine {

private boolean isVisible = false;

private final Handler handler = new Handler();

@Override
public void onCreate(SurfaceHolder surfaceHolder) {
super.onCreate(surfaceHolder);
// 初始化操作
}

@Override
public void onVisibilityChanged(boolean visible) {
this.isVisible = visible;
if (visible) {
drawFrame();
}
}

@Override
public void onDestroy() {
super.onDestroy();
// 清理资源
}

private void drawFrame() {
if (!isVisible) {
return;
}

SurfaceHolder holder = getSurfaceHolder();
Canvas canvas = null;

try {
canvas = holder.lockCanvas();
if (canvas != null) {
// 在这里绘制你的动态内容
drawOnCanvas(canvas);
}
} finally {
if (canvas != null) {
holder.unlockCanvasAndPost(canvas);
}
}

// 循环绘制下一帧
handler.removeCallbacks(drawRunner);
if (isVisible) {
handler.postDelayed(drawRunner, 16); // 每 16ms 更新一次（约 60fps）
}
}

private final Runnable drawRunner = new Runnable() {
@Override
public void run() {
drawFrame();
}
};

private void drawOnCanvas(Canvas canvas) {
// 示例：绘制一个简单的渐变色背景
Paint paint = new Paint();
LinearGradient gradient = new LinearGradient(
0, 0, canvas.getWidth(), canvas.getHeight(),
Color.RED, Color.BLUE, Shader.TileMode.CLAMP);
paint.setShader(gradient);
canvas.drawRect(0, 0, canvas.getWidth(), canvas.getHeight(), paint);
}
}
}
3. 运行和测试
安装应用：
将 APK 安装到设备上。
设置动态壁纸：
打开设备的设置 > 壁纸 > 选择壁纸。

这里可以看到注册了wallpaperService的程序

找到你的动态壁纸并设置。
查看效果：
返回主屏幕，你应该能看到动态壁纸在运行。

设置动态壁纸的log

04-20 20:39:25.432  2392  3859 W WallpaperManagerService: getWallpaperIdForUser wallpaper = WallpaperData@f4ca951, id: 10, which: 6, file mod: 1745150434978, no connection, type = 0, userId = 0, uri= null, wallpaperComponent = null, nextWallpaperComponent = null
04-20 20:39:34.437  2392  2705 D SemWallpaperManagerService: getModeEnsuredWhich: detected which = 7
04-20 20:39:34.437  2392  2705 V WallpaperManagerService: setWallpaperComponent name=ComponentInfo{com.example.testmac/com.example.testmac.MyWallpaperService} , which = 7 , coverWallpaperInfo = null
04-20 20:39:34.438  2392  2705 D WALLPAPER_SVC:WallpaperManagerService: Wallpaper file is changed or deleted. Delete previous cropped bitmap
04-20 20:39:34.449  2392  2705 D WALLPAPER_SVC:WallpaperManagerService: bindComponentNow 7
04-20 20:39:34.449  2392  2705 V WallpaperManagerService: bindWallpaperComponentLocked: componentName=ComponentInfo{com.example.testmac/com.example.testmac.MyWallpaperService} force=false
04-20 20:39:34.449  2392  2705 D WallpaperManagerService: WPMS.bindWallpaperComponentLocked-ComponentInfo{com.example.testmac/com.example.testmac.MyWallpaperService}
04-20 20:39:34.454  2392  2705 D WALLPAPER_SVC:WallpaperManagerService: bindService success connect : com.android.server.wallpaper.WallpaperManagerService$WallpaperConnection@c843b0d
04-20 20:39:34.454  2392  2392 D WallpaperManagerService: WPMS.onServiceConnected-ComponentInfo{com.example.testmac/com.example.testmac.MyWallpaperService}
04-20 20:39:34.456  2392  2705 V WallpaperManagerService: Removing window token: android.os.Binder@56ab743 , mDisplayId = 0
04-20 20:39:34.459  2392  2705 D WallpaperManagerService: wallpaper userId = 0 , current user Id = 0
04-20 20:39:34.460  2392  2705 V WallpaperManagerService: WPMS.bindWallpaperComponentLocked-ComponentInfo{com.example.testmac/com.example.testmac.MyWallpaperService} took to complete: 11ms
04-20 20:39:34.466  2392  2705 V WallpaperManagerService: notifyWallpaperColorsChangedOnDisplay 1

调用到bindWallpaperComponentLocked

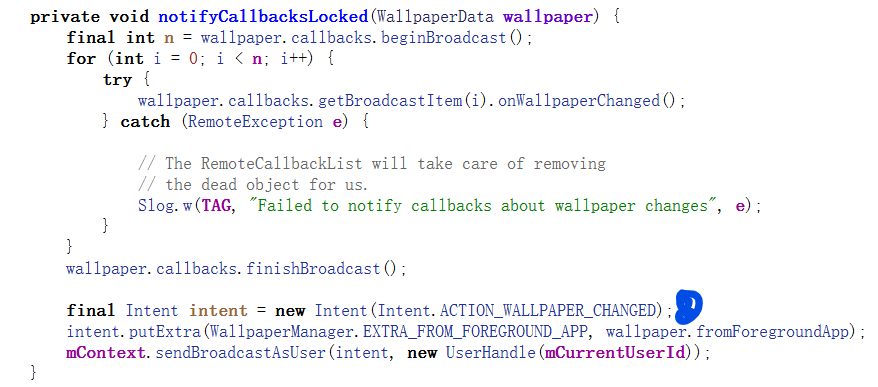

广播
