【NCCL】transport建立（一）

transport建立

NCCL transport建立主要在ncclTransportP2pSetup函数中实现。

概况

先简单概括一下ncclTransportP2pSetup函数做了哪些事，方便理解代码流程。
recvpeer 表示本卡作为接收端的对端，sendpeer 表示本卡作为发送端的对端。假设8个rank全连接，第一次循环时，rank0的recvpeer就是7，rank0的sendpeer就是1，第二次循环，rank0的recvpeer就是6，rank1的sendpeer就是2，以此类推。
ncclTransportP2pSetup函数中会根据recvpeer去索引通道mask，根据mask来判断两个rank之间有多少通道，对于每个 channel ，rank与rank之间要建立通信，先通过调用 selectTransport<0>()设置接收方向相关通信数据，再通过selectTransport<1>()设置发送方向相关通信数据。
注意，对于ring连接来说，只有第一次循环中mask是有值的，也就是上面举例recvpeer为7和sendpeer为1时，对应的索引mask有值。
每一次调用selectTransport函数，都会遍历所有的transport，包含有以下：

struct ncclTransport* ncclTransports[NTRANSPORTS] = {&p2pTransport,&shmTransport,&netTransport,&collNetTransport
};

依次调用transport中canConnect接口，判断当前两个rank之间是否可以通过该协议通信，如果可以通信，则依次调用setup接口和proxySetup接口。
接收方向相关通信数据和发送方向相关通信数据都设置好之后，会和recvpeer以及sendpeer交换这些数据。注意，不同transport，这些数据内容和用途是不一样的。
凑齐maxPeers（默认128）个数或nrank个数，则一次完成connect操作。maxPeers的出现是为了防止一直建链太多导致资源不够或超时。
transport中接口调用流程：

本端作为接收端 CanConnect() -> RecvSetup() -> RecvProxySetup() -> 交换数据 -> RecvConnect()
本端作为发送端 CanConnect() -> SendSetup() -> SendProxySetup() -> 交换数据 -> SendConnect()

本端作为接收端设置接收方向相关通信数据

对于本端作为接收端，调用以下流程：

for (int c=0; c<MAXCHANNELS; c++) {if (recvMask & (1UL<<c)) {//根据通道掩码建链//0表示接收//先调用接口判断两个rank之间可以通过什么传输层来建立连接//然后调用传输层setup接口//最后setup接口中又会调用 ProxySetup 接口NCCLCHECKGOTO(selectTransport<0>(comm, graph, recvData[p]+recvChannels++, c, recvPeer, connIndex, &type), ret, fail);}}

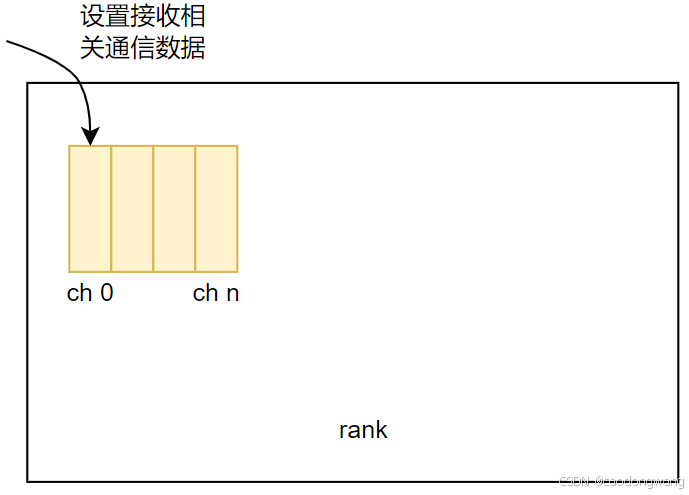

上面流程其实就是为每个接收方向通道设置相关通信数据，如下图所示：

本端作为发送端设置发送方向相关通信数据

对于本端作为发送端，调用以下流程：

for (int c=0; c<MAXCHANNELS; c++) {if (sendMask & (1UL<<c)) {//1表示发送//先调用接口判断两个rank之间可以通过什么传输层来建立连接//然后调用传输层setup接口//最后setup接口中又会调用 ProxySetup 接口NCCLCHECKGOTO(selectTransport<1>(comm, graph, sendData[p]+sendChannels++, c, sendPeer, connIndex, &type), ret, fail);}}

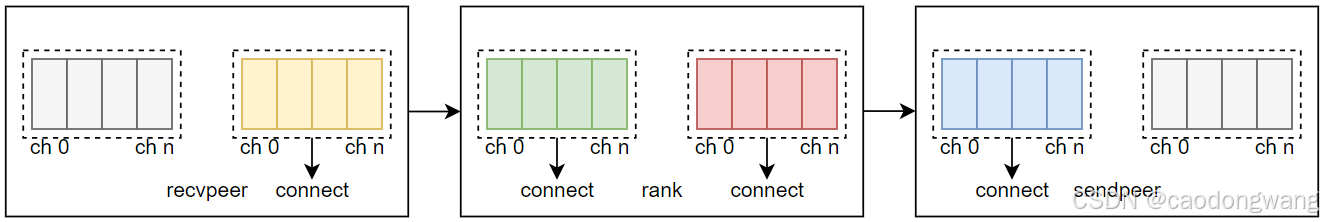

上面流程其实就是为每个发送方向通道设置相关通信数据，如下图所示：

交换数据

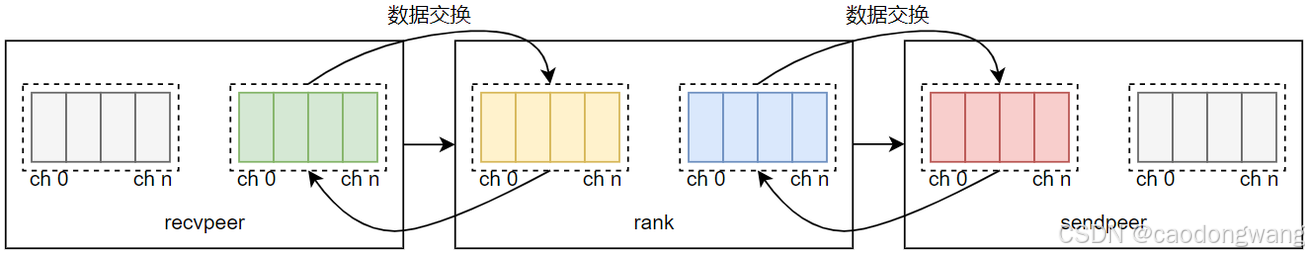

将本rank和前后rank之间数据进行交换，如下图所示：

交换之后，本rank就拿到了前后两个rank通信相关数据，凑齐maxPeers（默认128）个数或nrank个数，则调用transport中的connect接口一次完成connect操作，connect函数会根据交换得来的数据做一些初始化操作，为数据传输准备控制面数据。

接下来看看p2pTransport和netTransport具体干了什么事，对于其他transport，本文暂且不表。

p2pTransport

调用p2pCanConnect接口来判断两个rank是否能支持P2P连接。

ncclResult_t p2pCanConnect(int* ret, struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* info1, struct ncclPeerInfo* info2) {initCeOperation();// Check topology / p2p level.int intermediateRank;//用于检查两个 GPU 是否支持点对点（P2P）通信，主要检查路径类型是否小于等于PATH_PXB、当前连接状态是否okNCCLCHECK(ncclTopoCheckP2p(comm, comm->topo, info1->rank, info2->rank, ret, NULL, &intermediateRank));if (*ret == 0) return ncclSuccess;if (intermediateRank != -1) {if (useMemcpy) *ret = 0;return ncclSuccess;}// Check if NET would work better，使用net是否能更好的工作// 路径类型小于等于PATH_PXB，带宽更大，则使用netint useNet = 0;NCCLCHECK(ncclTopoCheckNet(comm->topo, info1->rank, info2->rank, &useNet));if (useNet) {*ret = 0;return ncclSuccess;}if (info1->hostHash != comm->peerInfo[comm->rank].hostHash ||info1->hostHash != info2->hostHash) {//如果不是同一个主机// If either peer is non-local then we are done.return ncclSuccess;}// Convert the peer's busId into a local cudaDev index (cf. CUDA_VISIBLE_DEVICES)int cudaDev1 = busIdToCudaDev(info1->busId);int cudaDev2 = busIdToCudaDev(info2->busId);if (cudaDev1 == -1 || cudaDev2 == -1) {
#if CUDART_VERSION >= 10010// CUDA 10.1 and later can use P2P with invisible devices.return ncclSuccess;
#else// Peer's CUDA device is not visible in this process : we can't communicate with it.*ret = 0;return ncclSuccess;
#endif}// Check that CUDA can do P2Pint p2p;//检查两个 GPU 设备之间是否支持点对点（P2P）直接内存访问, 1 表示支持 P2P，0 表示不支持if (cudaDeviceCanAccessPeer(&p2p, cudaDev1, cudaDev2) != cudaSuccess) {INFO(NCCL_INIT|NCCL_P2P,"peer query failed between dev %d(=%lx) and dev %d(=%lx)",cudaDev1, info1->busId, cudaDev2, info2->busId);*ret = 0;return ncclSuccess;}// This will always fail when using NCCL_CUMEM_ENABLE=1if (p2p != 0 && !ncclCuMemEnable()) {//ncclCuMemEnable默认使能// Cached result of the legacyIPC detectionstatic int legacyIPC = -1;if (legacyIPC >= 0) {*ret = legacyIPC;return ncclSuccess;}// Check that legacy IPC support is available (WSL WAR)char *dummy;cudaIpcMemHandle_t ipc;NCCLCHECK(ncclCudaMalloc(&dummy, CUDA_IPC_MIN));if (cudaIpcGetMemHandle(&ipc, dummy) != cudaSuccess) {INFO(NCCL_INIT|NCCL_P2P,"Legacy IPC not supported");*ret = 0;}NCCLCHECK(ncclCudaFree(dummy));legacyIPC = *ret;return ncclSuccess;}if (p2p == 0) {INFO(NCCL_INIT|NCCL_P2P,"Could not enable P2P between dev %d(=%lx) and dev %d(=%lx)",cudaDev1, info1->busId, cudaDev2, info2->busId);*ret = 0;return ncclSuccess;}return ncclSuccess;
}

在交换信息之后，执行p2pRecvConnect动作，代码如下：

static ncclResult_t p2pSendConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* send) {struct p2pResources* resources = (struct p2pResources*)send->transportResources;struct ncclRecvMem* remDevMem = NULL;struct p2pConnectInfo* info = (struct p2pConnectInfo*)connectInfo;//对端作为接收方申请的通道信息，如内存//本端存储对端作为接收端申请的内存到remDevMemNCCLCHECK(p2pMap(comm, &send->proxyConn, comm->peerInfo+rank, comm->peerInfo+info->rank, &info->p2pBuff, (void**)&remDevMem, &resources->recvMemIpc));resources->recvMemSameProc = P2P_SAME_PID((comm->peerInfo + rank), (comm->peerInfo + info->rank));char* buff = (char*)(remDevMem+1);for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {if (info->read && p == NCCL_PROTO_SIMPLE) {/* For P2P Read the SIMPLE buffer is local (ncclSendMem) */if (resources->sendDevMem == NULL) return ncclInternalError; // We should not use read + memcpysend->conn.buffs[p] = (char*)(resources->sendDevMem+1);//当NCCL_PROTO_SIMPLE，接收地址在本端} else {send->conn.buffs[p] = buff;//为本端数据结构中记录对端接收BUF地址，该地址是对端申请出来的buff += comm->buffSizes[p];}}send->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;//默认512kif (useMemcpy) {send->conn.tail = &resources->proxyInfo.ceRecvMem->tail;send->conn.connFifo = resources->proxyInfo.ceRecvMem->connFifo;send->conn.head = &resources->proxyInfo.devShm->sendMem.head;// Send SIMPLE buff to proxy, and replace it by local bufferNCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgConnect, &send->conn.buffs[NCCL_PROTO_SIMPLE], sizeof(void*), NULL, 0));send->conn.buffs[NCCL_PROTO_SIMPLE] = resources->proxyInfo.ceDevBuff;} else {send->conn.tail = &remDevMem->tail;//设置tail地址为对端内存tail变量地址send->conn.head = &resources->sendDevMem->head;//设置head地址为本端内存head变量地址send->conn.ptrExchange = &resources->sendDevMem->ptrExchange;send->conn.redOpArgExchange = resources->sendDevMem->redOpArgExchange;}// We must assign the proxyConn's proxyProgress property for proper checking at enqueue-timesend->proxyConn.proxyProgress = p2pTransport.send.proxyProgress;return ncclSuccess;
}

整体图解

直接看代码可能比较难以理解，还是用图来解释清晰点。
后续以单通道且支持P2P read举例。

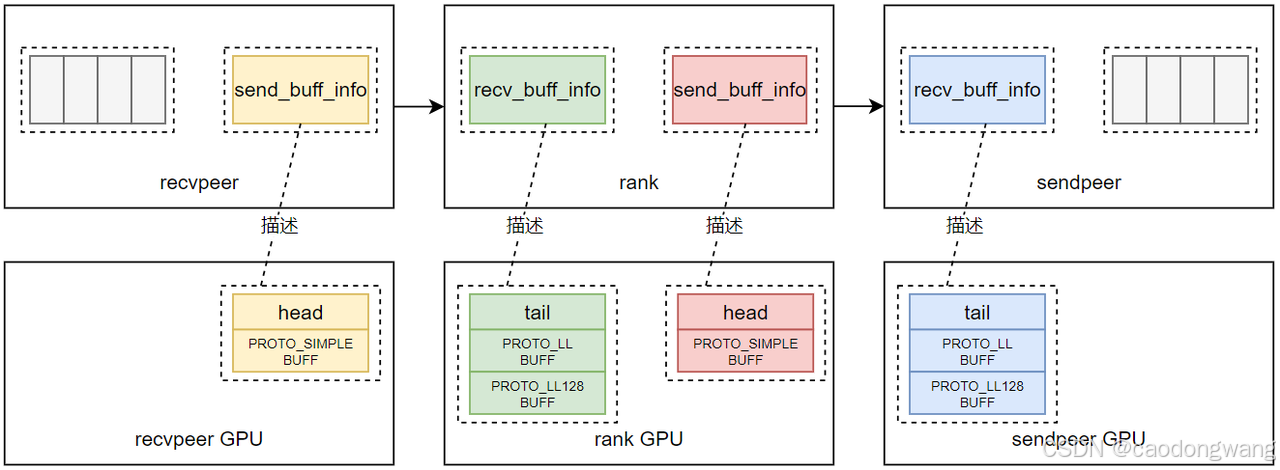

recv/send执行完 CanConnect() -> Setup() -> ProxySetup()之后，结果如下图所示。

rank执行CanConnect() -> RecvSetup() -> RecvProxySetup()之后，将在GPU上创建一块BUFF，里面包含一些变量和接收缓存区，变量中最重要的就是tail，接收缓存区分为两种，一种是PROTO_LL用的缓存区，另一种是PROTO_LL128用的缓冲区。rank在host内存中会用一个p2pConnectInfo结构描述GPU分配的接收内存，这里为了区分recv和send，用recv_buff_info表征描述接收内存。
rank执行CanConnect() -> SendSetup() -> SendProxySetup()之后，将在GPU上创建一块BUFF，里面包含一些变量和发送缓存区，变量中最重要的就是head，发送缓存区是PROTO_SIMPLE用的缓存区。rank在host内存中会用一个p2pConnectInfo结构描述GPU分配的接收内存，这里为了区分recv和send，用send_buff_info表征描述发送内存。

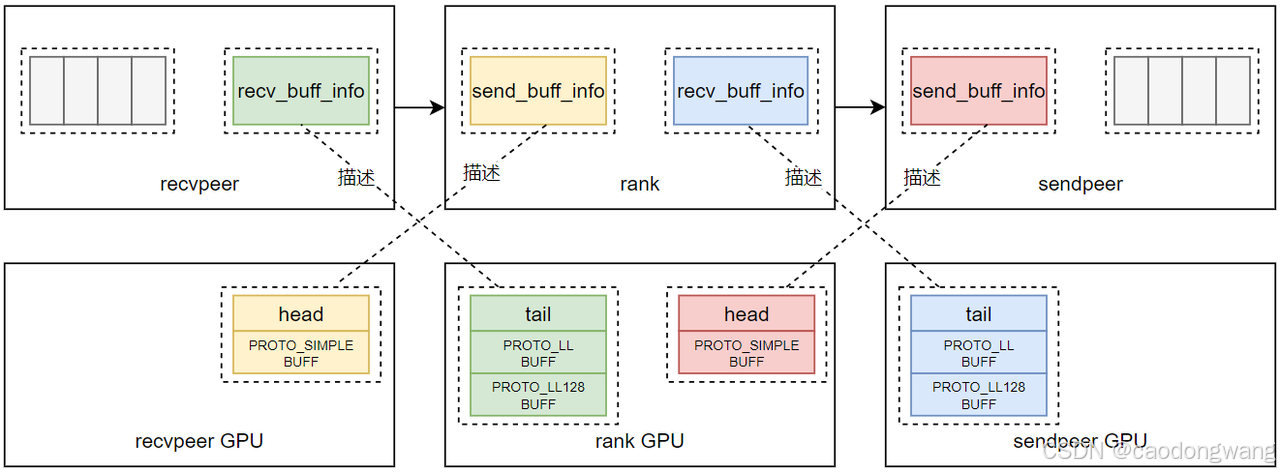

交换数据之后如图所示。

这样rank拿到了前后两个rank相应buff描述结构。

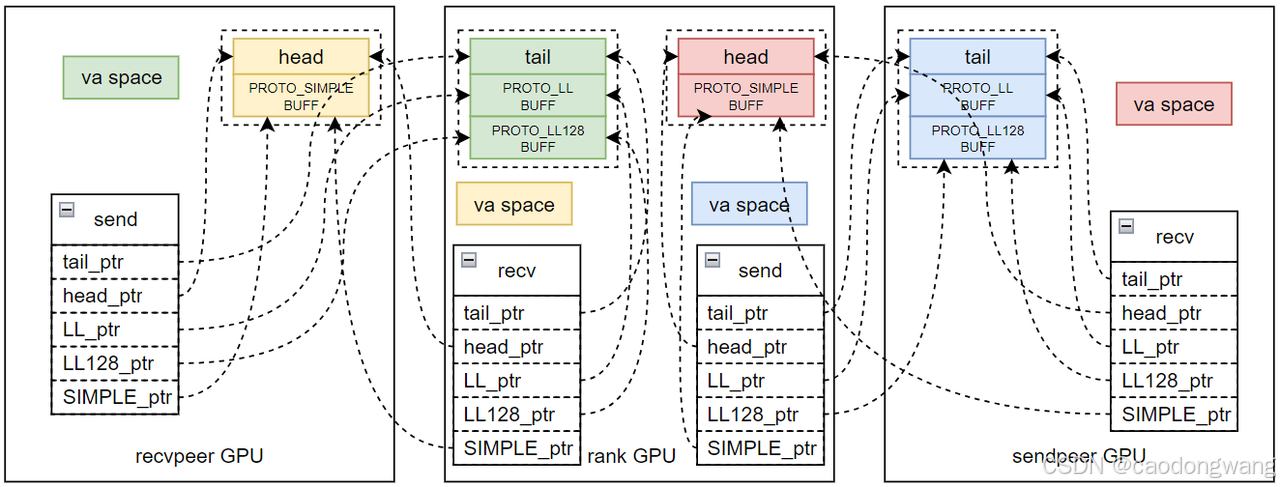

执行connect之后如下所示。

rank根据send_buff_info和recv_buff_info信息，将recvpeer GPU send buff内存和sendpeer GPU recv bufff内存导入到自己的虚拟地址空间，让rank和rank GPU都能直接访问两个buff。
接下来就是将信息规整一下，为数据传输做准备，如下所示。

P2P数据传输使用生产者消费者模型，即recvpeer GPU将数据写入rank GPU的某个buff中并更新rank GPU的tail，然后rank GPU检测到tail更新，则将数据取出放到真正的数据buff中，接着更新recvpeer GPU的head，完成一轮交互（拷贝方式）。

netTransport

接下来说说netTransport是怎么玩的。
调用canConnect接口来判断两个rank是否能支持net连接。

static ncclResult_t canConnect(int* ret, struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* info1, struct ncclPeerInfo* info2) {*ret = 1;if (info1->hostHash == info2->hostHash) {// If on the same host, check intra-node net is not disabled.NCCLCHECK(ncclTopoCheckNet(comm->topo, info1->rank, info2->rank, ret));}return ncclSuccess;
}

判断方法很简单，对于不同主机，默认可以建立连接，对于同一主机，检查用户是否通过环境变量关闭主机内net连接即可。

本端作为接收端设置接收方向相关通信数据

先调用recvSetup，代码如下。

static ncclResult_t recvSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* recv, int channelId, int connIndex) {struct setupReq req = { 0 };recv->conn.shared = req.shared = graph || connIndex == 0 ? 0 : ncclParamNetSharedBuffers() != -2 ? ncclParamNetSharedBuffers() : 1;req.channelId = channelId;req.connIndex = connIndex;// Use myInfo->rank as the receiver uses its own NICint proxyRank;int64_t netId;NCCLCHECK(ncclTopoGetNetDev(comm, myInfo->rank, graph, channelId, myInfo->rank, &netId, &req.netDev, &proxyRank));//检查是否支持GDR，即gpu和net都支持gdr且路径小于等于PATH_PXBNCCLCHECK(ncclTopoCheckGdr(comm->topo, myInfo->rank, netId, 0, &req.useGdr));recv->conn.flags |= req.useGdr ? NCCL_DIRECT_NIC : 0;if (!req.useGdr && connIndex == 0) comm->useGdr = 0;// Determine whether we need to flush the GDR buffer on recv or not//确定是否需要在接收时刷新GDR缓冲区，某些gpu不需要flush动作if (req.useGdr) NCCLCHECK(ncclTopoNeedFlush(comm, req.netDev, myInfo->rank, &req.needFlush));// We don't support PXN on receive yet//连接本地网络，为调用ncclProxyCallBlocking做准备，会创建一个proxyProgress代理线程NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_NET, 0, myInfo->rank, &recv->proxyConn));req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];req.tpRank = comm->topParentRanks[myInfo->rank];req.tpRemoteRank = comm->topParentRanks[peerInfo->rank];//调用 recvProxySetupNCCLCHECK(ncclProxyCallBlocking(comm, &recv->proxyConn, ncclProxyMsgSetup, &req, sizeof(req), connectInfo, sizeof(ncclNetHandle_t)));memcpy((uint8_t*)connectInfo + sizeof(ncclNetHandle_t), &req.useGdr, sizeof(int));INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [receive] via NET/%s/%d%s%s", channelId, connIndex, peerInfo->rank, peerInfo->nvmlDev, myInfo->rank, myInfo->nvmlDev, comm->ncclNet->name, req.netDev,req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");return ncclSuccess;
}

其中最主要的是调用了ncclProxyConnect和ncclProxyCallBlocking，我们先看ncclProxyConnect做了什么，代码如下。

ncclResult_t ncclProxyConnect(struct ncclComm* comm, int transport, int send, int proxyRank, struct ncclProxyConnector* proxyConn) {struct ncclSocket* sock;int ready;struct ncclProxyState* sharedProxyState = comm->proxyState;int tpProxyRank = comm->topParentRanks[proxyRank];//获取rank的父节点proxyConn->sameProcess = ((comm->peerInfo[proxyRank].hostHash == comm->peerInfo[comm->rank].hostHash) &&(comm->peerInfo[proxyRank].pidHash == comm->peerInfo[comm->rank].pidHash)) ? 1 : 0;// Keep one connection per local rankproxyConn->connection = NULL;proxyConn->tpRank = tpProxyRank;proxyConn->rank = proxyRank;if (sharedProxyState->peerSocks == NULL) {NCCLCHECK(ncclCalloc(&sharedProxyState->peerSocks, comm->sharedRes->tpNLocalRanks));NCCLCHECK(ncclCalloc(&sharedProxyState->proxyOps, comm->sharedRes->tpNLocalRanks));NCCLCHECK(ncclCalloc(&sharedProxyState->sharedDevMems, comm->sharedRes->tpNLocalRanks));for (int i = 0; i < comm->sharedRes->tpNLocalRanks; ++i) {//确保每个本地 Rank 有独立的 Socket 和资源，避免竞争。NCCLCHECK(ncclSocketSetFd(-1, &sharedProxyState->peerSocks[i]));}}//初始化并连接到目标代理的 SocketproxyConn->tpLocalRank = comm->sharedRes->tpRankToLocalRank[proxyConn->tpRank];sock = sharedProxyState->peerSocks + proxyConn->tpLocalRank;NCCLCHECK(ncclSocketReady(sock, &ready));if (!ready) {NCCLCHECK(ncclSocketInit(sock, sharedProxyState->peerAddresses+proxyConn->tpRank, comm->sharedRes->magic, ncclSocketTypeProxy, comm->abortFlag));NCCLCHECK(ncclSocketConnect(sock));}struct ncclProxyInitReq req = {0};req.transport = transport;req.send = send;req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];req.tpRank = comm->topParentRanks[comm->rank];req.sameProcess = proxyConn->sameProcess;struct ncclProxyInitResp resp = {0};// This usually sends proxyConn->connection to identify which connection this is.// However, this is part of the response and therefore is ignored//连接ProxyServer线程，初始化connection相关信息，如果传输层支持ProxyProgress，则创建ProxyProgress线程（NET）NCCLCHECK(ncclProxyCallBlocking(comm, proxyConn, ncclProxyMsgInit, &req, sizeof(req), &resp, sizeof(resp)));proxyConn->connection = resp.connection;// If we need proxy progress, map progress opsstruct ncclTransportComm* tcomm = send ? &ncclTransports[transport]->send : &ncclTransports[transport]->recv;if (tcomm->proxyProgress) {char poolPath[] = "/dev/shm/nccl-XXXXXX";strncpy(poolPath+sizeof("/dev/shm/nccl-")-1, resp.devShmPath, sizeof("XXXXXX")-1);struct ncclProxyOps* proxyOps = sharedProxyState->proxyOps + proxyConn->tpLocalRank;if (proxyOps->pool == NULL) {NCCLCHECK(ncclShmOpen(poolPath, sizeof(poolPath), sizeof(struct ncclProxyOpsPool), (void**)(&proxyOps->pool), NULL, -1, &proxyOps->handle));proxyOps->nextOps = proxyOps->nextOpsEnd = proxyOps->freeOp = -1;}}proxyConn->initialized = true;INFO(NCCL_NET|NCCL_PROXY, "Connected to proxy localRank %d -> connection %p", proxyConn->tpLocalRank, proxyConn->connection);return ncclSuccess;
}static ncclResult_t proxyConnInit(struct ncclProxyLocalPeer* peer, struct ncclProxyConnectionPool* connectionPool, struct ncclProxyState* proxyState, ncclProxyInitReq* req, ncclProxyInitResp* resp, struct ncclProxyConnection** connection) {int id;NCCLCHECK(ncclProxyNewConnection(connectionPool, &id));NCCLCHECK(ncclProxyGetConnection(connectionPool, id, connection));(*connection)->sock = &peer->sock;(*connection)->transport = req->transport;(*connection)->send = req->send;(*connection)->tpLocalRank = req->tpLocalRank;(*connection)->sameProcess = req->sameProcess;peer->tpLocalRank = req->tpLocalRank;peer->tpRank = req->tpRank;resp->connection = *connection;(*connection)->tcomm = (*connection)->send ? &ncclTransports[(*connection)->transport]->send : &ncclTransports[(*connection)->transport]->recv;// If we need proxy progress, let's allocate ops and start the threadif ((*connection)->tcomm->proxyProgress) {NCCLCHECK(proxyProgressInit(proxyState));struct ncclProxyProgressState* state = &proxyState->progressState;strncpy(resp->devShmPath, state->opsPoolShmSuffix, sizeof(resp->devShmPath));}INFO(NCCL_NET|NCCL_PROXY, "New proxy %s connection %d from local rank %d, transport %d", (*connection)->send ? "send":"recv", id, (*connection)->tpLocalRank, (*connection)->transport);__atomic_store_n(&(*connection)->state, connInitialized, __ATOMIC_RELEASE);return ncclSuccess;
}static ncclResult_t proxyProgressInit(struct ncclProxyState* proxyState) {struct ncclProxyProgressState* state = &proxyState->progressState;if (state->opsPool == NULL) {int size = sizeof(struct ncclProxyOpsPool);struct ncclProxyOpsPool* pool = NULL;char shmPath[sizeof("/dev/shm/nccl-XXXXXX")];shmPath[0] = '\0';NCCLCHECK(ncclShmOpen(shmPath, sizeof(shmPath), size, (void**)&pool, NULL, proxyState->tpLocalnRanks, &state->handle));// Init poolpool->nextOps = -1;for (int r = 0; r < proxyState->tpLocalnRanks; r++) {pool->freeOps[r] = r*MAX_OPS_PER_PEER;for (int i=0; i<MAX_OPS_PER_PEER-1; i++) pool->ops[r*MAX_OPS_PER_PEER+i].next = r*MAX_OPS_PER_PEER+i+1;pool->ops[(r+1)*MAX_OPS_PER_PEER-1].next = -1;}// Setup mutex/cond to work inter-processpthread_mutexattr_t mutexAttr;pthread_mutexattr_init(&mutexAttr);pthread_mutexattr_setpshared(&mutexAttr, PTHREAD_PROCESS_SHARED);pthread_mutex_init(&pool->mutex, &mutexAttr);pthread_condattr_t condAttr;pthread_condattr_setpshared(&condAttr, PTHREAD_PROCESS_SHARED);pthread_cond_init(&pool->cond, &condAttr);state->opsPool = pool;memcpy(state->opsPoolShmSuffix, shmPath+sizeof("/dev/shm/nccl-")-1, sizeof("XXXXXX")-1);// All ops structures are created, we can start the progress threadNCCLCHECK(ncclProxyProgressCreate(proxyState));//创建线程}return ncclSuccess;
}

对于netTransport来说，ncclProxyConnect最主要的就是创建一个ncclProxyProgress线程，后面我们再说这个线程是干啥用的。
回到recvSetup函数中，另一个调用的接口是ncclProxyCallBlocking，其实就是回调recvProxySetup函数，代码如下：

static ncclResult_t recvProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {struct setupReq* req = (struct setupReq*) reqBuff;if (reqSize != sizeof(struct setupReq)) return ncclInternalError;struct recvNetResources* resources;NCCLCHECK(ncclCalloc(&resources, 1));connection->transportResources = resources;//存储信息resources->tpRank = req->tpRank;resources->tpLocalRank = req->tpLocalRank;resources->tpRemoteRank = req->tpRemoteRank;resources->netDev = req->netDev;resources->shared = connection->shared = req->shared;resources->useGdr = req->useGdr;resources->needFlush = req->needFlush;resources->channelId = req->channelId;resources->connIndex = req->connIndex;ncclNetProperties_t props;//查询net相关属性NCCLCHECK(proxyState->ncclNet->getProperties(req->netDev, &props));/* DMA-BUF support */resources->useDmaBuf = resources->useGdr && proxyState->dmaBufSupport && (props.ptrSupport & NCCL_PTR_DMABUF);resources->maxRecvs = props.maxRecvs;resources->netDeviceVersion = props.netDeviceVersion;resources->netDeviceType = props.netDeviceType;/* point-to-point size limits*/resources->maxP2pBytes = props.maxP2pBytes;if((resources->maxP2pBytes <= 0) || (resources->maxP2pBytes > NCCL_MAX_NET_SIZE_BYTES)) {WARN("recvProxySetup: net plugin returned invalid value for maxP2pBytes %ld \[allowed range: %ld - %ld] \n", resources->maxP2pBytes, 0L, NCCL_MAX_NET_SIZE_BYTES);return ncclInternalError;}if (respSize != sizeof(ncclNetHandle_t)) return ncclInternalError;//调用 ncclIbListen 接口NCCLCHECK(proxyState->ncclNet->listen(req->netDev, respBuff, &resources->netListenComm));*done = 1;return ncclSuccess;
}ncclResult_t ncclIbListen(int dev, void* opaqueHandle, void** listenComm) {ncclResult_t ret = ncclSuccess;struct ncclIbListenComm* comm;NCCLCHECK(ncclCalloc(&comm, 1));struct ncclIbHandle* handle = (struct ncclIbHandle*) opaqueHandle;//respBuffstatic_assert(sizeof(struct ncclIbHandle) < NCCL_NET_HANDLE_MAXSIZE, "ncclIbHandle size too large");memset(handle, 0, sizeof(struct ncclIbHandle));comm->dev = dev;//net设备handle->magic = NCCL_SOCKET_MAGIC;//ncclIbIfAddr一般就是bootstrap使用的IPNCCLCHECKGOTO(ncclSocketInit(&comm->sock, &ncclIbIfAddr, handle->magic, ncclSocketTypeNetIb, NULL, 1), ret, fail);//建立socket linsten，后续rdma信息交换就通过这个套接字NCCLCHECKGOTO(ncclSocketListen(&comm->sock), ret, fail);//将socket监听地址拷贝到 handle->connectAddr，其实就是 ncclIbIfAddrNCCLCHECKGOTO(ncclSocketGetAddr(&comm->sock, &handle->connectAddr), ret, fail);*listenComm = comm;
exit:return ret;
fail:(void)ncclSocketClose(&comm->sock);free(comm);goto exit;
}

recvProxySetup和ncclIbListen主要是初始化一些信息，建立了一个socket监听，这个socket用来交换rdma建链以及发送缓存区信息的。
交换信息之后调用recvConnect -> recvProxyConnect -> ncclIbAccept，代码如下：

static ncclResult_t recvConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* recv) {struct connectMap* map = (connectMap*) recv->transportResources;void* opId;int sendUseGdr;//connectInfo是发送端建立连接前填充的数据//拿到发送端gdr属性memcpy(&sendUseGdr, (uint8_t*)connectInfo + sizeof(ncclNetHandle_t), sizeof(int));if (!sendUseGdr) recv->conn.flags &= ~NCCL_DIRECT_NIC;if (!map) {NCCLCHECK(ncclCalloc(&map, 1));recv->transportResources = map;// Use recv connector as unique identifieropId = recv;INFO(NCCL_PROXY, "recvConnect ncclProxyCallAsync opId=%p &recv->proxyConn=%p connectInfo=%p",opId, &recv->proxyConn, connectInfo);netRecvConnectArgs args = {0};args.proxyRank = *((int*)connectInfo);//异步调用 recvProxyConnectNCCLCHECK(ncclProxyCallAsync(comm, &recv->proxyConn, ncclProxyMsgConnect, &args, sizeof(netRecvConnectArgs), sizeof(struct connectMap), opId));} else {opId = recv;}ncclResult_t ret;NCCLCHECK(ret = ncclPollProxyResponse(comm, &recv->proxyConn, map, opId));if (ret != ncclSuccess) {if (ret != ncclInProgress) {free(map);recv->transportResources = NULL;}return ret;}INFO(NCCL_PROXY, "recvConnect ncclPollProxyResponse opId=%p", opId);//NCCLCHECK(netDumpMap(map));struct ncclSendMem *sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, sendMem);recv->conn.head = &sendMem->head;//将host ddr中sendMem 的 head存储struct ncclRecvMem *recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, recvMem);void* gdcMem = map->mems[NCCL_NET_MAP_GDCMEM].gpuPtr;//空recv->conn.tail = gdcMem ? (uint64_t*)gdcMem : &recvMem->tail;//将host recvMem 的 tail 存储recv->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;//512krecv->conn.connFifo = recvMem->connFifo;// Only fuse P2P buffers, continue to allocate dedicated buffers for ring/treefor (int i=0; i<NCCL_STEPS; i++) {recvMem->connFifo[i].mode = map->shared ? NCCL_MODE_OFFSET : NCCL_MODE_NORMAL;}for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)//获取buf的GPU访问指针recv->conn.buffs[p] = NCCL_NET_MAP_GET_POINTER(map, gpu, buffs[p]);if (recv->proxyConn.sameProcess) {//一般不会是同一个进程if (recv->proxyConn.connection->netDeviceHandle) {recv->conn.netDeviceHandle = *recv->proxyConn.connection->netDeviceHandle;for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)recv->conn.mhandles[p] = recv->proxyConn.connection->mhandles[p];}if (recv->proxyConn.connection->needsProxyProgress) {recv->proxyConn.proxyProgress = recvProxyProgress;} else {recv->proxyConn.proxyProgress = NULL;}} else {recv->proxyConn.proxyProgress = recvProxyProgress;}return ncclSuccess;
}static ncclResult_t recvProxyConnect(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {if (reqSize != sizeof(netRecvConnectArgs)) return ncclInternalError;struct recvNetResources* resources = (struct recvNetResources*)(connection->transportResources);netRecvConnectArgs* req = (netRecvConnectArgs*) reqBuff;resources->tpRemoteProxyRank = req->proxyRank;ncclResult_t ret = ncclSuccess;NCCLCHECK(ncclNetGetDeviceHandle(resources->netDeviceType, resources->netDeviceVersion, true /*isRecv*/, &resources->netDeviceHandle));// Finish connection establishment from remote peerif (resources->shared) {//为0// Shared buffersstruct ncclProxyProgressState* progressState = &proxyState->progressState;if (progressState->localPeers == NULL) {NCCLCHECK(ncclCalloc(&progressState->localPeers, proxyState->tpLocalnRanks));}struct ncclProxyPeer** localPeers = progressState->localPeers;if (localPeers[resources->tpLocalRank] == NULL) {NCCLCHECK(ncclCalloc(localPeers + resources->tpLocalRank, 1));}connection->proxyAppendPtr = localPeers[resources->tpLocalRank]->recv.proxyAppend + resources->channelId;if (resources->maxRecvs > 1 && ncclParamNetSharedComms()) {// Connect or reuse connection for a netdev/remote rank.if (progressState->netComms[resources->netDev] == NULL) {NCCLCHECK(ncclCalloc(progressState->netComms + resources->netDev, proxyState->tpnRanks));}struct ncclSharedNetComms* comms = progressState->netComms[resources->netDev] + resources->tpRemoteProxyRank;if (comms->recvComm[resources->channelId] == NULL) ret = proxyState->ncclNet->accept(resources->netListenComm, comms->recvComm+resources->channelId, &resources->netDeviceHandle);resources->netRecvComm = comms->recvComm[resources->channelId];if (comms->recvComm[resources->channelId]) comms->recvRefCount[resources->channelId]++;} else {ret = proxyState->ncclNet->accept(resources->netListenComm, &resources->netRecvComm, &resources->netDeviceHandle);}} else {// Connect to remote peer//调用 ncclIbAcceptret = proxyState->ncclNet->accept(resources->netListenComm, &resources->netRecvComm, &resources->netDeviceHandle);connection->proxyAppendPtr = &connection->proxyAppend;}NCCLCHECK(ret);if (resources->netRecvComm == NULL) {*done = 0;return ncclInProgress;}*done = 1;if (resources->netDeviceHandle) {connection->netDeviceHandle = resources->netDeviceHandle;connection->needsProxyProgress = connection->netDeviceHandle->needsProxyProgress;} else {connection->needsProxyProgress = 1;}NCCLCHECK(proxyState->ncclNet->closeListen(resources->netListenComm));// Create structuresstruct connectMap* map = &resources->map;map->sameProcess = connection->sameProcess;if (map->sameProcess == 0) return ncclInternalError; // We don't support remote proxy for recvmap->shared = resources->shared;if (resources->shared == 0) { // Only allocate dedicated buffers for ring/tree, not for p2p// gdr为1，所以buff会创建在GPU内部for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {//LL:512k, LL128:>4M, simple: 4mNCCL_NET_MAP_ADD_POINTER(map, 0, resources->useGdr, proxyState->buffSizes[p], buffs[p]);resources->buffSizes[p] = proxyState->buffSizes[p];}} else {// Get shared buffersint bank = resources->useGdr ? NCCL_NET_MAP_SHARED_DEVMEM : NCCL_NET_MAP_SHARED_HOSTMEM;struct connectMapMem* mapMem = map->mems+bank;NCCLCHECK(sharedNetBuffersInit(proxyState, resources->useGdr, resources->tpLocalRank, 1, 1, proxyState->p2pnChannels,&mapMem->gpuPtr, &mapMem->cpuPtr, &mapMem->size, NULL));resources->buffSizes[NCCL_PROTO_SIMPLE] = mapMem->size;NCCL_NET_MAP_ADD_POINTER(map, 1, resources->useGdr, mapMem->size, buffs[NCCL_PROTO_SIMPLE]);}//对于recv侧来说，sendMem、recvMem位于host DDRNCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclSendMem), sendMem);NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclRecvMem), recvMem);if (proxyState->allocP2pNetLLBuffers) {NCCL_NET_MAP_ADD_POINTER(map, 0, 0 /*resources->useGdr*/, proxyState->buffSizes[NCCL_PROTO_LL], buffs[NCCL_PROTO_LL]);resources->buffSizes[NCCL_PROTO_LL] = proxyState->buffSizes[NCCL_PROTO_LL];}if (map->mems[NCCL_NET_MAP_DEVMEM].size) {//LL:512k, LL128:>4M, simple: 4mif (resources->shared == 0) {if (ncclCuMemEnable()) {//从GPU中分配内存NCCLCHECK(ncclP2pAllocateShareableBuffer(map->mems[NCCL_NET_MAP_DEVMEM].size, 0, &map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,(void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));} else {NCCLCHECK(ncclCudaCalloc(&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr, map->mems[NCCL_NET_MAP_DEVMEM].size));}map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr;}}//sendMem、recvMem位于host DDRNCCLCHECK(ncclCudaHostCalloc(&map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr, map->mems[NCCL_NET_MAP_HOSTMEM].size));map->mems[NCCL_NET_MAP_HOSTMEM].gpuPtr = map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr;if (ncclGdrCopy && map->sameProcess) {//不使用uint64_t *cpuPtr, *gpuPtr;NCCLCHECK(ncclGdrCudaCalloc(&cpuPtr, &gpuPtr, 2, &resources->gdrDesc));if (ncclParamGdrCopySyncEnable()) {resources->gdcSync = cpuPtr;struct connectMapMem* gdcMem = map->mems+NCCL_NET_MAP_GDCMEM;gdcMem->cpuPtr = (char*)cpuPtr;gdcMem->gpuPtr = (char*)gpuPtr;gdcMem->size = sizeof(uint64_t);}if (ncclParamGdrCopyFlushEnable()) resources->gdcFlush = cpuPtr + 1;}//对于recv侧来说，sendMem、recvMem位于host DDRresources->sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);resources->recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);for (int i = 0; i < NCCL_STEPS; i++) resources->recvMem->connFifo[i].size = -1;//初始化size大小for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {resources->buffers[p] = NCCL_NET_MAP_GET_POINTER(map, cpu, buffs[p]);if (resources->buffers[p]) {
#if CUDA_VERSION >= 11070/* DMA-BUF support */int type = NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST;if (type == NCCL_PTR_CUDA && resources->useDmaBuf) {int dmabuf_fd;CUCHECK(cuMemGetHandleForAddressRange((void *)&dmabuf_fd, (CUdeviceptr)resources->buffers[p], resources->buffSizes[p], CU_MEM_RANGE_HANDLE_TYPE_DMA_BUF_FD, 0));NCCLCHECK(proxyState->ncclNet->regMrDmaBuf(resources->netRecvComm, resources->buffers[p], resources->buffSizes[p], type, 0ULL, dmabuf_fd, &resources->mhandles[p]));(void)close(dmabuf_fd);} else // FALL-THROUGH to nv_peermem GDR path
#endif{//将buf注册到RDMA mr中NCCLCHECK(proxyState->ncclNet->regMr(resources->netRecvComm, resources->buffers[p], resources->buffSizes[p], NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST, &resources->mhandles[p]));}// Copy the mhandle dptr，不进入if (resources->netDeviceType != NCCL_NET_DEVICE_HOST && proxyState->ncclNet->getDeviceMr)NCCLCHECK(proxyState->ncclNet->getDeviceMr(resources->netRecvComm, resources->mhandles[p], &connection->mhandles[p]));}}//NCCLCHECK(netDumpMap(map));if (respSize != sizeof(struct connectMap)) return ncclInternalError;memcpy(respBuff, map, sizeof(struct connectMap));return ncclSuccess;
}ncclResult_t ncclIbAccept(void* listenComm, void** recvComm, ncclNetDeviceHandle_t** /*recvDevComm*/) {ncclResult_t ret = ncclSuccess;struct ncclIbListenComm* lComm = (struct ncclIbListenComm*)listenComm;struct ncclIbCommStage* stage = &lComm->stage;struct ncclIbRecvComm* rComm = (struct ncclIbRecvComm*)stage->comm;int ready;*recvComm = NULL;if (stage->state == ncclIbCommStateAccept)   goto ib_accept_check;if (stage->state == ncclIbCommStateRecvDevList) goto ib_recv_dev_list;if (stage->state == ncclIbCommStateSendDevList) goto ib_send_dev_list;if (stage->state == ncclIbCommStateRecv) goto ib_recv;if (stage->state == ncclIbCommStateSend) goto ib_send;if (stage->state == ncclIbCommStatePendingReady) goto ib_recv_ready;if (stage->state != ncclIbCommStateStart) {WARN("Listencomm in unknown state %d", stage->state);return ncclInternalError;}NCCLCHECK(ncclIbMalloc((void**)&rComm, sizeof(struct ncclIbRecvComm)));NCCLCHECKGOTO(ncclIbStatsInit(&rComm->base.stats), ret, fail);stage->comm = rComm;stage->state = ncclIbCommStateAccept;NCCLCHECKGOTO(ncclSocketInit(&rComm->base.sock), ret, fail);NCCLCHECKGOTO(ncclSocketAccept(&rComm->base.sock, &lComm->sock), ret, fail);// Alloc stage->buffer here to be used for all following stepsstruct ncclIbConnectionMetadata remMeta;stage->offset = 0;NCCLCHECK(ncclIbMalloc((void**)&stage->buffer, sizeof(remMeta)));ib_accept_check:NCCLCHECKGOTO(ncclSocketReady(&rComm->base.sock, &ready), ret, fail);if (!ready) return ncclSuccess;stage->state = ncclIbCommStateRecvDevList;stage->offset = 0;// In the case of mismatched nDevs, we will make sure that both sides of a logical connection have the same number of RC qps
ib_recv_dev_list://获取对端设备信息，主要为net设备个数NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_RECV, &rComm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;ncclNetVDeviceProps_t remoteVProps;memcpy(&remoteVProps, stage->buffer, sizeof(ncclNetVDeviceProps_t));//保存对端设备信息，主要为net设备个数if (lComm->dev >= ncclNMergedIbDevs) {WARN("NET/IB : Trying to use non-existant virtual device %d", lComm->dev);return ncclInternalError;}// Reduce the physical device list and store in the connection basestruct ncclIbMergedDev* mergedDev;mergedDev = ncclIbMergedDevs + lComm->dev;NCCLCHECK(ncclIbCheckVProps(&mergedDev->vProps, &remoteVProps));rComm->base.vProps = mergedDev->vProps;memcpy(stage->buffer, &rComm->base.vProps, sizeof(ncclNetVDeviceProps_t));//将本端设备信息存放到buffer，主要为net设备个数rComm->base.isSend = false;int localNqps, remoteNqps;localNqps  = ncclParamIbQpsPerConn() * rComm->base.vProps.ndevs; // We must have at least 1 qp per-deviceremoteNqps = ncclParamIbQpsPerConn() * remoteVProps.ndevs;//计算一共需要建链多少rdma QPrComm->base.nqps = remoteNqps > localNqps ? remoteNqps : localNqps; // Select max nqps (local or remote)stage->offset = 0;stage->state = ncclIbCommStateSendDevList;ib_send_dev_list://将本端设备个数信息发送NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &rComm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset), ret, fail);if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;stage->offset = 0;stage->state = ncclIbCommStateRecv;ib_recv:NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV, &rComm->base.sock, stage->buffer, sizeof(remMeta), &stage->offset), ret, fail);if (stage->offset != sizeof(remMeta)) return ncclSuccess;/* copy back the received info */memcpy(&remMeta, stage->buffer, sizeof(struct ncclIbConnectionMetadata));// IB setup// Pre-declare variables because of gotostruct ncclIbDev* ibDev;int ibDevN;struct ncclIbRecvCommDev* rCommDev;struct ncclIbDevInfo* remDevInfo;struct ncclIbQp* qp;mergedDev = ncclIbMergedDevs + lComm->dev;rComm->base.nRemDevs = remMeta.ndevs;if (rComm->base.nRemDevs != rComm->base.vProps.ndevs) {INFO(NCCL_NET, "NET/IB : Local mergedDev %s has a different number of devices=%d as remote %s %d",mergedDev->devName, rComm->base.vProps.ndevs, remMeta.devName, rComm->base.nRemDevs);}// Metadata to send back to requestor (sender)struct ncclIbConnectionMetadata meta;memset(&meta, 0, sizeof(meta));for (int i = 0; i < rComm->base.vProps.ndevs; i++) {rCommDev = rComm->devs + i;ibDevN = rComm->base.vProps.devs[i];NCCLCHECKGOTO(ncclIbInitCommDevBase(ibDevN, &rCommDev->base, &rComm->base.stats), ret, fail);ibDev = ncclIbDevs + ibDevN;NCCLCHECKGOTO(ncclIbGetGidIndex(ibDev->context, ibDev->portNum, &ibDev->portAttr, &rCommDev->base.gidInfo.localGidIndex), ret, fail);NCCLCHECKGOTO(wrap_ibv_query_gid(ibDev->context, ibDev->portNum, rCommDev->base.gidInfo.localGidIndex, &rCommDev->base.gidInfo.localGid), ret, fail);}// Copy remDevInfo for things like remGidInfo, remFifoAddr, etc.for (int i = 0; i < remMeta.ndevs; i++) {rComm->base.remDevs[i] = remMeta.devs[i];rComm->base.remDevs[i].remoteGid.global.interface_id  = rComm->base.remDevs[i].gid.global.interface_id;rComm->base.remDevs[i].remoteGid.global.subnet_prefix = rComm->base.remDevs[i].gid.global.subnet_prefix;}// Stripe QP creation across merged devs// Make sure to get correct remote peer dev and QP infoint remDevIndex;int devIndex;devIndex = 0;//根据QP个数创建QPfor (int q = 0; q < rComm->base.nqps; q++) {remDevIndex = remMeta.qpInfo[q].devIndex;remDevInfo = remMeta.devs + remDevIndex;qp = rComm->base.qps+q;rCommDev = rComm->devs + devIndex;qp->remDevIdx = remDevIndex;//本端这个qp连接对端哪个net设备索引，这个索引是卡内的，即一张mlx卡最多支持4个net// Local ibDevNibDevN = rComm->devs[devIndex].base.ibDevN;ibDev = ncclIbDevs + ibDevN;//创建qp，允许QP接收对端写操作NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &rCommDev->base, IBV_ACCESS_REMOTE_WRITE, &rComm->base.stats, qp), ret, fail);qp->devIndex = devIndex;devIndex = (devIndex + 1) % rComm->base.vProps.ndevs;// Set the ece (enhanced connection establishment) on this QP before RTRif (remMeta.qpInfo[q].ece_supported) {// Coverity suspects a copy-paste error below due to the use of remMeta in one argument and meta in another.// However, this has been confirmed to be intentional.// coverity[copy_paste_error]NCCLCHECKGOTO(wrap_ibv_set_ece(qp->qp, &remMeta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);// Query the reduced ece for this QP (matching enhancements between the requestor and the responder)// Store this in our own qpInfo for returning to the requestorif (meta.qpInfo[q].ece_supported)NCCLCHECKGOTO(wrap_ibv_query_ece(qp->qp, &meta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);} else {meta.qpInfo[q].ece_supported = 0;}//根据对端QP信息，完成QP绑定建链NCCLCHECKGOTO(ncclIbRtrQp(qp->qp, &rCommDev->base.gidInfo, remMeta.qpInfo[q].qpn, remDevInfo, true), ret, fail);NCCLCHECKGOTO(ncclIbRtsQp(qp->qp), ret, fail);}rComm->flushEnabled = ((ncclIbGdrSupport() == ncclSuccess || ncclIbDmaBufSupport(lComm->dev) == ncclSuccess)&& (ncclParamIbGdrFlushDisable() == 0)) ? 1 : 0;for (int i = 0; i < rComm->base.vProps.ndevs; i++) {rCommDev = rComm->devs + i;ibDev = ncclIbDevs + rCommDev->base.ibDevN;// Retain remote fifo info and prepare my RDMA opsrComm->remFifo.addr = remMeta.fifoAddr;//保存对端 FIFO MR对应虚拟地址//本端注册 elems mr，用来数据传输前将本地数据buf地址写入到对端 FIFO 中NCCLCHECKGOTO(wrap_ibv_reg_mr(&rCommDev->fifoMr, rCommDev->base.pd, &rComm->remFifo.elems, sizeof(struct ncclIbSendFifo)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);rCommDev->fifoSge.lkey = rCommDev->fifoMr->lkey;if (ncclParamIbUseInline()) rComm->remFifo.flags = IBV_SEND_INLINE;// Allocate Flush dummy buffer for GPU Direct RDMAif (rComm->flushEnabled) {//申请一个本端QP用来数据传输完成后执行read操作，确保数据写入HBMNCCLCHECKGOTO(wrap_ibv_reg_mr(&rCommDev->gpuFlush.hostMr, rCommDev->base.pd, &rComm->gpuFlushHostMem, sizeof(int), IBV_ACCESS_LOCAL_WRITE), ret, fail);rCommDev->gpuFlush.sge.addr = (uint64_t)&rComm->gpuFlushHostMem;rCommDev->gpuFlush.sge.length = 1;rCommDev->gpuFlush.sge.lkey = rCommDev->gpuFlush.hostMr->lkey;NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &rCommDev->base, IBV_ACCESS_LOCAL_WRITE | IBV_ACCESS_REMOTE_READ, &rComm->base.stats, &rCommDev->gpuFlush.qp), ret, fail);struct ncclIbDevInfo devInfo;devInfo.lid         = ibDev->portAttr.lid;devInfo.link_layer  = ibDev->portAttr.link_layer;devInfo.ib_port     = ibDev->portNum;devInfo.gid.global.subnet_prefix        = rCommDev->base.gidInfo.localGid.global.subnet_prefix;devInfo.gid.global.interface_id         = rCommDev->base.gidInfo.localGid.global.interface_id;devInfo.mtu         = ibDev->portAttr.active_mtu;NCCLCHECKGOTO(ncclIbRtrQp(rCommDev->gpuFlush.qp.qp, &rCommDev->base.gidInfo, rCommDev->gpuFlush.qp.qp->qp_num, &devInfo, false), ret, fail);NCCLCHECKGOTO(ncclIbRtsQp(rCommDev->gpuFlush.qp.qp), ret, fail);}// Fill Handle//填充设备信息，比较重要的是gidmeta.devs[i].lid                            = ibDev->portAttr.lid;meta.devs[i].link_layer                     = rCommDev->base.gidInfo.link_layer = ibDev->portAttr.link_layer;meta.devs[i].ib_port                        = ibDev->portNum;meta.devs[i].gid.global.subnet_prefix       = rCommDev->base.gidInfo.localGid.global.subnet_prefix;meta.devs[i].gid.global.interface_id        = rCommDev->base.gidInfo.localGid.global.interface_id;meta.devs[i].mtu                            = ibDev->portAttr.active_mtu;// Prepare sizes fifo//注册size FIFO 的mrNCCLCHECKGOTO(wrap_ibv_reg_mr(&rComm->devs[i].sizesFifoMr, rComm->devs[i].base.pd, rComm->sizesFifo, sizeof(int)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);meta.devs[i].fifoRkey = rComm->devs[i].sizesFifoMr->rkey;//将sizeFIFO的rkey填入}meta.fifoAddr = (uint64_t)rComm->sizesFifo;//将本端size fifo的虚拟地址填入for (int q = 0; q < rComm->base.nqps; q++) {meta.qpInfo[q].qpn      = rComm->base.qps[q].qp->qp_num;meta.qpInfo[q].devIndex = rComm->base.qps[q].devIndex;}meta.ndevs = rComm->base.vProps.ndevs;strncpy(meta.devName, mergedDev->devName, MAX_MERGED_DEV_NAME);rComm->base.nDataQps = std::max(rComm->base.vProps.ndevs, rComm->base.nRemDevs);stage->state = ncclIbCommStateSend;stage->offset = 0;if (stage->buffer) {free(stage->buffer);stage->buffer = NULL;}NCCLCHECKGOTO(ncclIbMalloc((void**)&stage->buffer, sizeof(struct ncclIbConnectionMetadata)), ret, fail);memcpy(stage->buffer, &meta, sizeof(struct ncclIbConnectionMetadata));ib_send://将本端qp和size fifo信息发送给对端NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &rComm->base.sock, stage->buffer, sizeof(struct ncclIbConnectionMetadata), &stage->offset), ret, fail);if (stage->offset < sizeof(struct ncclIbConnectionMetadata)) return ncclSuccess;stage->offset = 0;stage->state = ncclIbCommStatePendingReady;ib_recv_ready://同步，确认对端已经建链完毕NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV,  &rComm->base.sock, &rComm->base.ready, sizeof(int), &stage->offset), ret, fail);if (stage->offset != sizeof(int)) return ncclSuccess;*recvComm = rComm;
exit:/* reset lComm stage */if (stage->buffer) free(stage->buffer);stage->state = ncclIbCommStateStart;stage->offset = 0;stage->comm = NULL;stage->buffer = NULL;return ret;
fail:free(rComm);goto exit;
}

上面代码较多，其实现的内容为：1）socket监听到对端连接，接收net设备信息，决定使用多QP建链；2）交换QP信息，完成QP绑定建链；3）创建iflush使用的本地QP；4）将本端sizeFIFO（给对端写数据传输大小）注册mr产生的相关信息发给对端，获取对端FIFO（本端写数据接收buff信息）注册mr产生的相关信息；5）本端在GPU上分配接收缓存区内存；6）host DDR上分配head、tail相关内存（用于协调本端和kernel数据传输交互）；7）将tail、head、接收缓存区等信息填写到GPU内存。

本端作为发送端设置发送方向相关通信数据

先调用sendSetup，代码如下。

static ncclResult_t sendSetup(struct ncclComm* comm, struct ncclTopoGraph* graph, struct ncclPeerInfo* myInfo, struct ncclPeerInfo* peerInfo, struct ncclConnect* connectInfo, struct ncclConnector* send, int channelId, int connIndex) {struct setupReq req = { 0 };send->conn.shared = req.shared = graph || connIndex == 0 ? 0 : ncclParamNetSharedBuffers() != -2 ? ncclParamNetSharedBuffers() : 1;req.channelId = channelId;req.connIndex = connIndex;int proxyRank;int64_t netId;//获取使用的net id，从拓扑中NCCLCHECK(ncclTopoGetNetDev(comm, myInfo->rank, graph, channelId, peerInfo->rank, &netId, &req.netDev, &proxyRank));NCCLCHECK(ncclTopoCheckGdr(comm->topo, myInfo->rank, netId, 1, &req.useGdr));//检查gdr支持send->conn.flags |= req.useGdr ? NCCL_DIRECT_NIC : 0;if (!req.useGdr && connIndex == 0) comm->useGdr = 0;if (proxyRank != myInfo->rank && connIndex == 0) comm->useNetPXN = true;//不启用//连接本地网络，为调用ncclProxyCallBlocking做准备，会创建一个proxyProgress代理线程NCCLCHECK(ncclProxyConnect(comm, TRANSPORT_NET, 1, proxyRank, &send->proxyConn));req.tpLocalRank = comm->topParentLocalRanks[comm->localRank];req.tpRank = comm->topParentRanks[myInfo->rank];req.tpRemoteRank = comm->topParentRanks[peerInfo->rank];// 调用 sendProxySetupNCCLCHECK(ncclProxyCallBlocking(comm, &send->proxyConn, ncclProxyMsgSetup, &req, sizeof(req), NULL, 0));if (proxyRank == myInfo->rank) {INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [send] via NET/%s/%d%s%s", channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, comm->ncclNet->name, req.netDev,req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");} else {INFO(NCCL_INIT|NCCL_NET,"Channel %02d/%d : %d[%d] -> %d[%d] [send] via NET/%s/%d(%d)%s%s", channelId, connIndex, myInfo->rank, myInfo->nvmlDev, peerInfo->rank, peerInfo->nvmlDev, comm->ncclNet->name, req.netDev,proxyRank, req.useGdr ? "/GDRDMA" : "", req.shared ? "/Shared" : "");}//connectInfo 是用来交换给recv端的数据*((int*)connectInfo) = comm->topParentRanks[proxyRank];//存储本rank父节点的全局rank idmemcpy((uint8_t*)connectInfo + sizeof(ncclNetHandle_t), &req.useGdr, sizeof(int));//将本端gdr信息告诉对端return ncclSuccess;
}

其中最主要的是调用了ncclProxyConnect和ncclProxyCallBlocking，其中ncclProxyConnect在recv部分已经介绍了，最主要的就是创建了ncclProxyProgress线程。
ncclProxyCallBlocking接口回调的是sendProxySetup，代码如下。

static ncclResult_t sendProxySetup(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {struct setupReq* req = (struct setupReq*) reqBuff;if (reqSize != sizeof(struct setupReq)) return ncclInternalError;struct sendNetResources* resources;NCCLCHECK(ncclCalloc(&resources, 1));connection->transportResources = resources;//存储信息resources->tpRank = req->tpRank;resources->tpLocalRank = req->tpLocalRank;resources->tpRemoteRank = req->tpRemoteRank;resources->netDev = req->netDev;resources->shared = connection->shared = req->shared;resources->useGdr = req->useGdr;resources->channelId = req->channelId;resources->connIndex = req->connIndex;ncclNetProperties_t props;//查询net相关属性NCCLCHECK(proxyState->ncclNet->getProperties(req->netDev, &props));/* DMA-BUF support */resources->useDmaBuf = resources->useGdr && proxyState->dmaBufSupport && (props.ptrSupport & NCCL_PTR_DMABUF);resources->maxRecvs = props.maxRecvs;resources->netDeviceVersion = props.netDeviceVersion;resources->netDeviceType = props.netDeviceType;resources->netDeviceVersion = props.netDeviceVersion;resources->netDeviceType = props.netDeviceType;/* point-to-point size limits*/resources->maxP2pBytes = props.maxP2pBytes;if((resources->maxP2pBytes <= 0) || (resources->maxP2pBytes > NCCL_MAX_NET_SIZE_BYTES)) {WARN("sendProxySetup: net plugin returned invalid value for maxP2pBytes %ld \[allowed range: %ld - %ld] \n", resources->maxP2pBytes, 0L, NCCL_MAX_NET_SIZE_BYTES);return ncclInternalError;}// We don't return any dataif (respSize != 0) return ncclInternalError;*done = 1;return ncclSuccess;
}

sendProxySetup主要是初始化一些信息。
交换信息之后调用sendConnect -> snedProxyConnect -> ncclIbConnect，代码如下：

static ncclResult_t sendConnect(struct ncclComm* comm, struct ncclConnect* connectInfo, int nranks, int rank, struct ncclConnector* send) {struct connectMap* map = (connectMap*) send->transportResources;void* opId;int recvUseGdr;//connectInfo存储对端接收端填充的信息//获取recv端gdr支持memcpy(&recvUseGdr, (uint8_t*)connectInfo + sizeof(ncclNetHandle_t), sizeof(int));if (!recvUseGdr) send->conn.flags &= ~NCCL_DIRECT_NIC;// map isn't allocated thus this op hasn't been submitted yetif (!map) {// Setup device pointersNCCLCHECK(ncclCalloc(&map, 1));send->transportResources = map;opId = send;INFO(NCCL_PROXY, "sendConnect ncclProxyCallAsync opId=%p", opId);netSendConnectArgs args = {0};memcpy(&args.handle, connectInfo, sizeof(ncclNetHandle_t));//调用snedProxyConnectNCCLCHECK(ncclProxyCallAsync(comm, &send->proxyConn, ncclProxyMsgConnect, &args, sizeof(netSendConnectArgs), sizeof(struct connectMap), opId));} else {opId =  send;}ncclResult_t ret;ret = ncclPollProxyResponse(comm, &send->proxyConn, map, opId);//异步接收map数据if (ret != ncclSuccess) {if (ret != ncclInProgress) {free(map);send->transportResources = NULL;}return ret;}INFO(NCCL_PROXY, "sendConnect ncclPollProxyResponse opId=%p", opId);if (map->sameProcess && !ncclCuMemEnable()) {//ncclCuMemEnable为1，不进入if (map->cudaDev != comm->cudaDev) {// Enable P2P access for Legacy IPCcudaError_t err = cudaDeviceEnablePeerAccess(map->cudaDev, 0);if (err == cudaErrorPeerAccessAlreadyEnabled) {cudaGetLastError();} else if (err != cudaSuccess) {WARN("failed to peer with device %d: %d %s", map->cudaDev, err, cudaGetErrorString(err));return ncclInternalError;}}} else if (!(map->sameProcess && map->cudaDev == comm->cudaDev)) {//sameProcess为0，进入if (!map->sameProcess) NCCLCHECK(netMapShm(comm, map->mems + NCCL_NET_MAP_HOSTMEM));//导入net共享buffif (map->mems[NCCL_NET_MAP_DEVMEM].size) {map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr = NULL;//导入设备内存，因为有可能是多进程NCCLCHECK(ncclP2pImportShareableBuffer(comm, send->proxyConn.rank,map->mems[NCCL_NET_MAP_DEVMEM].size,&map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,(void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = NULL;//host 不会访问，多进程时候，也不能访问}if (map->mems[NCCL_NET_MAP_SHARED_DEVMEM].size) {//无void** sharedDevMemPtr = comm->proxyState->sharedDevMems + send->proxyConn.tpLocalRank;if (*sharedDevMemPtr == NULL) {map->mems[NCCL_NET_MAP_SHARED_DEVMEM].gpuPtr = NULL;NCCLCHECK(ncclP2pImportShareableBuffer(comm, send->proxyConn.rank,map->mems[NCCL_NET_MAP_SHARED_DEVMEM].size,&map->mems[NCCL_NET_MAP_SHARED_DEVMEM].ipcDesc,sharedDevMemPtr));}map->mems[NCCL_NET_MAP_SHARED_DEVMEM].gpuPtr = (char*)(*sharedDevMemPtr);map->mems[NCCL_NET_MAP_SHARED_DEVMEM].cpuPtr = NULL;}}//NCCLCHECK(netDumpMap(map));struct ncclSendMem *sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, sendMem);void* gdcMem = map->mems[NCCL_NET_MAP_GDCMEM].gpuPtr;//无send->conn.head = gdcMem ? (uint64_t*)gdcMem : &sendMem->head;struct ncclRecvMem *recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, gpu, recvMem);send->conn.tail = &recvMem->tail;send->conn.stepSize = comm->buffSizes[NCCL_PROTO_SIMPLE]/NCCL_STEPS;send->conn.connFifo = recvMem->connFifo;// Only fuse P2P buffers, continue to allocate dedicated buffers for ring/treefor (int i=0; i<NCCL_STEPS; i++) {send->conn.connFifo[i].offset = -1;recvMem->connFifo[i].mode = map->shared ? NCCL_MODE_OFFSET : NCCL_MODE_NORMAL;//NCCL_MODE_NORMAL}for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)send->conn.buffs[p] = NCCL_NET_MAP_GET_POINTER(map, gpu, buffs[p]);//将gpd访问buff的指针填入buffs，给GPU使用的if (send->proxyConn.sameProcess) {if (send->proxyConn.connection->netDeviceHandle) {send->conn.netDeviceHandle = *send->proxyConn.connection->netDeviceHandle;for (int p=0; p<NCCL_NUM_PROTOCOLS; p++)send->conn.mhandles[p] = send->proxyConn.connection->mhandles[p];}if (send->proxyConn.connection->needsProxyProgress) {send->proxyConn.proxyProgress = sendProxyProgress;} else {send->proxyConn.proxyProgress = NULL;}} else {send->proxyConn.proxyProgress = sendProxyProgress;//赋值}return ncclSuccess;
}static ncclResult_t sendProxyConnect(struct ncclProxyConnection* connection, struct ncclProxyState* proxyState, void* reqBuff, int reqSize, void* respBuff, int respSize, int* done) {struct sendNetResources* resources = (struct sendNetResources*)(connection->transportResources);if (reqSize != sizeof(netSendConnectArgs)) return ncclInternalError;ncclResult_t ret = ncclSuccess;netSendConnectArgs* req = (netSendConnectArgs*) reqBuff;NCCLCHECK(ncclNetGetDeviceHandle(resources->netDeviceType, resources->netDeviceVersion, false /*isRecv*/, &resources->netDeviceHandle));if (resources->shared) {//为0// Shared buffersstruct ncclProxyProgressState* progressState = &proxyState->progressState;if (progressState->localPeers == NULL) {NCCLCHECK(ncclCalloc(&progressState->localPeers, proxyState->tpLocalnRanks));}struct ncclProxyPeer** localPeers = progressState->localPeers;if (localPeers[resources->tpLocalRank] == NULL) {NCCLCHECK(ncclCalloc(localPeers + resources->tpLocalRank, 1));}connection->proxyAppendPtr = localPeers[resources->tpLocalRank]->send.proxyAppend + resources->channelId;if (resources->maxRecvs > 1 && ncclParamNetSharedComms()) {// Connect or reuse connection for a netdev/remote rank.if (progressState->netComms[resources->netDev] == NULL) {NCCLCHECK(ncclCalloc(progressState->netComms + resources->netDev, proxyState->tpnRanks));}struct ncclSharedNetComms* comms = progressState->netComms[resources->netDev] + resources->tpRemoteRank;if (comms->sendComm[resources->channelId] == NULL) ret = proxyState->ncclNet->connect(resources->netDev, req->handle, comms->sendComm + resources->channelId, &resources->netDeviceHandle);resources->netSendComm = comms->sendComm[resources->channelId];if (comms->sendComm[resources->channelId]) comms->sendRefCount[resources->channelId]++;} else {ret = proxyState->ncclNet->connect(resources->netDev, req->handle, &resources->netSendComm, &resources->netDeviceHandle);}} else {// Connect to remote peer//调用 ncclIbConnectret = proxyState->ncclNet->connect(resources->netDev, req->handle, &resources->netSendComm, &resources->netDeviceHandle);connection->proxyAppendPtr = &connection->proxyAppend;}NCCLCHECK(ret);if (resources->netSendComm == NULL) {*done = 0;return ncclInProgress;}*done = 1;if (resources->netDeviceHandle) {//为0connection->netDeviceHandle = resources->netDeviceHandle;connection->needsProxyProgress = connection->netDeviceHandle->needsProxyProgress;} else {connection->needsProxyProgress = 1;}// Create structuresstruct connectMap* map = &resources->map;map->sameProcess = connection->sameProcess;map->shared = resources->shared;CUDACHECK(cudaGetDevice(&map->cudaDev));if (resources->shared == 0) { // Only allocate dedicated buffers for ring/tree, not for p2pfor (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {//除了 NCCL_PROTO_LL 创建在host，其他都在GPUNCCL_NET_MAP_ADD_POINTER(map, 0, p!= NCCL_PROTO_LL && resources->useGdr, proxyState->buffSizes[p], buffs[p]);resources->buffSizes[p] = proxyState->buffSizes[p];}} else {// Get shared buffersint bank = resources->useGdr ? NCCL_NET_MAP_SHARED_DEVMEM : NCCL_NET_MAP_SHARED_HOSTMEM;struct connectMapMem* mapMem = map->mems+bank;NCCLCHECK(sharedNetBuffersInit(proxyState, resources->useGdr, resources->tpLocalRank, 0, map->sameProcess, proxyState->p2pnChannels,&mapMem->gpuPtr, &mapMem->cpuPtr, &mapMem->size, &mapMem->ipcDesc));resources->buffSizes[NCCL_PROTO_SIMPLE] = mapMem->size;if (proxyState->allocP2pNetLLBuffers) {NCCL_NET_MAP_ADD_POINTER(map, 0, 0 /*p == NCCL_PROTO_LL*/, proxyState->buffSizes[NCCL_PROTO_LL], buffs[NCCL_PROTO_LL]);resources->buffSizes[NCCL_PROTO_LL] = proxyState->buffSizes[NCCL_PROTO_LL];}NCCL_NET_MAP_ADD_POINTER(map, 1, resources->useGdr, mapMem->size, buffs[NCCL_PROTO_SIMPLE]);}//sendMem和recvMem的内存都创建在cpuNCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclSendMem), sendMem);NCCL_NET_MAP_ADD_POINTER(map, 0, 0, sizeof(struct ncclRecvMem), recvMem);if (map->mems[NCCL_NET_MAP_DEVMEM].size) {if (resources->shared == 0) {if (!map->sameProcess || ncclCuMemEnable()) {ALIGN_SIZE(map->mems[NCCL_NET_MAP_DEVMEM].size, CUDA_IPC_MIN);//申请 NCCL_PROTO_LL128 和 NCCL_PROTO_SIMPLE 内存在GPUNCCLCHECK(ncclP2pAllocateShareableBuffer(map->mems[NCCL_NET_MAP_DEVMEM].size, 0, &map->mems[NCCL_NET_MAP_DEVMEM].ipcDesc,(void**)&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr));} else {NCCLCHECK(ncclCudaCalloc(&map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr, map->mems[NCCL_NET_MAP_DEVMEM].size));}map->mems[NCCL_NET_MAP_DEVMEM].cpuPtr = map->mems[NCCL_NET_MAP_DEVMEM].gpuPtr;}}if (map->sameProcess) {NCCLCHECK(ncclCudaHostCalloc(&map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr, map->mems[NCCL_NET_MAP_HOSTMEM].size));map->mems[NCCL_NET_MAP_HOSTMEM].gpuPtr = map->mems[NCCL_NET_MAP_HOSTMEM].cpuPtr;} else {//创建共享内存，用于单节点多进程共享，包含sendMem、recvMem、NCCL_PROTO_LLNCCLCHECK(netCreateShm(proxyState, map->mems+NCCL_NET_MAP_HOSTMEM));void* sendMem = (void*)NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);void* recvMem = (void*)NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);memset(sendMem, 0, sizeof(struct ncclSendMem));memset(recvMem, 0, sizeof(struct ncclRecvMem));}if (ncclGdrCopy && map->sameProcess && ncclParamGdrCopySyncEnable()) {uint64_t *cpuPtr, *gpuPtr;NCCLCHECK(ncclGdrCudaCalloc(&cpuPtr, &gpuPtr, 1, &resources->gdrDesc));resources->gdcSync = cpuPtr;struct connectMapMem* gdcMem = map->mems+NCCL_NET_MAP_GDCMEM;gdcMem->cpuPtr = (char*)cpuPtr;gdcMem->gpuPtr = (char*)gpuPtr;gdcMem->size = sizeof(uint64_t); // sendMem->head}//填充 sendMem 和 recvMem 内存指针resources->sendMem = (struct ncclSendMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, sendMem);resources->recvMem = (struct ncclRecvMem*) NCCL_NET_MAP_GET_POINTER(map, cpu, recvMem);// Don't give credits yet in shared mode.(resources->gdcSync ? *resources->gdcSync : resources->sendMem->head) =(map->shared ? -NCCL_STEPS : 0);//head清零for (int i=0; i<NCCL_STEPS; i++) resources->recvMem->connFifo[i].size = -1;for (int p=0; p<NCCL_NUM_PROTOCOLS; p++) {resources->buffers[p] = NCCL_NET_MAP_GET_POINTER(map, cpu, buffs[p]);if (resources->buffers[p]) {
#if CUDA_VERSION >= 11070/* DMA-BUF support */int type = NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST;if (type == NCCL_PTR_CUDA && resources->useDmaBuf) {int dmabuf_fd;CUCHECK(cuMemGetHandleForAddressRange((void *)&dmabuf_fd, (CUdeviceptr)resources->buffers[p], resources->buffSizes[p], CU_MEM_RANGE_HANDLE_TYPE_DMA_BUF_FD, 0));NCCLCHECK(proxyState->ncclNet->regMrDmaBuf(resources->netSendComm, resources->buffers[p], resources->buffSizes[p], type, 0ULL, dmabuf_fd, &resources->mhandles[p]));(void)close(dmabuf_fd);} else // FALL-THROUGH to nv_peermem GDR path
#endif{//数据缓存区注册mrNCCLCHECK(proxyState->ncclNet->regMr(resources->netSendComm, resources->buffers[p], resources->buffSizes[p], NCCL_NET_MAP_DEV_MEM(map, buffs[p]) ? NCCL_PTR_CUDA : NCCL_PTR_HOST, &resources->mhandles[p]));}// Copy the mhandle dptr, if implemented，不进入if (resources->netDeviceHandle && proxyState->ncclNet->getDeviceMr)NCCLCHECK(proxyState->ncclNet->getDeviceMr(resources->netSendComm, resources->mhandles[p], &connection->mhandles[p]));}}//NCCLCHECK(netDumpMap(map));if (respSize != sizeof(struct connectMap)) return ncclInternalError;memcpy(respBuff, map, sizeof(struct connectMap));return ncclSuccess;
}ncclResult_t ncclIbConnect(int dev, void* opaqueHandle, void** sendComm, ncclNetDeviceHandle_t** /*sendDevComm*/) {ncclResult_t ret = ncclSuccess;struct ncclIbHandle* handle = (struct ncclIbHandle*) opaqueHandle;//从recv端拿到的数据struct ncclIbCommStage* stage = &handle->stage;struct ncclIbSendComm* comm = (struct ncclIbSendComm*)stage->comm;int ready;*sendComm = NULL;if (stage->state == ncclIbCommStateConnect)      goto ib_connect_check;if (stage->state == ncclIbCommStateSendDevList)  goto ib_send_dev_list;if (stage->state == ncclIbCommStateRecvDevList)  goto ib_recv_dev_list;if (stage->state == ncclIbCommStateSend)         goto ib_send;if (stage->state == ncclIbCommStateConnecting)   goto ib_connect;if (stage->state == ncclIbCommStateConnected)    goto ib_send_ready;if (stage->state != ncclIbCommStateStart) {WARN("Error: trying to connect already connected sendComm");return ncclInternalError;}stage->buffer = NULL;NCCLCHECK(ncclIbMalloc((void**)&comm, sizeof(struct ncclIbSendComm)));NCCLCHECKGOTO(ncclIbStatsInit(&comm->base.stats), ret, fail);//初始化sock，填写连接地址connectAddr，其实就是recv端监听地址NCCLCHECKGOTO(ncclSocketInit(&comm->base.sock, &handle->connectAddr, handle->magic, ncclSocketTypeNetIb, NULL, 1), ret, fail);stage->comm = comm;stage->state = ncclIbCommStateConnect;//TCP连接recv端NCCLCHECKGOTO(ncclSocketConnect(&comm->base.sock), ret, fail);ib_connect_check:/* since ncclSocketConnect is async, we must check if connection is complete */NCCLCHECKGOTO(ncclSocketReady(&comm->base.sock, &ready), ret, fail);if (!ready) return ncclSuccess;// IB Setupstruct ncclIbMergedDev* mergedDev;if (dev >= ncclNMergedIbDevs) {WARN("NET/IB : Trying to use non-existant virtual device %d", dev);return ncclInternalError;}mergedDev = ncclIbMergedDevs + dev;comm->base.vProps = mergedDev->vProps;comm->base.isSend = true;stage->state = ncclIbCommStateSendDevList;stage->offset = 0;struct ncclIbConnectionMetadata meta;NCCLCHECKGOTO(ncclIbMalloc((void**)&stage->buffer, sizeof(meta)), ret, fail);//将本rank使用的net设备信息保存到buffer，主要是设备个数memcpy(stage->buffer, &mergedDev->vProps, sizeof(ncclNetVDeviceProps_t));// In the case of mismatched nDevs, we will make sure that both sides of a logical connection have the same number of RC qps
ib_send_dev_list://net信息发送给recv端NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;stage->state = ncclIbCommStateRecvDevList;stage->offset = 0;ib_recv_dev_list://从recv端读取对端rank使用的net信息NCCLCHECK(ncclSocketProgress(NCCL_SOCKET_RECV, &comm->base.sock, stage->buffer, sizeof(ncclNetVDeviceProps_t), &stage->offset));if (stage->offset != sizeof(ncclNetVDeviceProps_t)) return ncclSuccess;stage->offset = 0;ncclNetVDeviceProps_t remoteVProps;memcpy(&remoteVProps, stage->buffer, sizeof(ncclNetVDeviceProps_t));mergedDev = ncclIbMergedDevs + dev;comm->base.vProps = mergedDev->vProps;int localNqps, remoteNqps;//计算使用多QP建链localNqps  = ncclParamIbQpsPerConn() * comm->base.vProps.ndevs; // We must have at least 1 qp per-deviceremoteNqps = ncclParamIbQpsPerConn() * remoteVProps.ndevs;comm->base.nqps = remoteNqps > localNqps ? remoteNqps : localNqps; // Select max nqps (local or remote)// Init PD, Ctx for each IB devicecomm->ar = 1; // Set to 1 for logicfor (int i = 0; i < comm->base.vProps.ndevs; i++) {int ibDevN = comm->base.vProps.devs[i];//为每个ib设备创建pd和cqNCCLCHECKGOTO(ncclIbInitCommDevBase(ibDevN, &comm->devs[i].base, &comm->base.stats), ret, fail);comm->ar = comm->ar && ncclIbDevs[ibDevN].ar; // ADAPTIVE_ROUTING - if all merged devs have it enabled}memset(&meta, 0, sizeof(meta));meta.ndevs = comm->base.vProps.ndevs;// Alternate QPs between devicesint devIndex;devIndex = 0;//创建qp，填充qp信息到metafor (int q = 0; q < comm->base.nqps; q++) {ncclIbSendCommDev* commDev = comm->devs + devIndex;ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;NCCLCHECKGOTO(ncclIbCreateQp(ibDev->portNum, &commDev->base, IBV_ACCESS_REMOTE_WRITE, &comm->base.stats, comm->base.qps + q), ret, fail);comm->base.qps[q].devIndex = devIndex;meta.qpInfo[q].qpn      = comm->base.qps[q].qp->qp_num;meta.qpInfo[q].devIndex = comm->base.qps[q].devIndex;if (ncclParamIbEceEnable()) {// Query ece capabilities (enhanced connection establishment)NCCLCHECKGOTO(wrap_ibv_query_ece(comm->base.qps[q].qp, &meta.qpInfo[q].ece, &meta.qpInfo[q].ece_supported), ret, fail);} else {meta.qpInfo[q].ece_supported = 0;}devIndex = (devIndex + 1) % comm->base.vProps.ndevs;}//将fifo注册到每个ib设备for (int i = 0; i < comm->base.vProps.ndevs; i++) {ncclIbSendCommDev* commDev = comm->devs + i;ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;// Write to the metadata struct via this pointerncclIbDevInfo* devInfo = meta.devs + i;devInfo->ib_port       = ibDev->portNum;devInfo->mtu           = ibDev->portAttr.active_mtu;devInfo->lid           = ibDev->portAttr.lid;// Prepare my fifoNCCLCHECKGOTO(wrap_ibv_reg_mr(&commDev->fifoMr, commDev->base.pd, comm->fifo, sizeof(struct ncclIbSendFifo)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);devInfo->fifoRkey = commDev->fifoMr->rkey;// Pack local GID infodevInfo->link_layer = commDev->base.gidInfo.link_layer = ibDev->portAttr.link_layer;NCCLCHECKGOTO(ncclIbGetGidIndex(ibDev->context, ibDev->portNum, &ibDev->portAttr, &commDev->base.gidInfo.localGidIndex), ret, fail);NCCLCHECKGOTO(wrap_ibv_query_gid(ibDev->context, ibDev->portNum, commDev->base.gidInfo.localGidIndex, &commDev->base.gidInfo.localGid), ret, fail);//获取ib设备的gid信息，用于qp建链使用devInfo->gid.global.subnet_prefix = commDev->base.gidInfo.localGid.global.subnet_prefix;devInfo->gid.global.interface_id = commDev->base.gidInfo.localGid.global.interface_id;// info loggingif (devInfo->link_layer == IBV_LINK_LAYER_INFINIBAND) { // IBfor (int q = 0; q < comm->base.nqps; q++) {// Print just the QPs for this devif (comm->base.qps[q].devIndex == i)INFO(NCCL_NET,"NET/IB: %s %d IbDev %d Port %d qpn %d mtu %d LID %d subnet-prefix %lu  FLID %d fifoRkey=0x%x fifoLkey=0x%x",comm->base.vProps.ndevs > 2 ? "NCCL MergedDev" : "NCCL Dev",dev, commDev->base.ibDevN, ibDev->portNum, meta.qpInfo[q].qpn, devInfo->mtu, devInfo->lid,devInfo->gid.global.subnet_prefix, ncclIbExtractFlid(&devInfo->gid), devInfo->fifoRkey, commDev->fifoMr->lkey);}} else { // RoCEfor (int q = 0; q < comm->base.nqps; q++) {// Print just the QPs for this devif (comm->base.qps[q].devIndex == i)INFO(NCCL_NET,"NET/IB: %s %d IbDev %d Port %d qpn %d mtu %d query_ece={supported=%d, vendor_id=0x%x, options=0x%x, comp_mask=0x%x} GID %ld (%lX/%lX) fifoRkey=0x%x fifoLkey=0x%x",comm->base.vProps.ndevs > 2 ? "NCCL MergedDev" : "NCCL Dev", dev,commDev->base.ibDevN, ibDev->portNum, meta.qpInfo[q].qpn, devInfo->mtu, meta.qpInfo[q].ece_supported, meta.qpInfo[q].ece.vendor_id, meta.qpInfo[q].ece.options, meta.qpInfo[q].ece.comp_mask, (int64_t)commDev->base.gidInfo.localGidIndex,devInfo->gid.global.subnet_prefix, devInfo->gid.global.interface_id, devInfo->fifoRkey, commDev->fifoMr->lkey);}}}meta.fifoAddr = (uint64_t)comm->fifo;//fifo的虚拟地址只有一个strncpy(meta.devName, mergedDev->devName, MAX_MERGED_DEV_NAME);stage->state = ncclIbCommStateSend;stage->offset = 0;memcpy(stage->buffer, &meta, sizeof(meta));ib_send://qp和fifo信息发送给recv端NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, stage->buffer, sizeof(meta), &stage->offset), ret, fail);if (stage->offset != sizeof(meta)) return ncclSuccess;stage->state = ncclIbCommStateConnecting;stage->offset = 0;// Clear the staging buffer for re-usememset(stage->buffer, 0, sizeof(meta));ib_connect:struct ncclIbConnectionMetadata remMeta;//接收recv端发送过来的qp信息和sizeFIFO信息NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_RECV, &comm->base.sock, stage->buffer, sizeof(ncclIbConnectionMetadata), &stage->offset), ret, fail);if (stage->offset != sizeof(remMeta)) return ncclSuccess;memcpy(&remMeta, stage->buffer, sizeof(ncclIbConnectionMetadata));comm->base.nRemDevs = remMeta.ndevs;int link_layer;link_layer = remMeta.devs[0].link_layer;for (int i = 1; i < remMeta.ndevs; i++) {if (remMeta.devs[i].link_layer != link_layer) {WARN("NET/IB : Can't connect net devices with different link_layer. i=%d remMeta.ndevs=%d link_layer=%d rem_link_layer=%d",i, remMeta.ndevs, link_layer, remMeta.devs[i].link_layer);return ncclInternalError;}}// Copy remDevInfo for things like remGidInfo, remFifoAddr, etc. 保存recv端控制信息for (int i = 0; i < remMeta.ndevs; i++) {comm->base.remDevs[i] = remMeta.devs[i];comm->base.remDevs[i].remoteGid.global.interface_id = comm->base.remDevs[i].gid.global.interface_id;comm->base.remDevs[i].remoteGid.global.subnet_prefix = comm->base.remDevs[i].gid.global.subnet_prefix;// Retain remote sizes fifo info and prepare RDMA opscomm->remSizesFifo.rkeys[i] = remMeta.devs[i].fifoRkey;comm->remSizesFifo.addr = remMeta.fifoAddr;}//注册sizeFIFO elements的mr，用于告诉recv端，一次传输数据的大小for (int i=0; i < comm->base.vProps.ndevs; i++) {NCCLCHECKGOTO(wrap_ibv_reg_mr(comm->remSizesFifo.mrs+i, comm->devs[i].base.pd, &comm->remSizesFifo.elems, sizeof(int)*MAX_REQUESTS*NCCL_NET_IB_MAX_RECVS, IBV_ACCESS_REMOTE_WRITE|IBV_ACCESS_LOCAL_WRITE|IBV_ACCESS_REMOTE_READ), ret, fail);}comm->base.nRemDevs = remMeta.ndevs;//根据远端QP信息，绑定包本端QP中，完成QP建链绑定for (int q = 0; q < comm->base.nqps; q++) {struct ncclIbQpInfo* remQpInfo   = remMeta.qpInfo + q;struct ncclIbDevInfo* remDevInfo = remMeta.devs + remQpInfo->devIndex;// Assign per-QP remDevcomm->base.qps[q].remDevIdx = remQpInfo->devIndex;int devIndex = comm->base.qps[q].devIndex;ncclIbSendCommDev* commDev = comm->devs + devIndex;struct ibv_qp* qp = comm->base.qps[q].qp;if (remQpInfo->ece_supported)NCCLCHECKGOTO(wrap_ibv_set_ece(qp, &remQpInfo->ece, &remQpInfo->ece_supported), ret, fail);ncclIbDev* ibDev = ncclIbDevs + commDev->base.ibDevN;remDevInfo->mtu = std::min(remDevInfo->mtu, ibDev->portAttr.active_mtu);NCCLCHECKGOTO(ncclIbRtrQp(qp, &commDev->base.gidInfo, remQpInfo->qpn, remDevInfo, false), ret, fail);NCCLCHECKGOTO(ncclIbRtsQp(qp), ret, fail);}if (link_layer == IBV_LINK_LAYER_ETHERNET ) { // RoCEfor (int q = 0; q < comm->base.nqps; q++) {struct ncclIbQp* qp = comm->base.qps + q;int ibDevN = comm->devs[qp->devIndex].base.ibDevN;struct ncclIbDev* ibDev = ncclIbDevs + ibDevN;INFO(NCCL_NET,"NET/IB: IbDev %d Port %d qpn %d set_ece={supported=%d, vendor_id=0x%x, options=0x%x, comp_mask=0x%x}",ibDevN, ibDev->portNum, remMeta.qpInfo[q].qpn, remMeta.qpInfo[q].ece_supported, remMeta.qpInfo[q].ece.vendor_id, remMeta.qpInfo[q].ece.options, remMeta.qpInfo[q].ece.comp_mask);}}comm->base.nDataQps = std::max(comm->base.vProps.ndevs, comm->base.nRemDevs);comm->base.ready = 1;stage->state = ncclIbCommStateConnected;stage->offset = 0;ib_send_ready://告诉recv端，send端已经read，recv端会一直等这个消息，本质上就是一次同步NCCLCHECKGOTO(ncclSocketProgress(NCCL_SOCKET_SEND, &comm->base.sock, &comm->base.ready, sizeof(int), &stage->offset), ret, fail);if (stage->offset != sizeof(int)) return ncclSuccess;*sendComm = comm;
exit:if (stage->buffer) free(stage->buffer);stage->state = ncclIbCommStateStart;return ret;
fail:free(comm);goto exit;
}

上面代码较多，其实现的内容为：1）从recv端拿到监听地址，然后初始化一个sock和recv端建立TCP连接；2）通过TCP发送本rank使用的net设备信息，接收recv端发过来的net信息；3）通过net信息决定使用多少QP建链；4）创建QP并将信息发送给recv；5）接收recv发过来的QP信息和sizefifo信息；6）完成QP建链绑定；7）注册FIFO mr产生的相关信息发给recv；8）在GPU上分配 NCCL_PROTO_LL128 和 NCCL_PROTO_SIMPLE 类型发送缓存区；9）在host上分配head、tail以及NCCL_PROTO_LL类型发送缓存区；10）将head、tail、发送缓存区等信息填写到GPU内存。

整体图解

直接看代码可能比较难以理解，还是用图来解释清晰点。
后续三node且每个node一个rank来举例，都支持GDR。

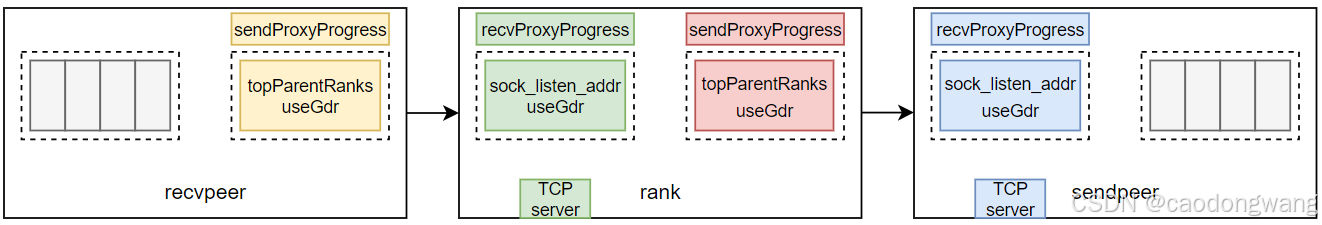

recv/send执行完 CanConnect() -> Setup() -> ProxySetup()之后，结果如下图所示。

rank执行recvSetup -> ncclProxyConnect -> recvProxySetup -> ncclIbListen之后，创建了一个recvProxyProgress线程（用来协调rdma、kernel收发数据），同时也建立了一个TCP监听服务，将监听地址和useGdr标志放入到通道数据中，准备交换。
rank执行sendSetup -> ncclProxyConnect -> sendProxySetup之后，创建了一个sendProxyProgress线程（用来协调rdma、kernel收发数据），然后将rank顶层父节点的全局rank id和useGdr标志放入到通道数据中，准备交换。

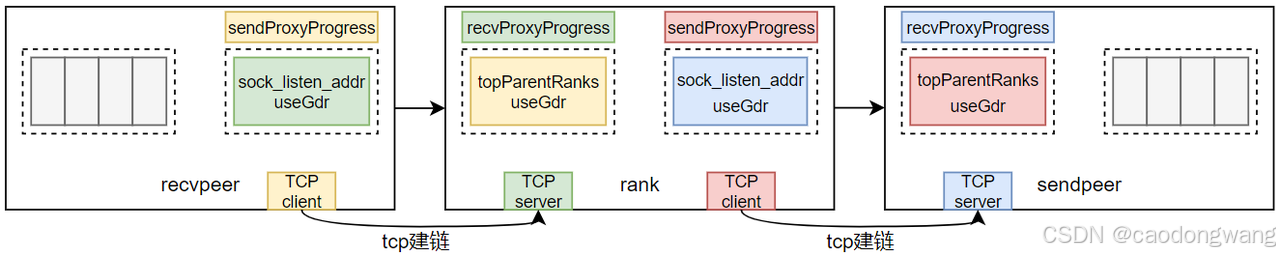

交换数据之后，建立socket连接。

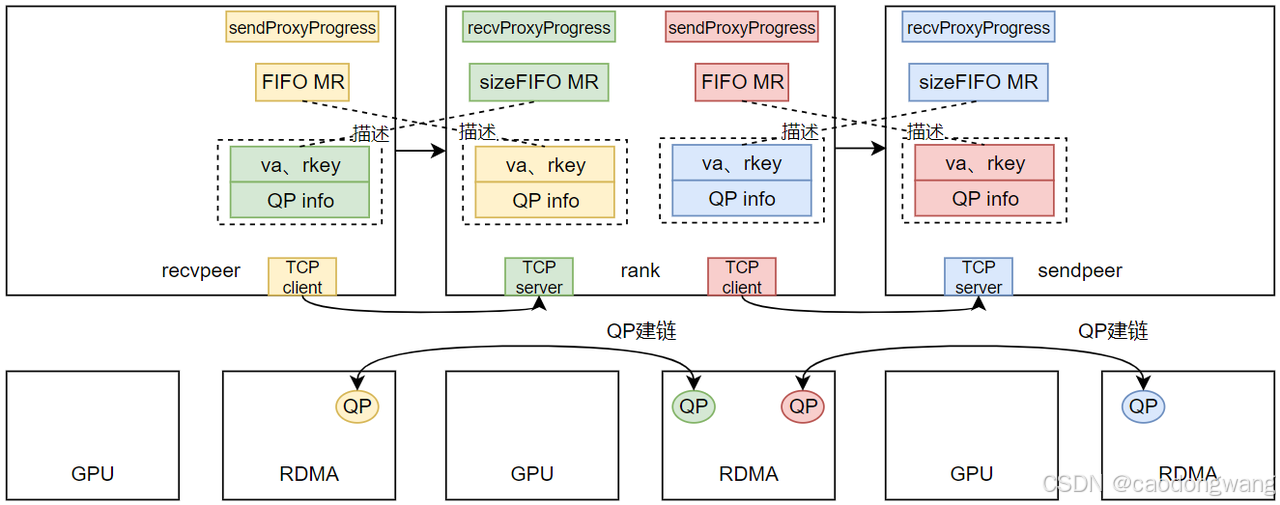

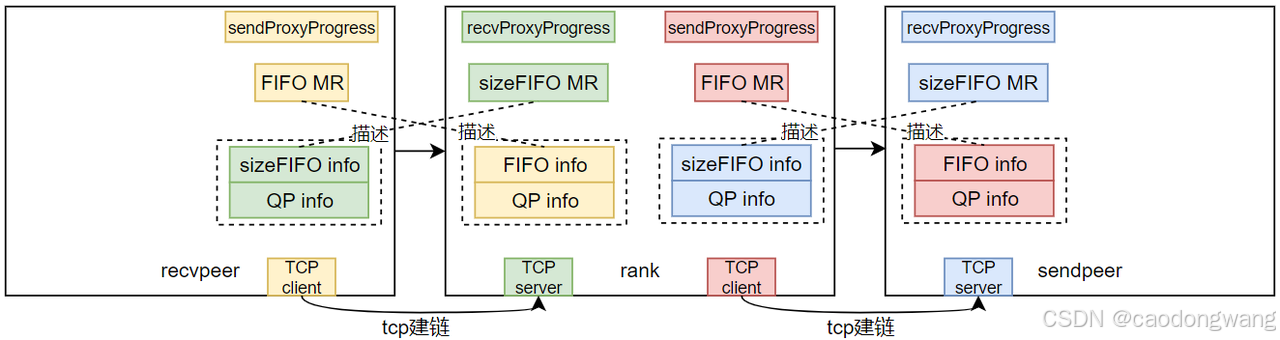

TCP建立之后就可以交换QP、FIFO相关数据。作为recv时，需要注册sizeFIFO MR，作为send时，需要注册FIFO MR，并将它们注册后产生的信息和QP信息一起交换给对端，如下图所示。

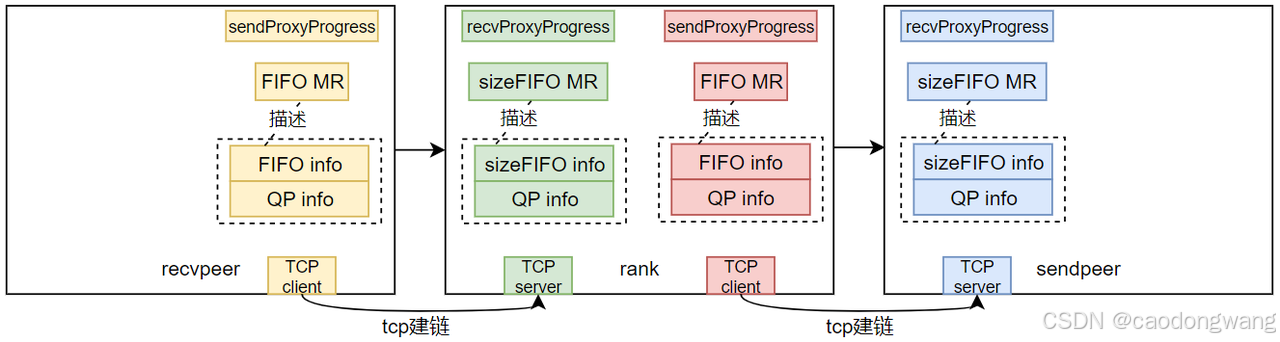

注意，交换不是通过bootstrap网络，而是上述TCP建链通道。rank拿到前后两个rank的QP信息，就可以完成QP建链绑定，如下图所示。

信息交换完毕，QP也完成建链了，那TCP连接就可以关闭了。另外，上面那些FIFO info其实就是MR的va和rkey，这里简化一下。

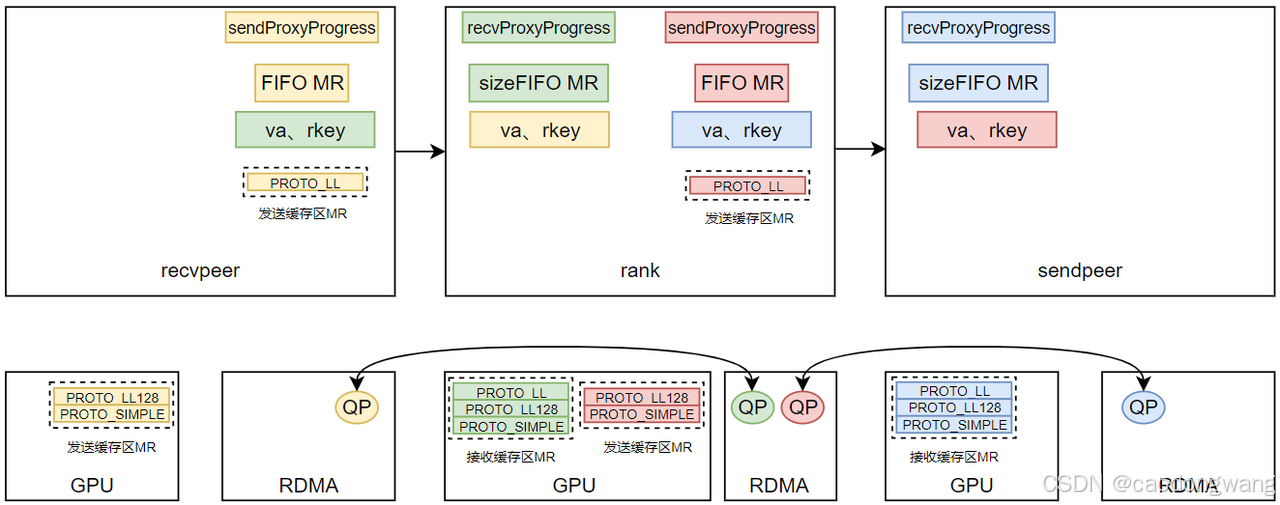

接下来就是准备收发数据的buff了，如下图所示。

对于作为recv端来说，所有的接收缓存区buff都是位于GPU内存。对于作为send端来说，PROTO_LL128和PROTO_SIMPLE两种协议的buff位于GPU内存，而PROTO_LL协议内存则位于host内存。
如同P2P传输数据一样，kernel和代理线程progress也需要head、tail来协调数据收发，如下图所示。

同样是生产者消费者模型，send端GPU kernel产生数据告诉send端ProxyProgress线程，由ProxyProgress线程调用rdma接口将数据传输给recv端ProxyProgress线程，然后recv端ProxyProgress线程告诉recv端kernel有数据产生，最后recv端kernel将数据消费。
