前言

手里运维的业务平台要部署到用户环境，对方是华为910B的机器，单位目前没有，只有老的arm64架构的机器，反正先适配着，防止后续现抓麻爪了。
这一章记录rabbitmq-management的适配步骤
我这里使用的rabbtmq-management启动rabbitmq的方式。

一、机器信息获取

1.1 芯片信息

lscpu

Architecture:          aarch64
Byte Order:            Little Endian
CPU(s):                40
On-line CPU(s) list:   0-39
Thread(s) per core:    1
Core(s) per socket:    40
Socket(s):             1
NUMA node(s):          1
Model:                 1
CPU max MHz:           2500.0000
CPU min MHz:           600.0000
BogoMIPS:              40.00
L1d cache:             unknown size
L1i cache:             unknown size
L2 cache:              unknown size
L3 cache:              unknown size
NUMA node0 CPU(s):     0-39
Flags:                 fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid asimdrdm

1.2 操作系统版本信息

hostnamectl

   Static hostname: datax3Icon name: computer-serverChassis: serverMachine ID: 570e6fdcda17439886d6364f7a3ba217Boot ID: c6b431eb288d4de4b62a823a7f383e7bOperating System: CentOS Linux 7 (AltArch)CPE OS Name: cpe:/o:centos:centos:7Kernel: Linux 4.14.0-115.el7a.0.1.aarch64Architecture: arm64

---

二、版本获取

目前在x86上使用的nacos版本是rabbitmq:3.13.2-management版本
经过查询，在arm64v8找到了可用的，但是cluster-operator没有找到可用的，得自己打才行

# dockerpull.cn是国内加速源
docker pull dockerpull.cn/arm64v8/rabbitmq:3.13.2-management-alpine
# 查看架构支持信息
docker inspect  dockerpull.cn/arm64v8/rabbitmq:3.13.2-management-alpine |grep Arch"Architecture": "arm64",

三、准备自己构建cluster-operator镜像

3.1 代码下载

github地址：https://github.com/rabbitmq/cluster-operator

wget https://github.com/rabbitmq/cluster-operator/archive/refs/tags/v2.9.0.zip
unzip v2.9.0.zip

3.2 基础镜像下载

docker pull dockerpull.cn/arm64v8/golang:1.21
docker pull dockerpull.cn/arm64v8/alpine:latest
docker pull dockerpull.cn/scratch

3.3 进行构建

由于构建中遇到的问题，最终版本的Dockerfile放在文章末尾

docker build -t rabbitmqoperator/cluster-operator:arm64-2.9.0 .

四、测试使用

测试使用

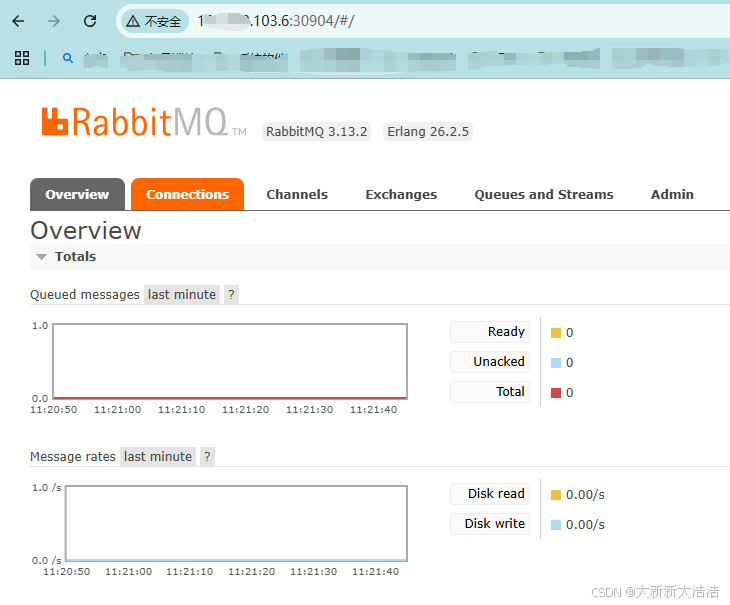

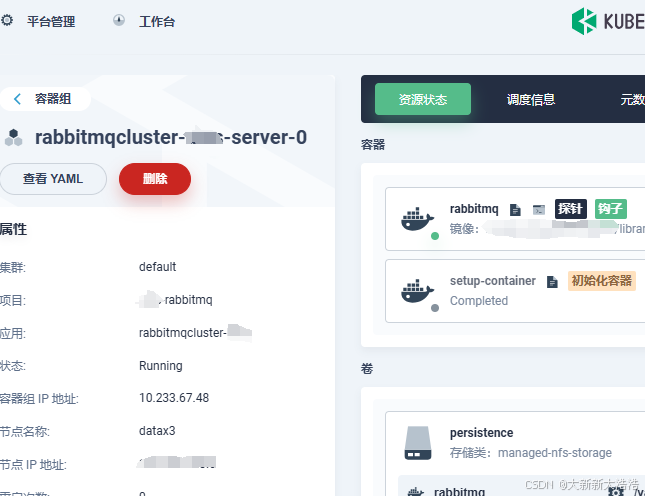

建立pod正常，访问rabbitmq页面正常

五、遇到的问题：镜像构建中遇到的问题

5.1 dial tcp 142.250.217.81:443: i/o timeout

异常提示：

122.1 go: github.com/BurntSushi/toml@v1.2.1: Get "https://proxy.golang.org/github.com/%21burnt%21sushi/toml/@v/v1.2.1.mod": dial tcp 142.250.217.81:443: i/o timeout

处理方法：改成国内代理

RUN ENV GOPROXY https://goproxy.io,direct

5.2 This download does NOT match an earlier download recorded in go.sum.

异常提示：

verifying github.com/emicklei/go-restful/v3@v3.11.1: checksum mismatch
This download does NOT match an earlier download recorded in go.sum.

处理方法：增加命令

RUN go clean -modcache
RUN go mod tidy

5.3 缺包问题的处理

异常提示：

2.200 /go/pkg/mod/k8s.io/api@v0.29.2/apps/v1/generated.pb.go:27:2: missing go.sum entry for module providing package github.com/gogo/protobuf/proto (imported by k8s.io/api/apps/v1); to add:
2.200   go get k8s.io/api/apps/v1@v0.29.2

处理方法：将需要的包手动get进去

RUN go get k8s.io/api@v0.29.2

六、cluster-operator的dockerfile

# Build the manager binary
FROM  dockerpull.cn/arm64v8/golang:1.21 as builderWORKDIR /workspace# Dependencies are cached unless we change go.mod or go.sum
COPY go.mod go.mod
#COPY go.sum go.sum
RUN go clean -modcache
RUN go mod tidy
ENV GOPROXY https://goproxy.io,direct
RUN go mod download
RUN go get k8s.io/api@v0.29.2
RUN go get k8s.io/api/apps/v1@v0.29.2
RUN go get k8s.io/api/core/v1@v0.29.2
RUN go get k8s.io/apimachinery/pkg/util/strategicpatch@v0.29.2
RUN go get k8s.io/apimachinery/pkg/util/mergepatch@v0.29.2
RUN go get k8s.io/apimachinery/pkg/util/dump@v0.29.2
RUN go get sigs.k8s.io/controller-runtime/pkg/scheme@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/client@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/metrics/server@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/certwatcher@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/webhook/admission@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/webhook/conversion@v0.17.3
RUN go get k8s.io/client-go/tools/clientcmd@v0.29.2
RUN go get k8s.io/client-go/tools/remotecommand@v0.29.2
RUN go get k8s.io/apimachinery/pkg/util/httpstream/spdy@v0.29.2
RUN go get k8s.io/apimachinery/pkg/util/proxy@v0.29.2
RUN go get sigs.k8s.io/controller-runtime/pkg/log/zap@v0.17.3
RUN go get sigs.k8s.io/controller-runtime/pkg/cache@v0.17.3
RUN go get k8s.io/client-go/tools/cache@v0.29.2
RUN go get k8s.io/client-go/tools/record@v0.29.2
RUN go get sigs.k8s.io/controller-runtime/pkg/config/v1alpha1@v0.17.3
RUN go get gopkg.in/ini.v1# Copy the go source
COPY main.go main.go
COPY api/ api/
COPY controllers/ controllers/
COPY internal/ internal/
COPY pkg/ pkg/# Build
ARG TARGETOS
ARG TARGETARCH
ENV GOOS linux
ENV GOARCH arm64
RUN CGO_ENABLED=0 GO111MODULE=on go build -a -tags timetzdata -o manager main.go# ---------------------------------------
FROM dockerpull.cn/arm64v8/alpine:latest as etc-builderRUN echo "rabbitmq-cluster-operator:x:1000:" > /etc/group && \echo "rabbitmq-cluster-operator:x:1000:1000::/home/rabbitmq-cluster-operator:/usr/sbin/nologin" > /etc/passwdRUN apk add -U --no-cache ca-certificates# ---------------------------------------
FROM scratchARG GIT_COMMIT
LABEL GitCommit=$GIT_COMMITWORKDIR /
COPY --from=builder /workspace/manager .
COPY --from=etc-builder /etc/passwd /etc/group /etc/
COPY --from=etc-builder /etc/ssl/certs/ca-certificates.crt /etc/ssl/certs/ca-certificates.crtUSER 1000:1000ENTRYPOINT ["/manager"]
