STM32F103C8T6 HAL库 U盘模式(MSC)

news 来源：原创 2025/4/23 6:34:05

前言

简简单单，将手中的单品集模拟成U盘，中间经历过很多坑，也算是摸索透了，记录一下开发，防止发生相同的问题。

正文

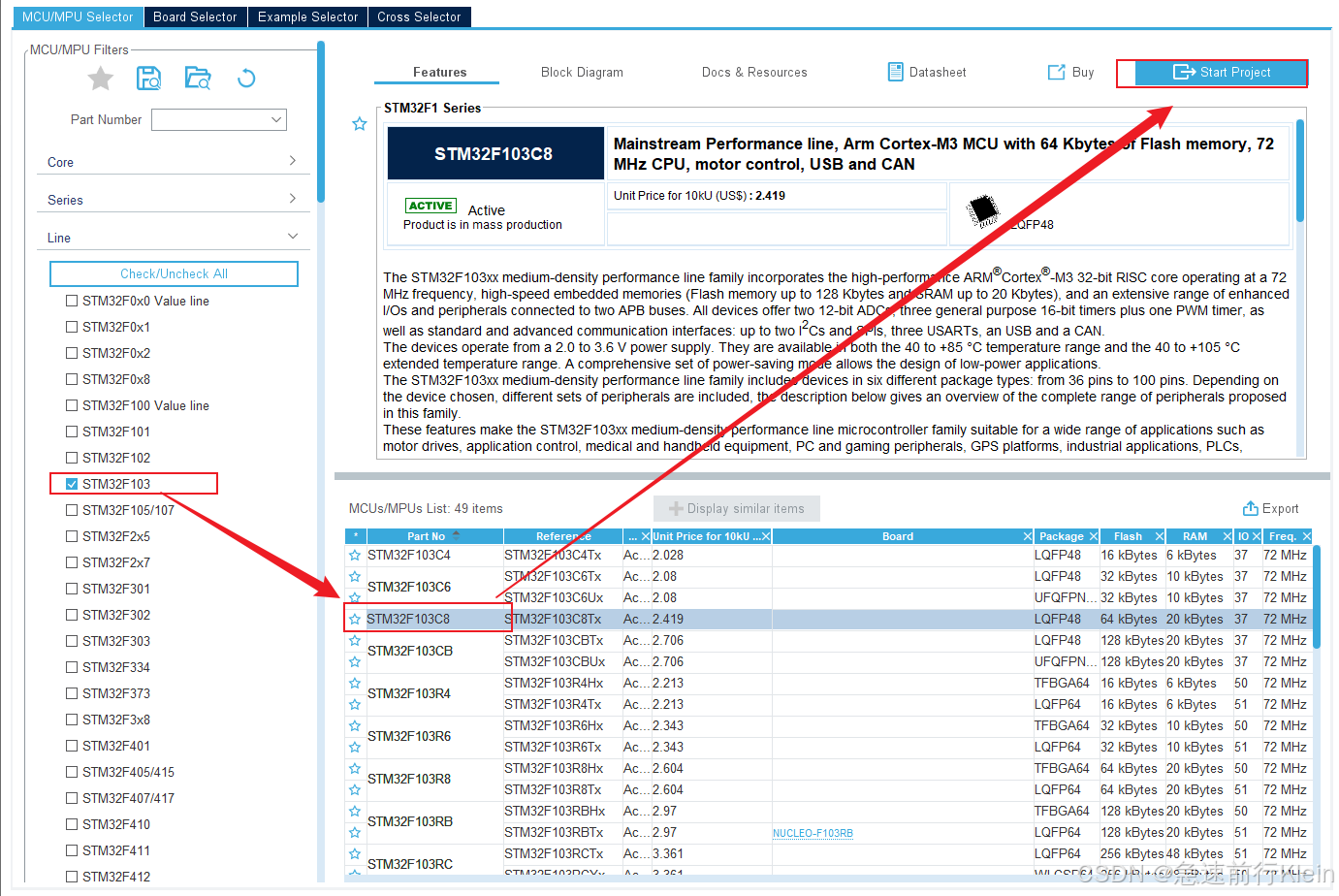

1.选择芯片

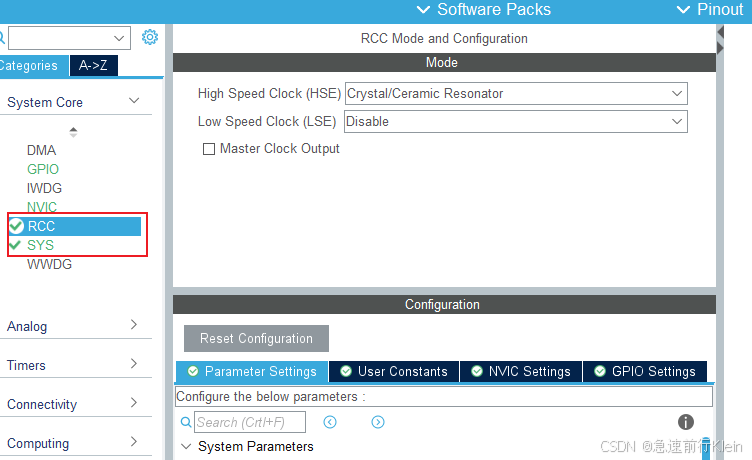

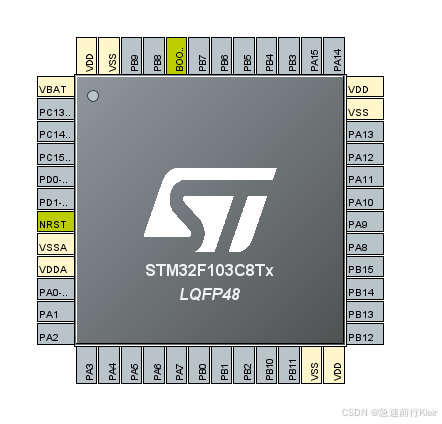

2.正常配置调试和外部时钟（sys->serial wirte, rcc->hse->crystal）

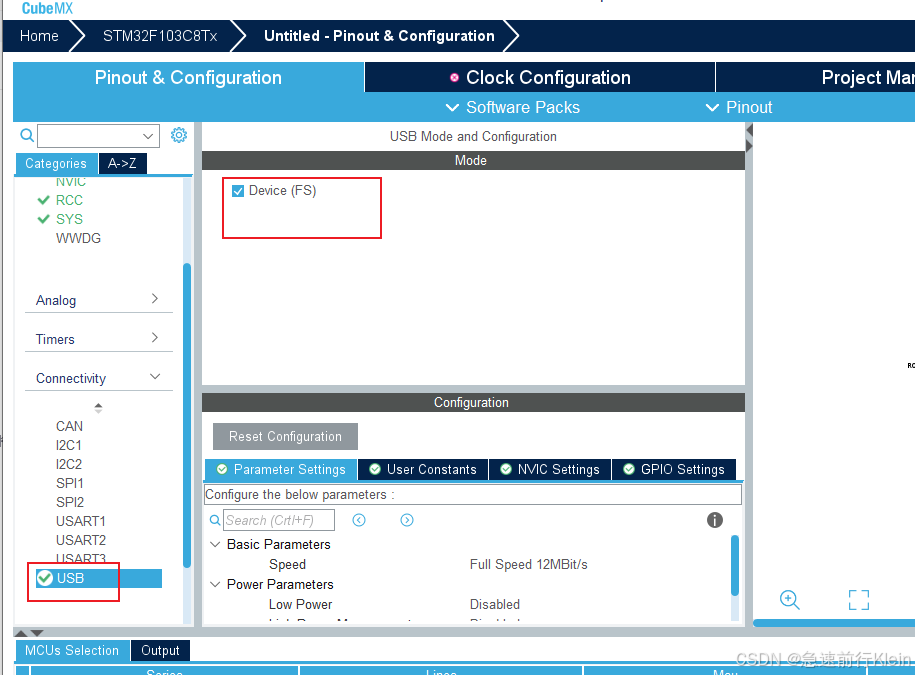

3.打开usb

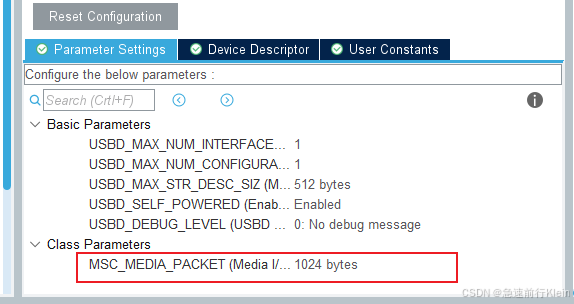

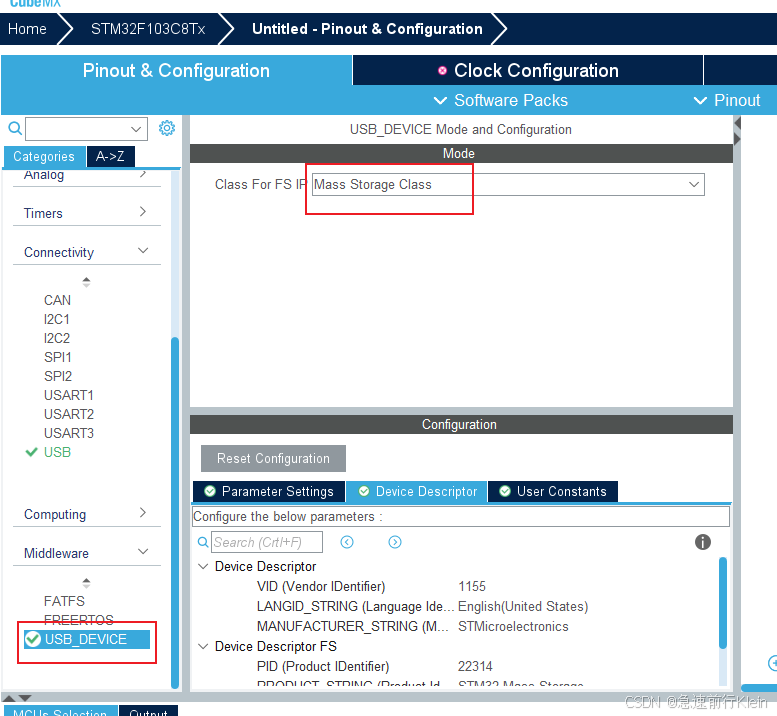

4.选择USB模式，packet = 1024，

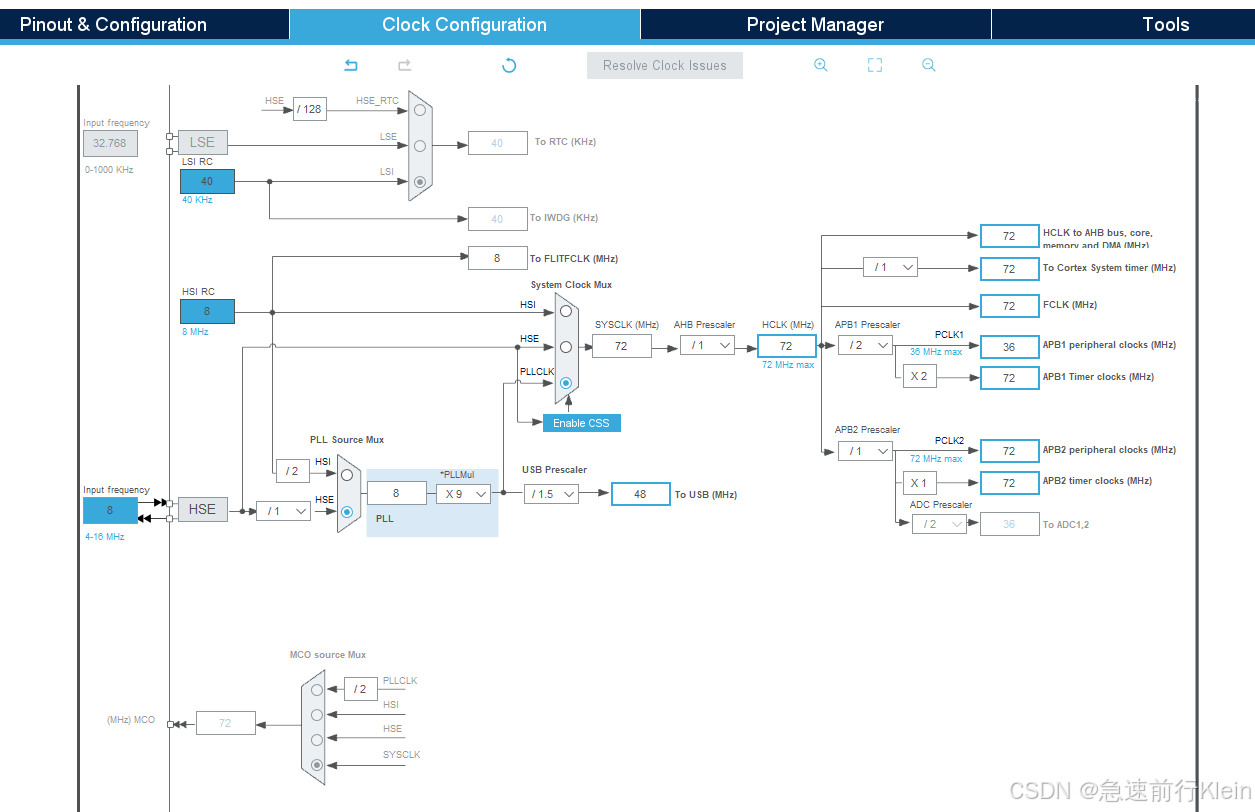

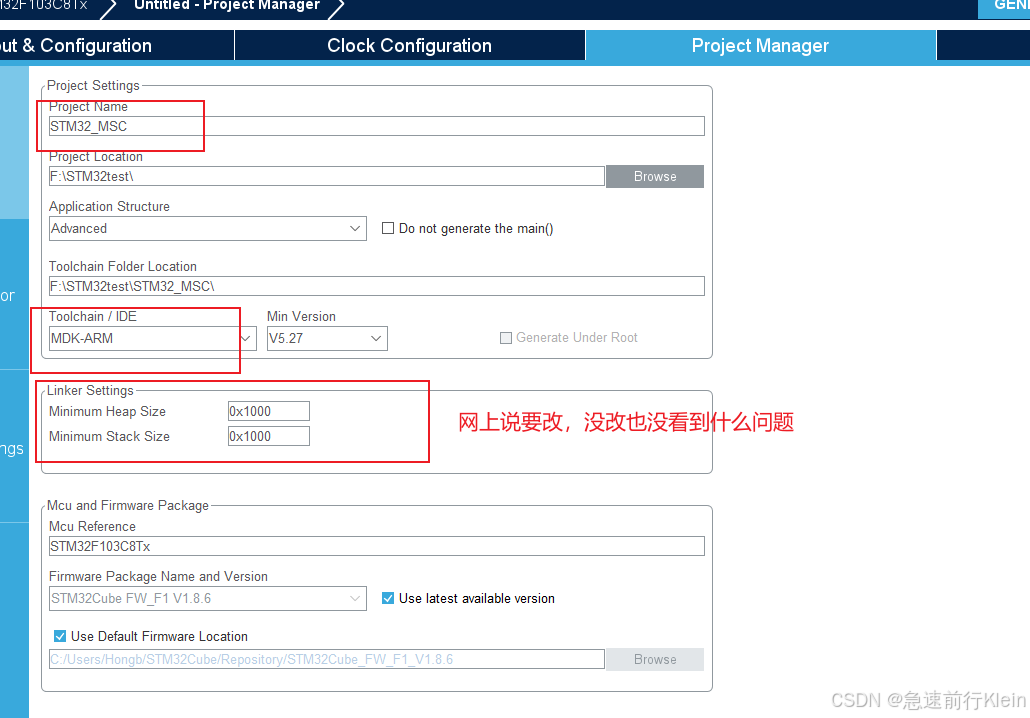

5.配置时钟（打开USB会报错，关掉重新手动配置就好了）

6.生成工程

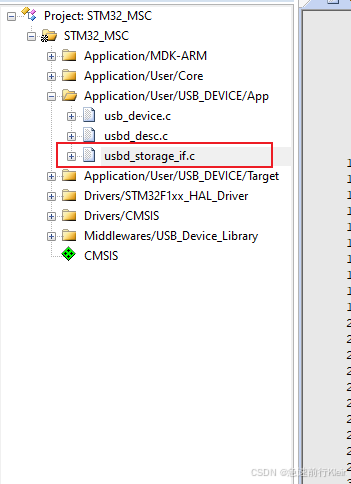

7.添加代码，只需要修改这一个文件就可以了，

8.参数含义

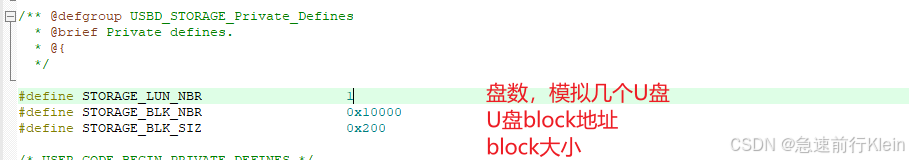

//这三个参数需要根据flash分配，整个flash除了程序外就是U盘大小

程序在0x08000000地址，但是存储不能从这个地址开始，需要后移0x5000(根据程序大小配置，不不能出现半个block的情况，整数就行了)

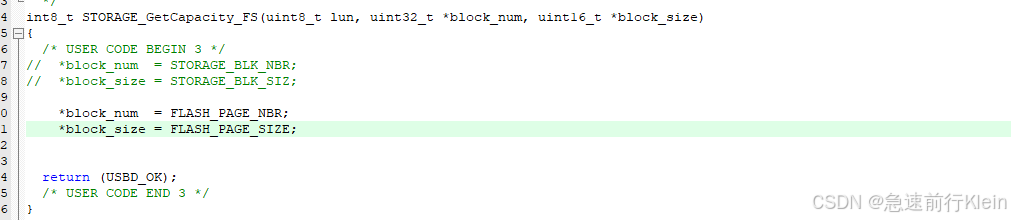

9.设置识别的参数，我重新定义了2个参数，也可以修改原来的大小。FLASH_PAGE_SIZE直接用就行

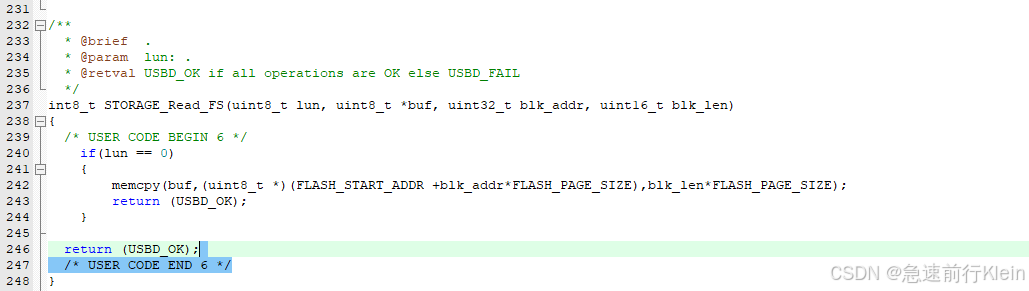

10.读取方法，这个让电脑可以读取U盘的相关信息，这个时候可以识别到U盘。用memcpy的方法，将目标内容复制到buf内

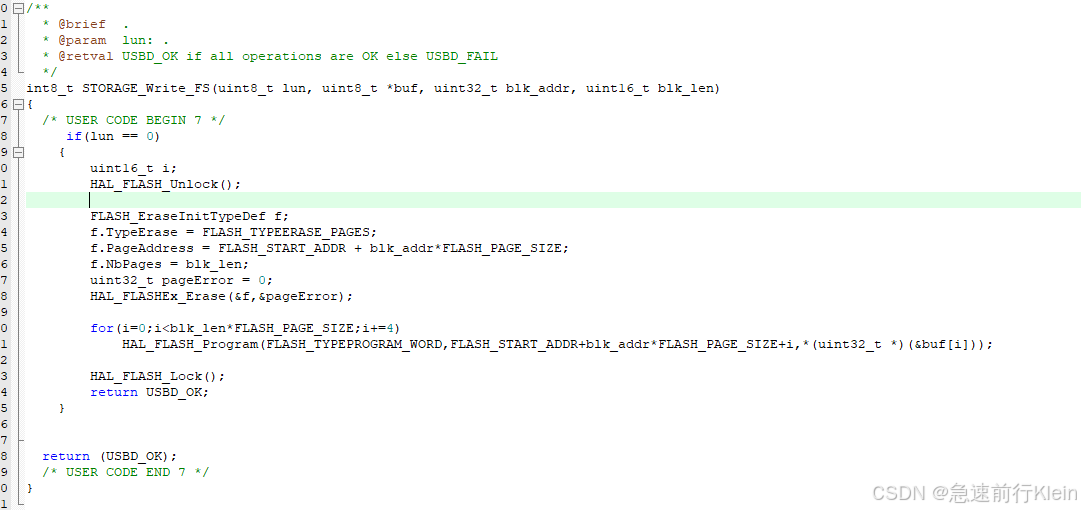

11.写入方法，网上都是直接使用memcpy复制的方法直接反向复制，但是我这会出现问题，在最后格式化U盘的时候会出现无法格式化U盘（怀疑是flash锁造成的）；我这里使用对内部flash的读写的方法

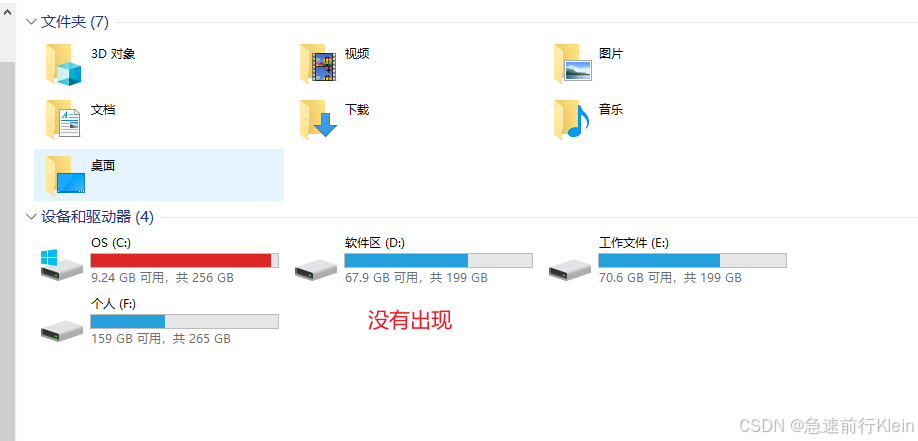

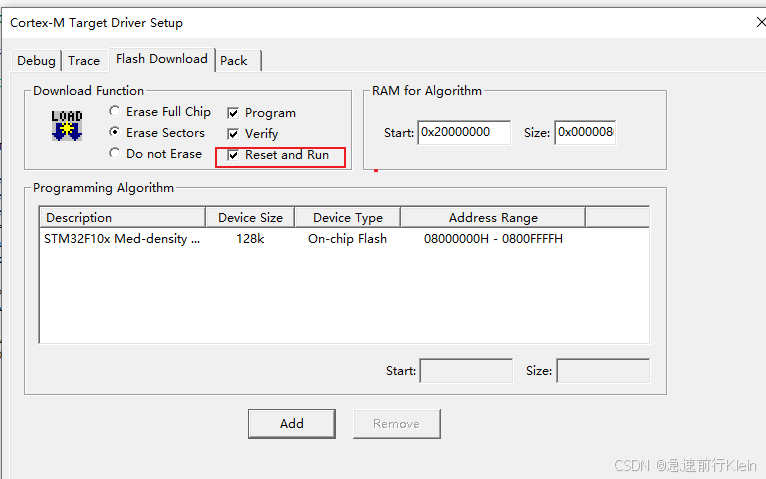

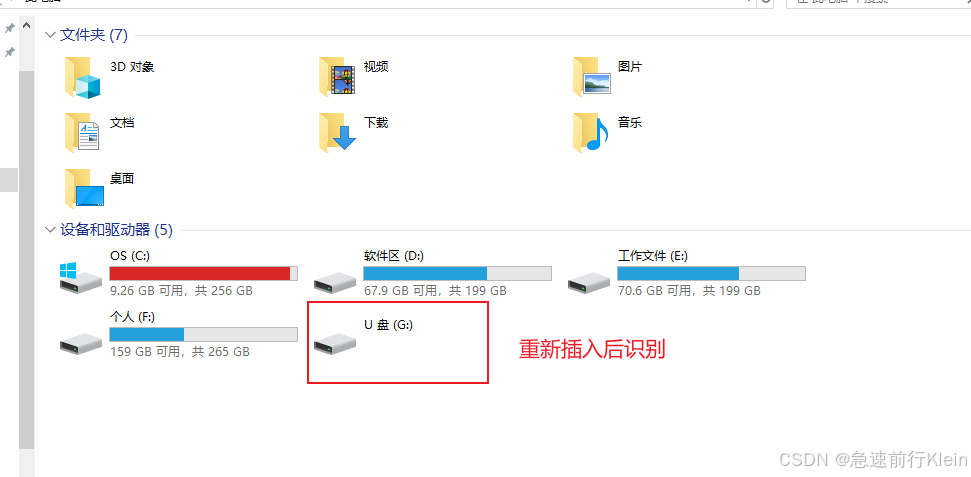

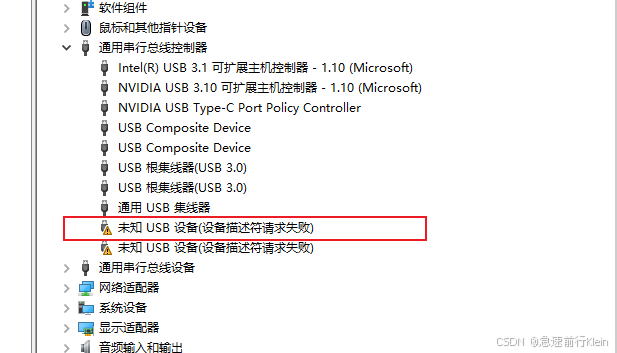

12.直接编译，下载到STM内，如果识别不到则重新插入电脑。

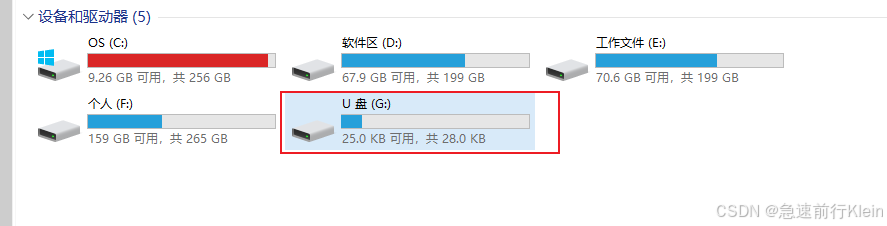

13.格式化U盘，然后就可以正常使用

代码

直接全部复制过来，不想自己手动敲（累）,就上面那几个地方，其他没变。
